product introduction

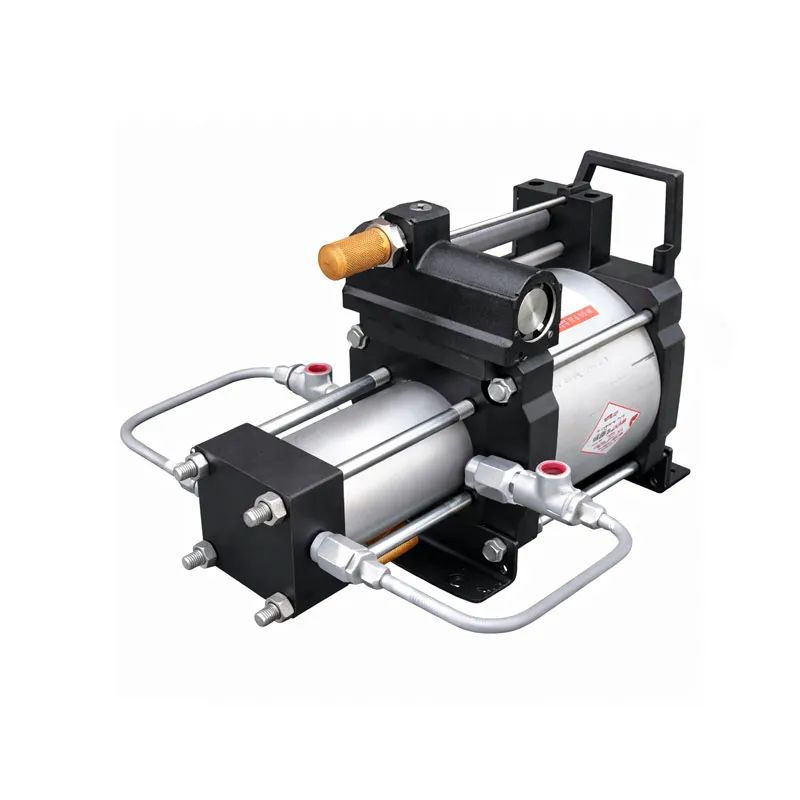

The Air Booster Pump is designed to work in environments where the original compressed air system is unable to meet the required pressure. This pump can increase the air pressure of the working system by 2 to 5 times, making it ideal for situations that need a boost in air pressure. The pump works by using compressed air from the existing system, and it is capable of operating continuously for extended periods of time without needing external power.

Pump housing is made from durable aluminum alloy or stainless steel, ensuring a robust structure. Additionally, all seals are imported for enhanced performance. These pumps are typically used in small household electrical appliances, bottle blowing in the injection molding industry, CNC machine tools, and more, serving functions such as air source boosting and voltage stabilization.

Get a Quote

Product Description

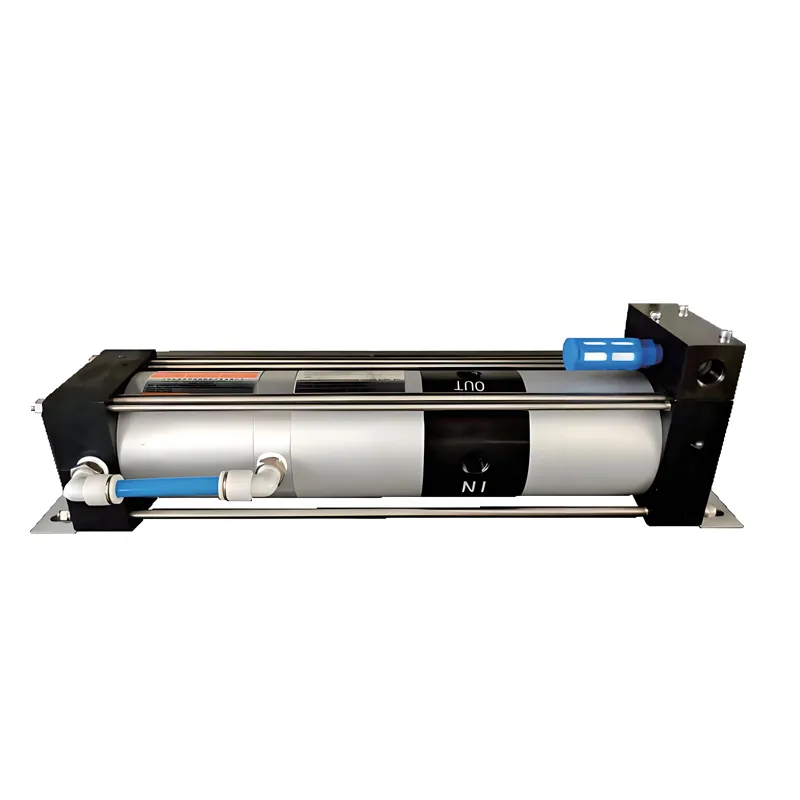

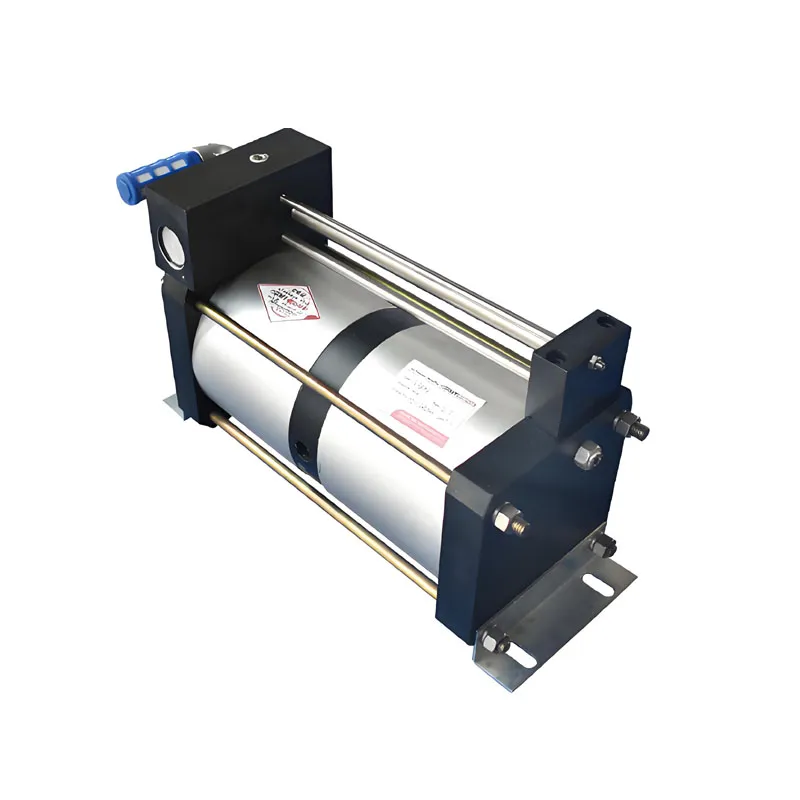

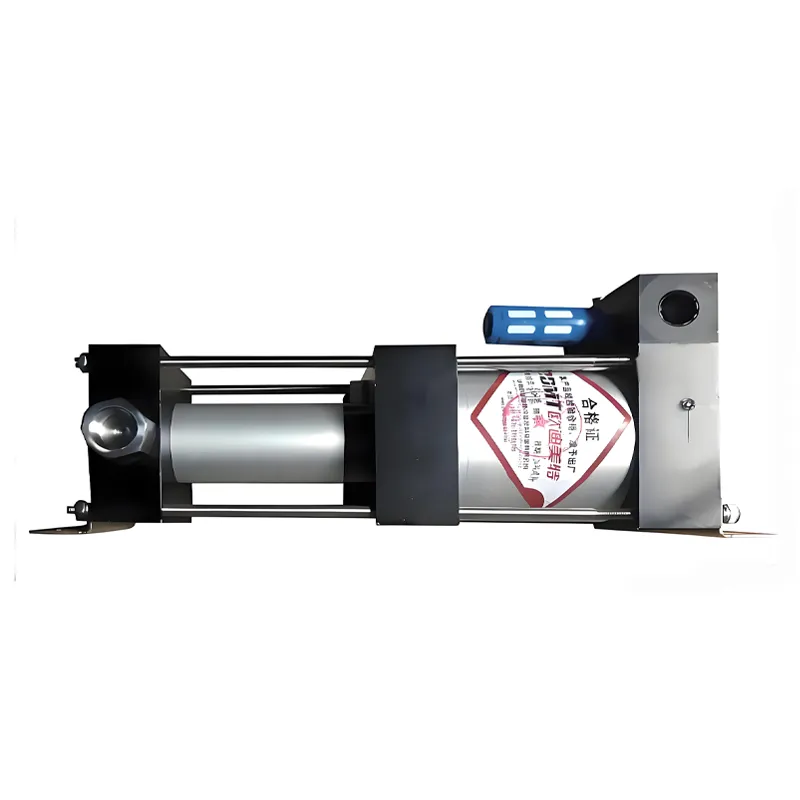

The Air Booster Pump is a piston-type pump that uses compressed air to increase the air pressure in a system. Its operation principle involves compressing air, which is then used to amplify the pressure through the pump. This allows it to meet the needs of systems where air pressure needs to be amplified for various processes, such as in household appliances, injection molding, and CNC machinery.

The pump is simple to maintain and easy to operate, with minimal upkeep required. It works efficiently over long durations without failure, making it ideal for consistent use in both industrial and small-scale operations. This pump is known for its durable design, featuring high-quality materials that ensure longevity and reliability.

air booster pump

Product Model	MAB02	MAB03	MAB04	GAB02	GAB05
Pressure Ratio	2:1	3:1	4:1	2:1	5:1
Minimum Gas Inlet Pressure PA bar	1	1	1	1	1
Maximum Gas Inlet Pressure PA bar	8	8	8	8	50
Gas Outlet Pressure PB bar	2PL	3PL	4PL	2PL	5PL
Maximum Gas Outlet Pressure PB bar	16	24	32	16	40
Air Drive Pressure PL bar	1-8	1-8	1-8	1-8	1-8
Drive Air Interface Size	ZG3/8″	ZG3/8″	ZG3/8″	ZGI 1/2″	ZGI 1/2″
Medium Inlet Size	ZG3/8″	ZG3/8″	ZG3/8″	ZGI 1/2″	ZGI 1/2″
Medium Outlet Size	ZG3/8″	ZG3/8″	ZG3/8″	ZGI 1/2″	ZGI 1/2″
Booster Pump Material	Aluminum Alloy / Stainless Steel	Aluminum Alloy / Stainless Steel	Aluminum Alloy / Stainless Steel	Aluminum Alloy / Stainless Steel	Aluminum Alloy / Stainless Steel
Maximum Operating Frequency: times/min	60	60	60	60	60
Pump Stop Pressure PB	2PL	3PL	4PL	2PL	PA+4PL
Maximum Operating Temperature °C	60	60	60	60	60
Net Weight kg	5	6	4	19	21
Standard Seals	PTFE, FKM, NBR	PTFE, FKM, NBR	PTFE, FKM, NBR	PTFE, FKM, NBR	PTFE, FKM, NBR

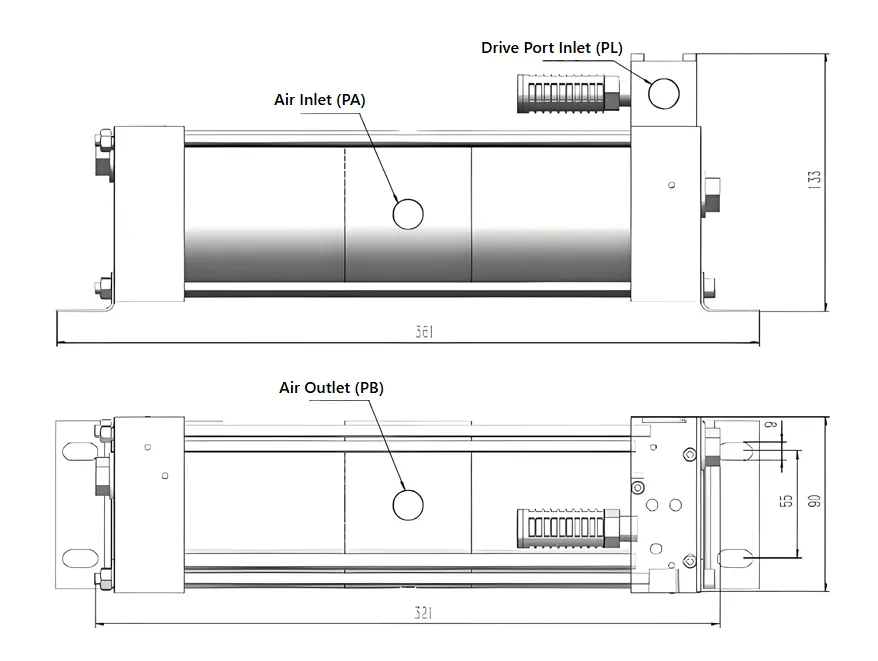

Length mm	361	465	340	457	503
Width mm	90	148	130	172	460
Height mm	133	133	133	273	273

Features and Functions

High Efficiency: The air booster pump is designed to increase the pressure of a working system from 2 to 5 times the original pressure, making it ideal for boosting air pressure in industrial and household applications.
Durable Construction: The housing of the pump is made from high-quality aluminum alloy or stainless steel, offering robust protection against wear and tear.
Simple Maintenance: The pump is designed to require minimal maintenance, providing ease of use and long-term reliability.
Continuous Operation: With an operating time that can stretch over extended periods, the air booster pump is perfect for applications that require consistent performance.
Versatility: The pump works well with various applications, such as air source boosting, machine tool purging, voltage stabilization, and many more.

Product Advantages

Long Life: The high-quality materials used in construction ensure that the pump lasts for a long time, even in demanding environments.
Cost-Effective: The pump is designed to be energy-efficient, providing a cost-effective solution for users who need air pressure amplification.
Easy to Use: With straightforward installation and simple operation, the pump is user-friendly and convenient for both industrial and domestic applications.
High Performance: Its ability to increase air pressure effectively allows it to be used in a wide range of industries, including injection molding, machine tool operations, and others.

If you’d like to learn more about other models, please contact our customer service team.

Our Company Strength

Highlight focuses on the design and manufacturing of pressure testing equipment and fluid control testing systems, supporting both standard models and project-based customization.

16+ years focused on pressure testing equipment and pneumatic boosting systems
Annual production capacity: 1000+ sets of equipment
8000+ customers served
ISO9001-based quality management implementation and stable manufacturing control
Strong engineering team for test bench configuration, fixture matching, and technical support
Export experience supporting international buyers with technical communication and documentation

Additional Sections

Applications

Suitable for a variety of industries such as injection molding, household appliances, laser cutting, CNC machinery, and more.
Used in industrial systems, machine tool maintenance, and various air boosting needs.
Widely applicable for cleaning, purging, and testing operations in diverse work environments.

Support and Service

We offer extensive support for installation, operation, and maintenance of the air booster pump.
Our customer service team is ready to assist with any queries, providing fast and reliable solutions.
