For ordinary pressure gauge calibration, PLC-controlled test systems and professional inspection agencies.

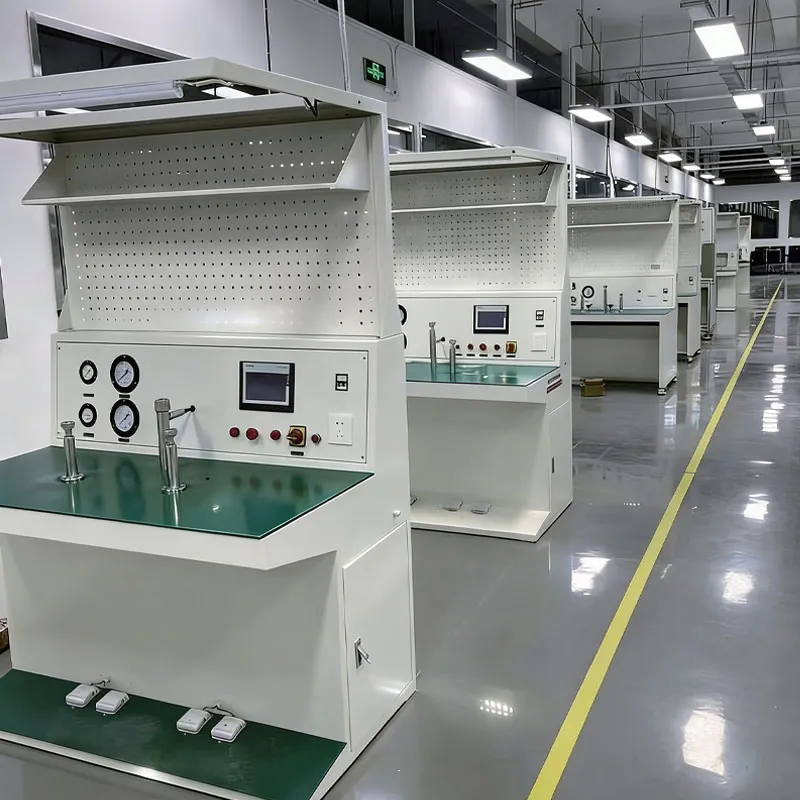

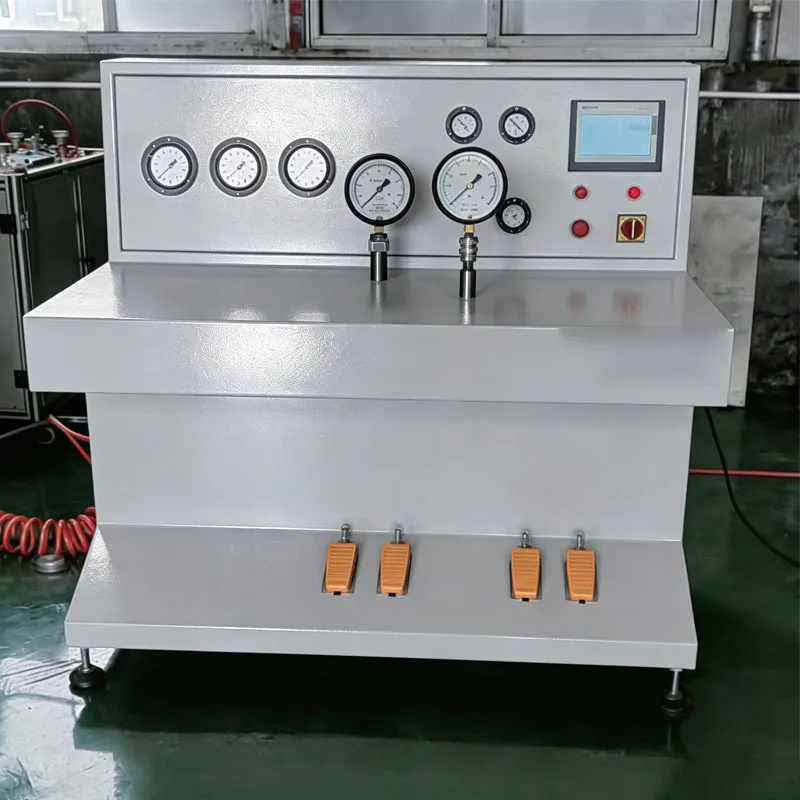

The PLC Controlled Setting Test Point Pressure Gauge Calibration Table is divided into two types according to the test medium:
Gas calibration table
Liquid calibration table
The equipment is designed for the calibration of ordinary pressure gauges.
Each pressure section determines three pressure calibration points according to the pressure gauge range.
The system uses proportional servo precision pressure regulation and closed-loop control, ensuring stable pressure regulation during calibration，calibration table adopts Siemens PLC control with touch screen operation.
The equipment is designed with three stations, including: 1 master station, 2 test stations
Each pressure gauge requires selecting three calibrated pressure points according to the pressure range.
For example:For a pressure gauge with a range of 10 MPa, the calibrated pressure points are 2 MPa, 5 MPa, and 10 MPa.
| Calibration Type | Test Product | Medio de Prueba | Test Pressure Range | Pressure Section / Gauge Range | Pressure Measurement Accuracy | Pressure Control Accuracy | Constant Pressure Accuracy |
| Gas Calibration Table | Ordinary pressure gauge | Compressed air | 0.1–6 MPa | 0.1–0.6 MPa / 0.6–2.5 MPa / 2.5–6 MPa | ±0.1% F.S | ±2% F.S | -2% ~ +2% |
| Liquid Calibration Table | Ordinary pressure gauge | Clean water | 10–60 MPa | 0–10 MPa / 0–16 MPa / 0–25 MPa / 0–40 MPa / 0–60 MPa | ±0.1% F.S | ±2% F.S | -2% ~ +2% |
Highlight se centra en el diseño y la fabricación de equipos de pruebas de presión y sistemas de pruebas de control de fluidos, ofreciendo tanto modelos estándar como personalización basada en proyectos.
