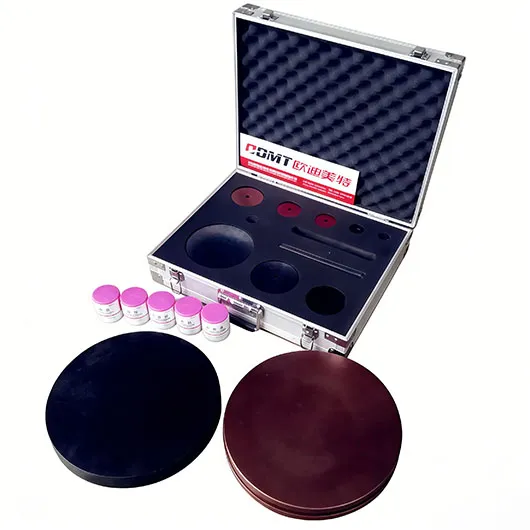

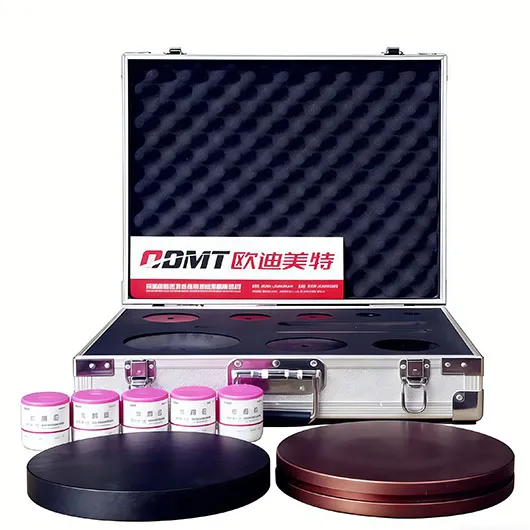

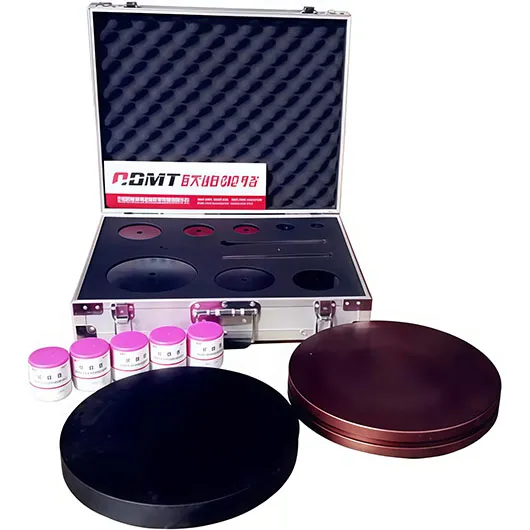

The Relief Valve Grinding Tool consists of a grinding head, grinding plate, and fixed auxiliary tools, forming a complete solution for safety valve maintenance.
The OYM-150T Safety Valve Grinder adopts a dynamic grinding method in which the valve body rotates while the mold is manually guided, ensuring accurate surface fitting and consistent grinding results.
This design retains the precision advantages of manual grinding while significantly reducing labor intensity and improving efficiency. The equipment supports multi-track grinding and is suitable for a wide range of valve sizes and flat metal sealing surfaces.
| Tipo de producto |
Safety Valve Grinding Tool |
| Drive Type |
Single-phase 220V electric drive |
| Grinding Method |
Dynamic valve seat grinding |
| Grinding Tracks |
Multi-track valve disc grinding |
| Lubrication |
Adjustable automatic grinding agent (oil) device |
| Operation Mode |
Manual-assisted electric grinding |
| Application |
Safety valve seat and disc maintenance |
Functions and Features：
- Achieves high precision that cannot be obtained by conventional electric grinders
- Portable design, suitable for on-site operation and maintenance
- Complete tool set including grinding head, grinding plate, and fixed auxiliary tools
- Dynamic grinding of valve seats with accurate surface fitting
- Multi-track grinding for valve discs
- Convenient clamping and specification switching
- Low labor intensity, no special operator training required
- Adjustable automatic grinding oil supply device
- Single-phase 220V civilian electric power supply
Ventajas del producto：
- Higher Precision
Combines manual grinding accuracy with stable electric drive, ensuring reliable sealing surface restoration.
- On-Site Efficiency
Compact and portable, reducing valve disassembly and transportation time.
- Operational Simplicity
Easy setup and operation without specialized training.
- Wide Applicability
Suitable for multiple valve diameters, safety valves, and flat metal sealing surfaces.
Ventajas de nuestra empresa
Highlight se centra en el diseño y la fabricación de equipos de pruebas de presión y sistemas de pruebas de control de fluidos, ofreciendo tanto modelos estándar como personalización basada en proyectos.
- Más de 16 años centrados en equipos de pruebas de presión y sistemas de refuerzo neumático
- Capacidad de producción anual: más de 1.000 equipos
- Más de 8000 clientes atendidos
- Implantación de la gestión de calidad basada en ISO9001 y control estable de la fabricación
- Un sólido equipo de ingeniería para la configuración del banco de pruebas, la adaptación de los dispositivos y la asistencia técnica.
- Experiencia en exportación apoyando a compradores internacionales con comunicación y documentación técnica
Customization & Support：
- Custom grinding heads and fixtures for different valve specifications
- Optional accessories for special valve structures
- Technical guidance for on-site use and maintenance
- Long-term spare parts supply and service support
