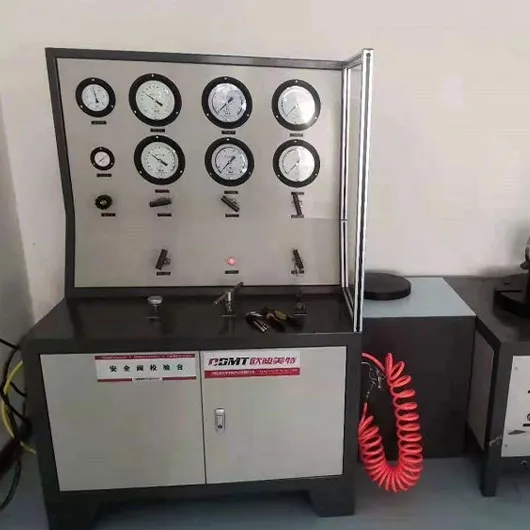

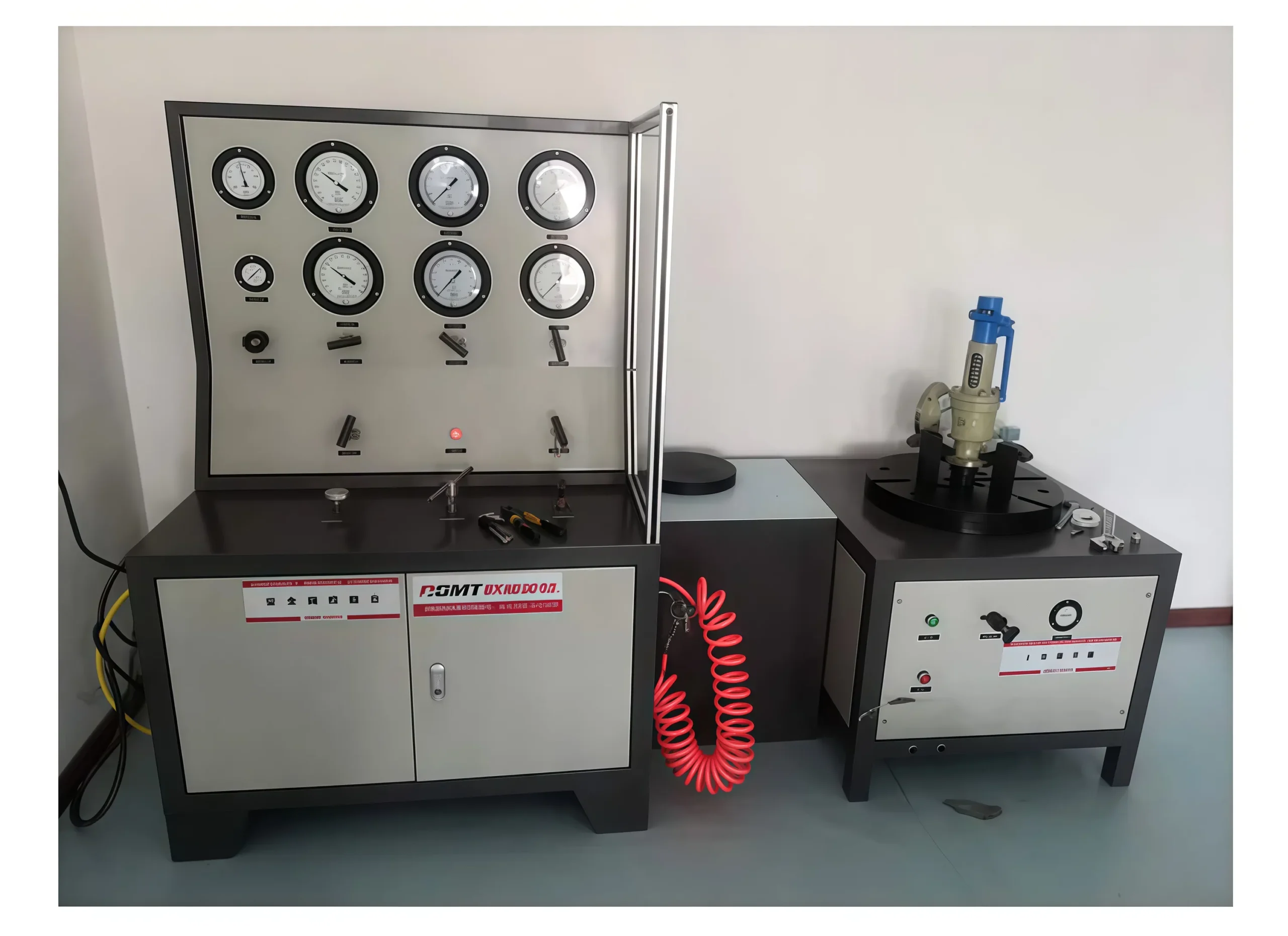

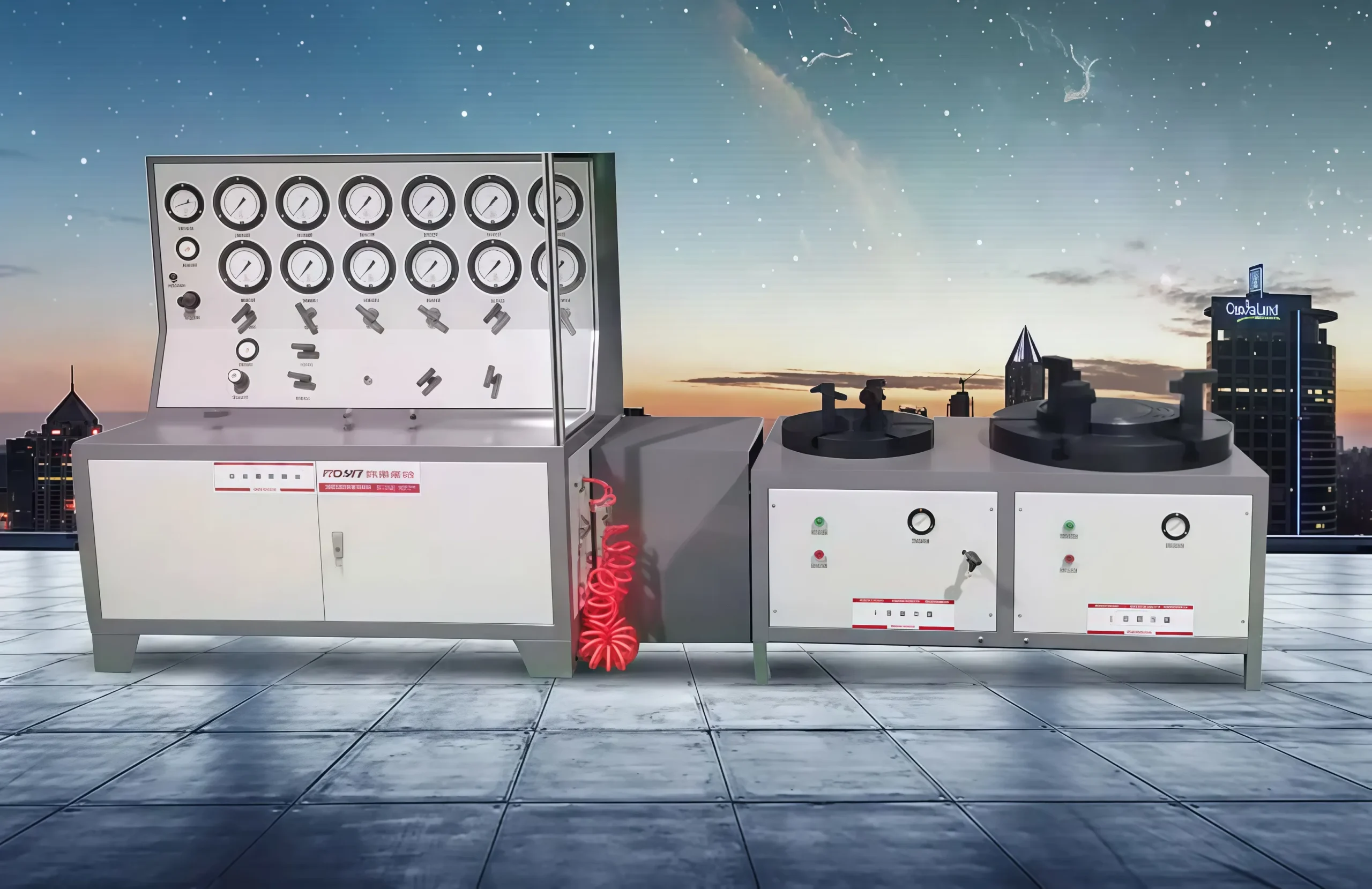

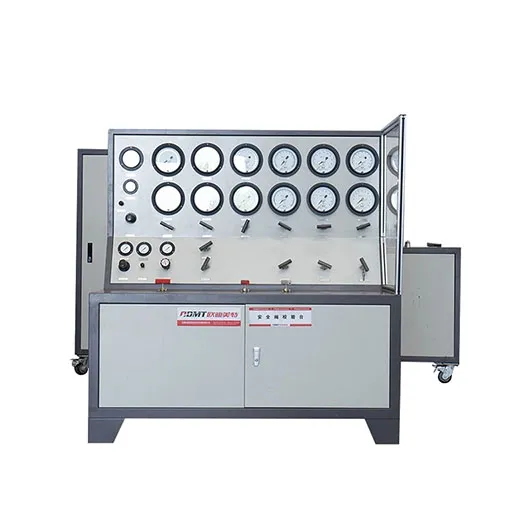

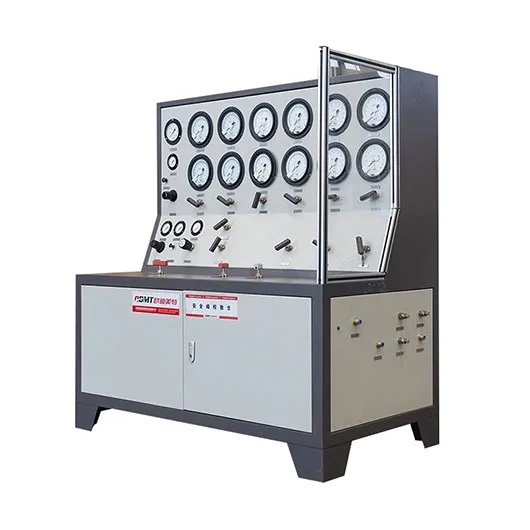

The MAQ Series Safety Valve Calibration Bench adopts an advanced equipment design principle, integrating pneumatic and hydraulic technologies to achieve stable pressure output and secure valve clamping during testing.
In this system, pneumatic liquid pressurization is used as the clamping pressure source, while a pneumatic gas booster pump is applied as the test pressure source.

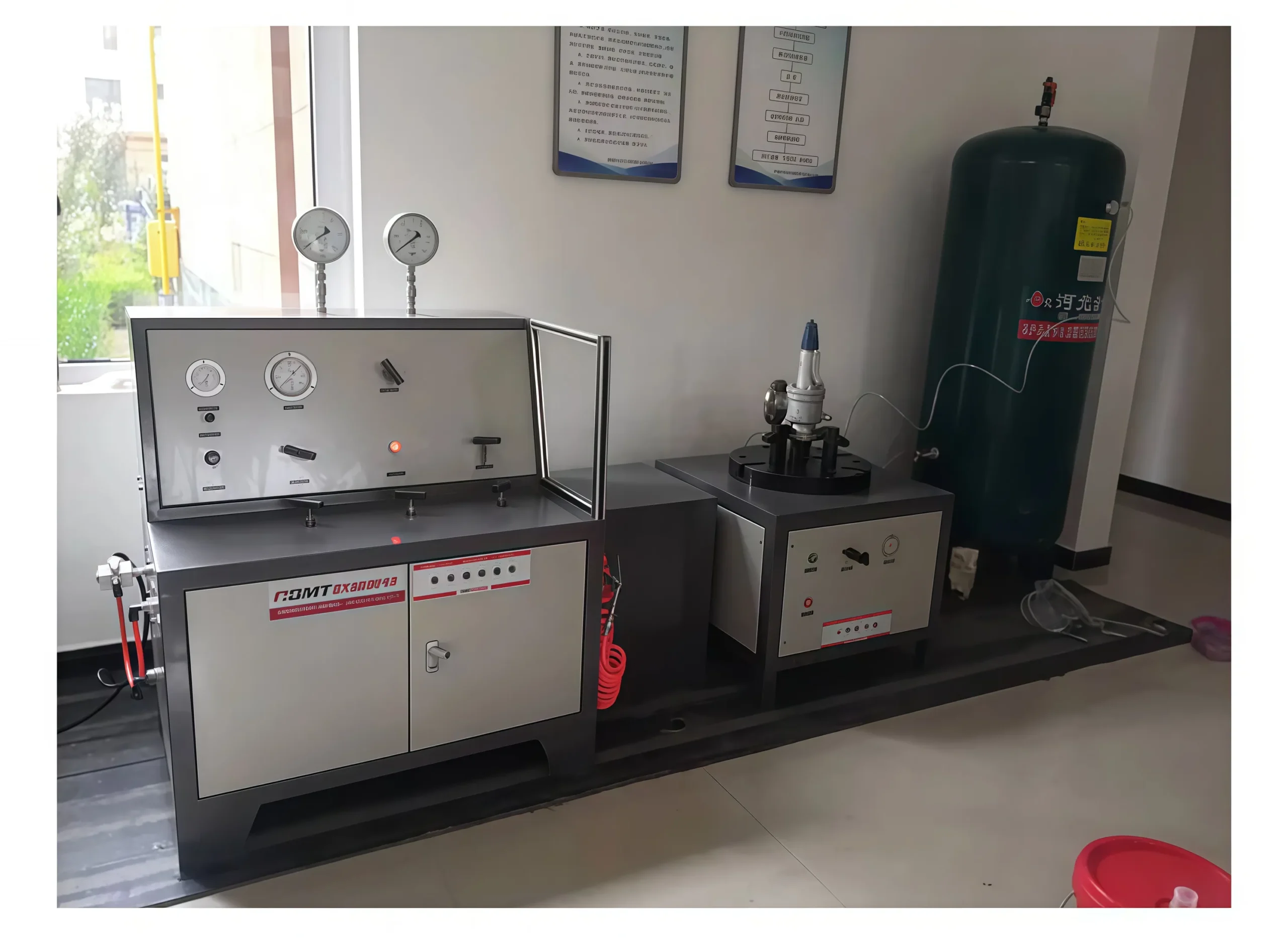

The bench is equipped with a gas cylinder, enabling continuous testing operations without frequent interruption.
During operation, the test pressure can be adjusted smoothly, and the pressure rise process remains stable, which helps operators accurately determine valve opening pressure, reseating pressure, and sealing performance.
| Maximum drift diameter |
DN400 mm |
| Maximum test pressure |
60 MPa |
| Pressure test precision |
Pressure gauge of 0.4 grade (higher precision optional) |
| Test medium |
Nitrogen, compressed air, or clean water |
| Medium type |
Gas or liquid (dual-use system can be produced) |
Functions and Characteristics:
- Advanced design principle combining pneumatic liquid pressurization and gas booster technology
- Pneumatic liquid pressurization used as clamping pressure source
- Pneumatic gas booster pump used as test pressure source
- Equipped with gas cylinder to support continuous testing
- Adjustable test pressure with stable pressure increase
- Wide output pressure range available
- Manual high-pressure valves, pipe fittings, and joints are imported products
- Suitable for most gas and liquid test media
These features ensure stable operation, pressure safety, and reliable testing performance during safety valve calibration.
Product Advantages:
- Stable pressure output improves testing accuracy and repeatability
- Adjustable pressure control allows flexible testing of different valve specifications
- Reliable clamping system ensures safety during high-pressure testing
- Imported high-pressure components enhance system safety and service life
- Supports both gas and liquid testing media, expanding application flexibility
Our Manufacturing Strength:
As a professional manufacturer specializing in pressure testing and pneumatic boosting equipment, we provide:
- Over 14 years of experience in pressure testing equipment design and manufacturing
- Strict quality control throughout production and assembly
- ISO9001 quality management system
- CE certified products for international markets
- Long-term export experience to Europe, North America, South America, and other regions
Applicable Standards & Compliance:
The MAQ Series Safety Valve Calibration Bench is designed and manufactured in accordance with the following standards:
- TSGZF001-2006
- GB/T 12242-2005
- GB/T 12241-2005
- GB/T 12243-2005
These standards ensure the equipment meets the technical requirements for safety valve testing and calibration.
