product introduction

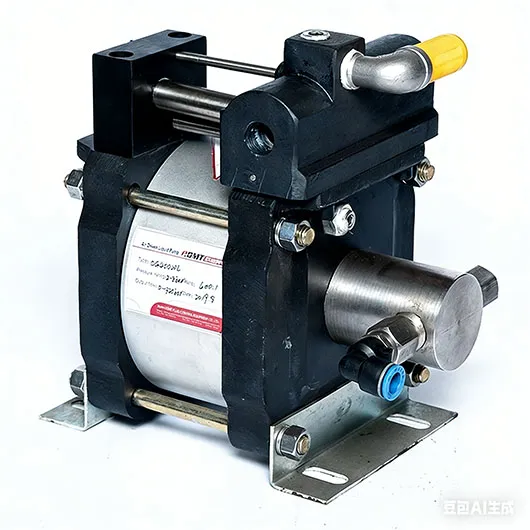

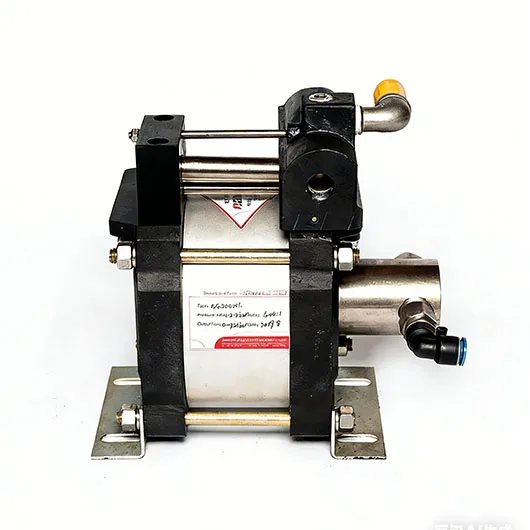

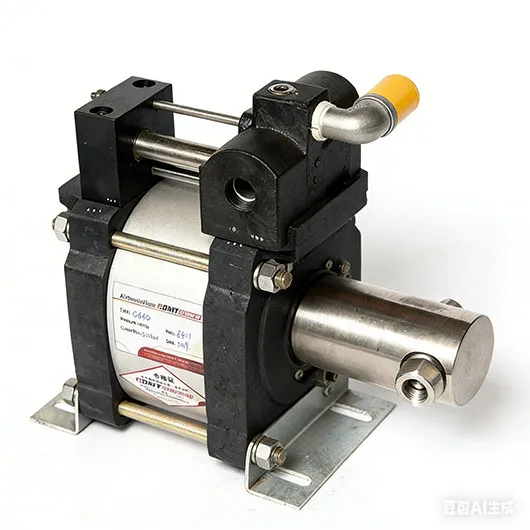

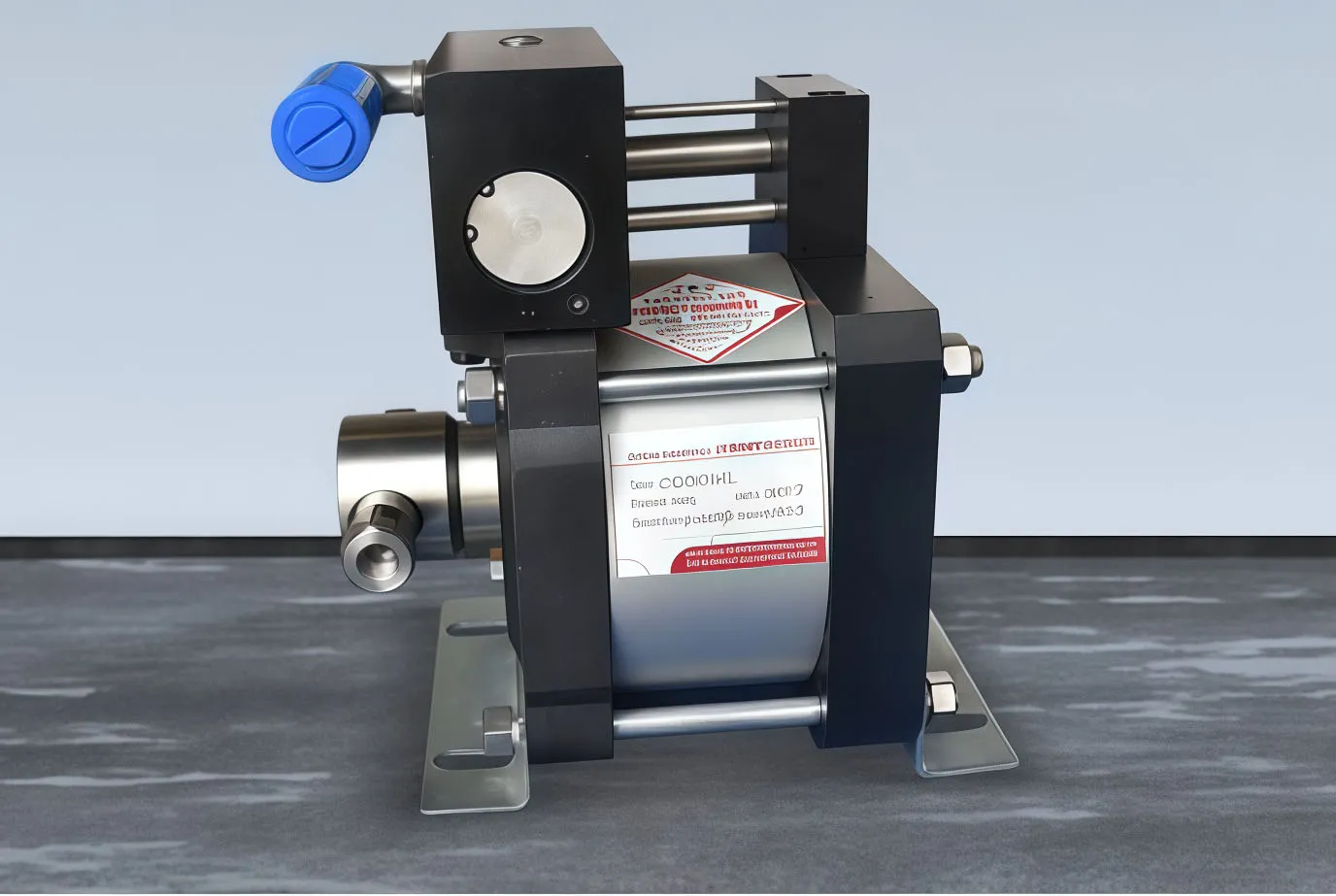

The OG Series Air Driven Liquid Pump is a high-pressure pneumatic liquid pump designed for continuous reciprocating operation driven by compressed air. The pump adopts a single pneumatic non-equilibrium gas distributing valve, enabling automatic to-and-fro motion without electrical power.

With a compact structure and robust mechanical design, the OG Series is suitable for liquid pressurization and transfer under various working conditions.

Get a Quote

Product Description

The OG series pump operates through a single pneumatic non-equilibrium gas distributing valve, which automatically controls the reciprocating movement of the drive piston. This design ensures stable operation and reliable pressure output during continuous working cycles.

The drive components are manufactured from aluminum alloy and treated with black oxidation, providing corrosion resistance, improved surface durability, and a clean industrial appearance.

All fluid-contacting parts are made of carbon steel or stainless steel, selected according to the working medium. The pump is equipped with a fully imported sealing system, ensuring reliable sealing performance and stable operation under high pressure.

The drive piston diameter is 100 mm. The maximum allowable drive pressure is 10 bar, while long-term operation is recommended at air pressure ≤ 8 bar to ensure extended service life.

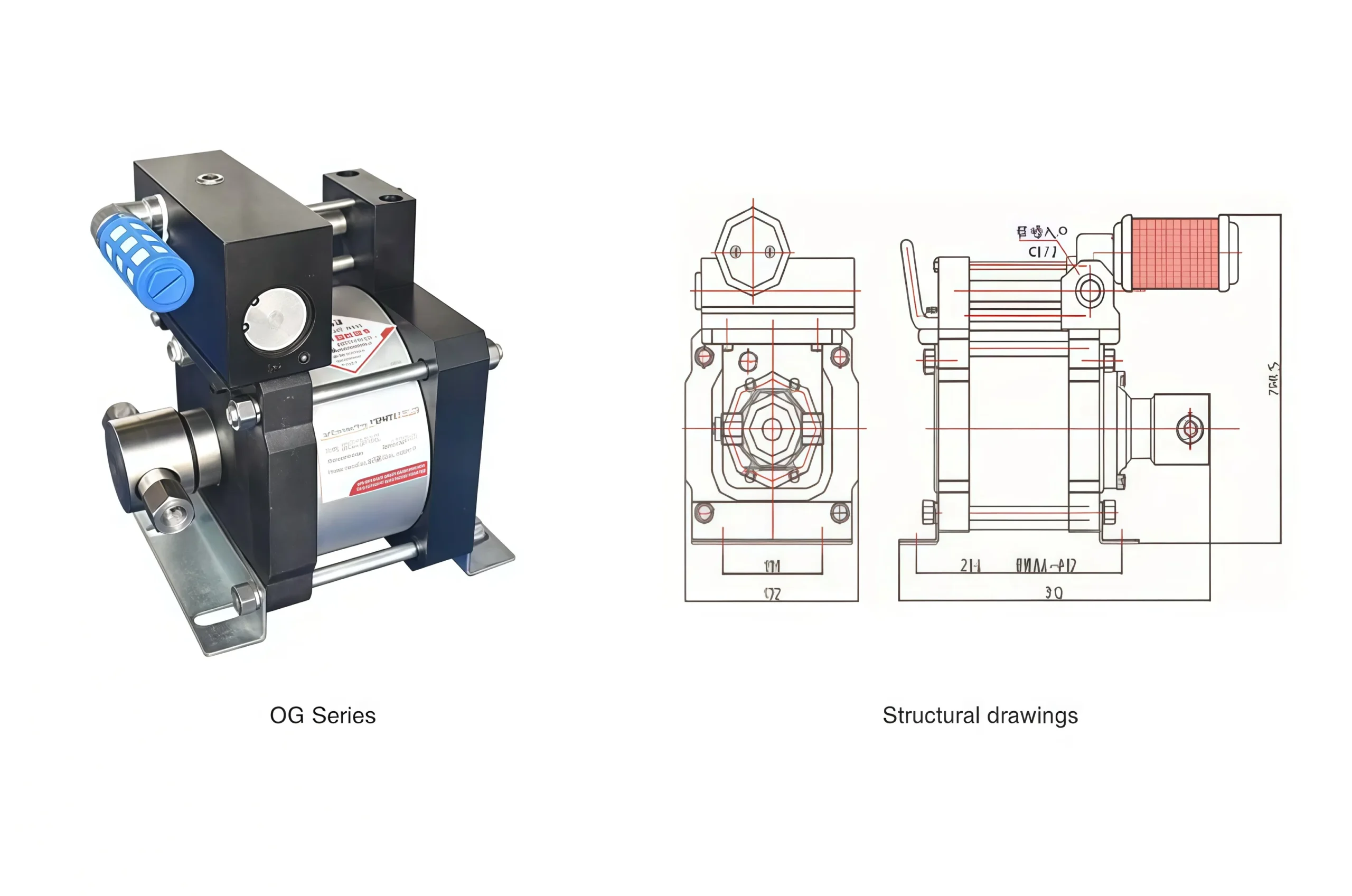

OG Series Air Driven Liquid Pump

Model Pressure Ratio Outlet Pressure (bar) Outlet Pressure (psi) Flow (L/min) Drive Port Inlet Outlet Net Weight (kg)
OG6 6:1 48 696 27.74 G1/2 G 1 ZG 3/4 12.7
OG10 10:1 80 1160 18.53 G1/2 G 3/4 ZG 1/2 12.7
OG16 16:1 128 1856 12.86 G1/2 G 3/4 ZG 1/2 12.7
OG28 28:1 224 3248 7.24 G1/2 ZG 1/2 ZG 3/8 12.2
OG40 40:1 320 4640 5.02 G1/2 ZG 1/2 ZG 3/8 12.2
OG64 64:1 512 7424 3.21 G1/2 ZG 1/2 ZG 3/8 12.2
OG80 80:1 640 9280 2.44 G1/2 ZG 1/2 ZG 3/8 12.2
OG100 100:1 800 11600 1.81 G1/2 ZG 1/2 M14×1.5 12
OG130 130:1 1040 15080 1.36 G1/2 ZG 1/2 M14×1.5 12
OG175 175:1 1400 20300 1.14 G1/2 ZG 1/2 M14×1.5 12
OG255 255:1 2040 29580 0.77 G1/2 ZG 3/8 M14×1.5 12
OG400 400:1 3200 46400 0.51 G1/2 ZG 3/8 M14×1.5 12

OG Series Air Driven Liquid Pump

Features and Functions：

  • Single pneumatic non-equilibrium gas distributing valve design
  • Automatic reciprocating operation without electrical power
  • Aluminum alloy drive components with black oxidation treatment
  • Imported sealing components for reliable performance
  • Carbon steel or stainless steel liquid end options
  • Stable pressure output with continuous operation capability

OG Series Air Driven Liquid Pump

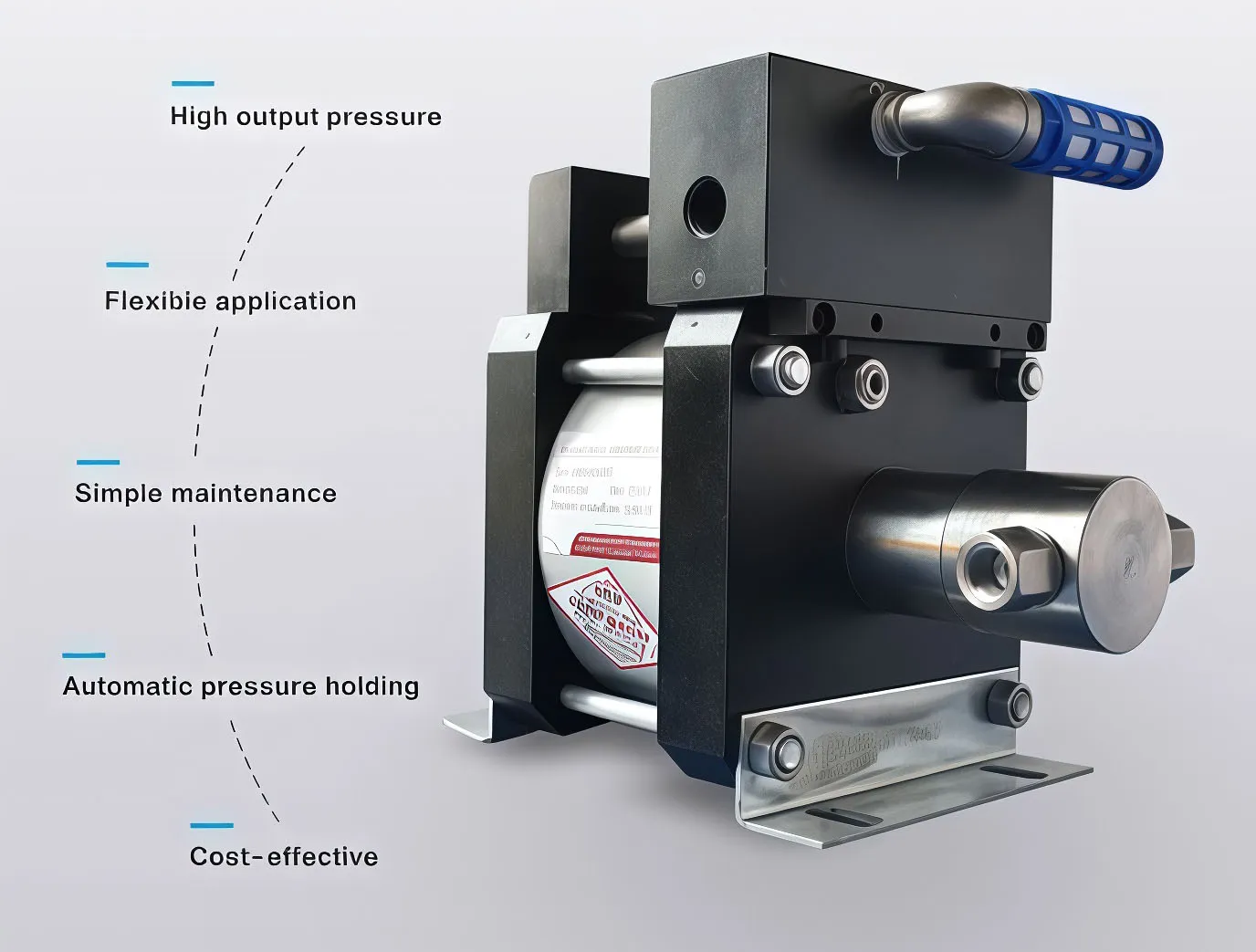

Product Advantages：

  • No electricity required, suitable for hazardous or restricted environments
  • High pressure capability through multiple pressure ratio options
  • Durable structure, designed for long-term industrial operation
  • Compact and integrated design, easy installation and maintenance
  • Long service life when operated within recommended air pressure range



OG Series Air Driven Liquid Pump



Optional Configurations & Materials：

  • Liquid end material: carbon steel or stainless steel
  • Multiple pressure ratio selections
  • Different inlet and outlet thread standards
  • Customized configurations based on working medium



Operation & Maintenance Notes：

  • Maximum drive pressure: 10 bar
  • Recommended operating air pressure: ≤ 8 bar
  • Ensure clean and dry compressed air supply
  • Select sealing and material options according to working medium
  • Regular inspection of seals and pneumatic components is recommended



Our Company Advantages：

  • Specialized in pneumatic booster pumps and pressure testing equipment
  • More than a decade of manufacturing and engineering experience
  • Strict quality control during machining, assembly, and testing
  • Support for multiple product series and pressure ranges
  • OEM and customization support based on customer requirements
