product introduction

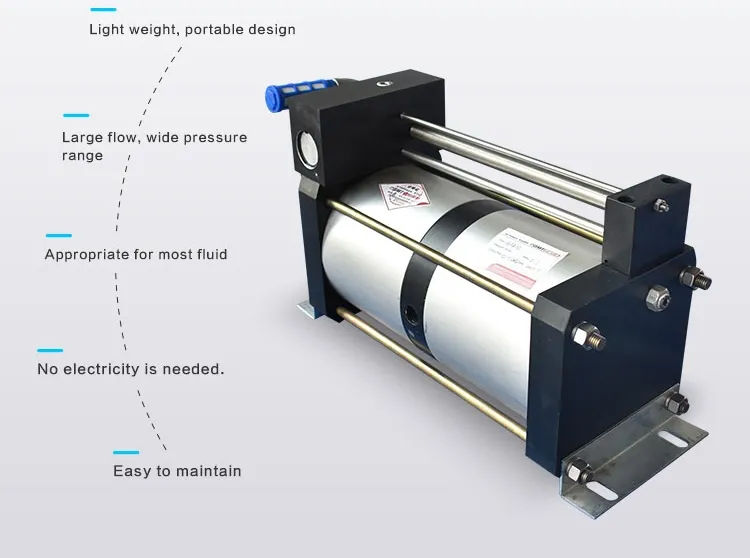

GAB Series Pneumatic Air Pressure Amplifier is designed to increase the pressure of existing compressed air systems without additional power sources. By using compressed air from the workshop air supply as the driving source, the GAB02 amplifier efficientlyboosts outlet air pressure to meet higher working requirements.

Get a Quote

Product Description

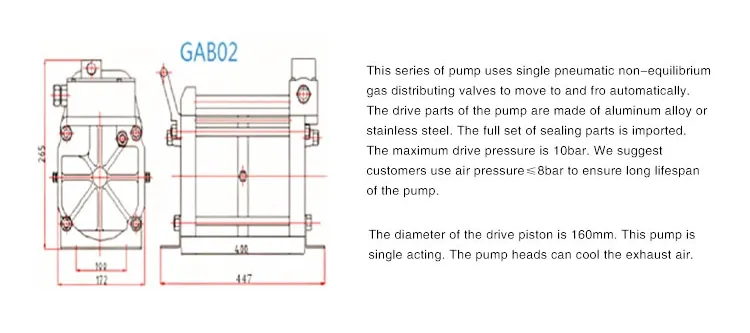

GAB02 gas amplifier uses a single pneumatic non-equilibrium gas distributing valve to drive the piston to reciprocate automatically. The drive components are manufactured from aluminum alloy or stainless steel, ensuring stable performance and long service life.

The maximum drive pressure is 10 bar, and it is recommended to operate at air pressure ≤ 8 bar to ensure extended lifespan and reliable operation. The drive piston diameter is 160 mm. The pump operates in a single-acting mode, and the pump head structure helps cool the exhaust air during operation.

GAB02 is especially suitable for workshop environments where the existing air compressor system needs pressure amplification without introducing electricity or additional mechanical equipment.

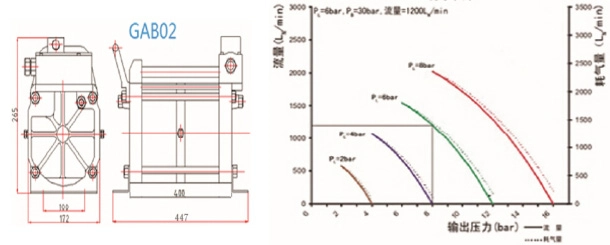

GAB Series Pneumatic Air Pressure Amplifier

Type GAB02
Pressure Ratio 2:1
Drive Pressure 1–8 bar
Drive Port G1/2
Gas Inlet ZG1/2
Gas Outlet ZG1/2

GAB Series Pneumatic Air Pressure Amplifier



Product Features & Functions:

  • Automatically reciprocating pneumatic drive system
  • Single-acting structure for stable pressure amplification
  • No electricity required, powered only by compressed air
  • Compact design suitable for workshop installation
  • Pump head assists in cooling exhaust air during operation



GAB Series Pneumatic Air Pressure Amplifier

Product Advantages:

  • Energy Efficient – Uses existing compressed air as power source
  • Simple Integration – Easy connection to original air compressor systems
  • Reliable Performance – Imported sealing components ensure stable operation
  • Low Maintenance – Simple mechanical structure with fewer wear parts
  • Safe Operation – No electrical components, suitable for harsh environments





GAB Series Pneumatic Air Pressure Amplifier

GAB Series Pneumatic Air Pressure Amplifier



Our Company Advantages:

  • Factory direct supply with strict quality control
  • Mature production process and stable product consistency
  • Professional technical support for model selection and application guidance
  • Flexible customization according to customer working conditions
  • Reliable after-sales service and long-term spare parts supply

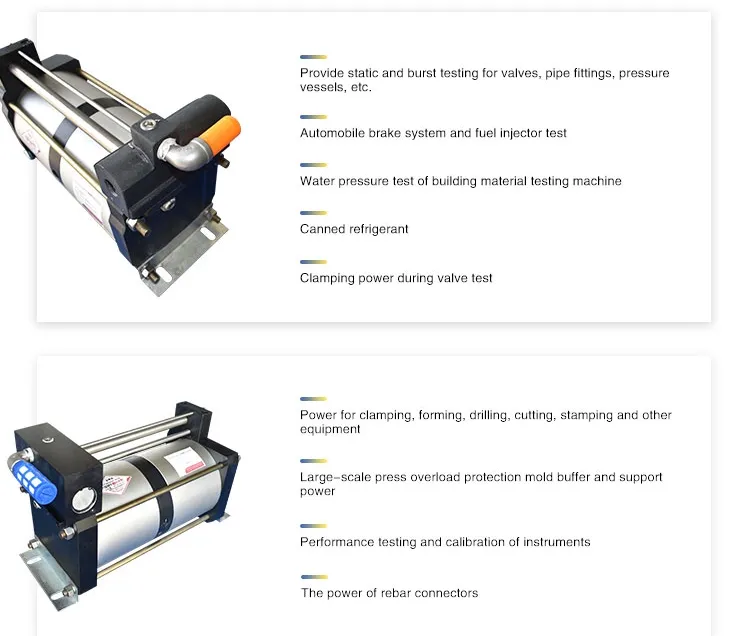

Typical Applications:

  • Pressure amplification for workshop air supply systems
  • Pneumatic testing equipment and fixtures
  • Valve, pipe fitting, and pressure vessel testing
  • Industrial automation and assembly lines
  • Pneumatic tools requiring higher inlet pressure

Installation & Operation Notes:

  • Recommended drive air pressure: ≤ 8 bar
  • Ensure clean and dry compressed air supply
  • Proper inlet and outlet piping installation to avoid pressure loss
  • Regular inspection of sealing components for long-term stable use
