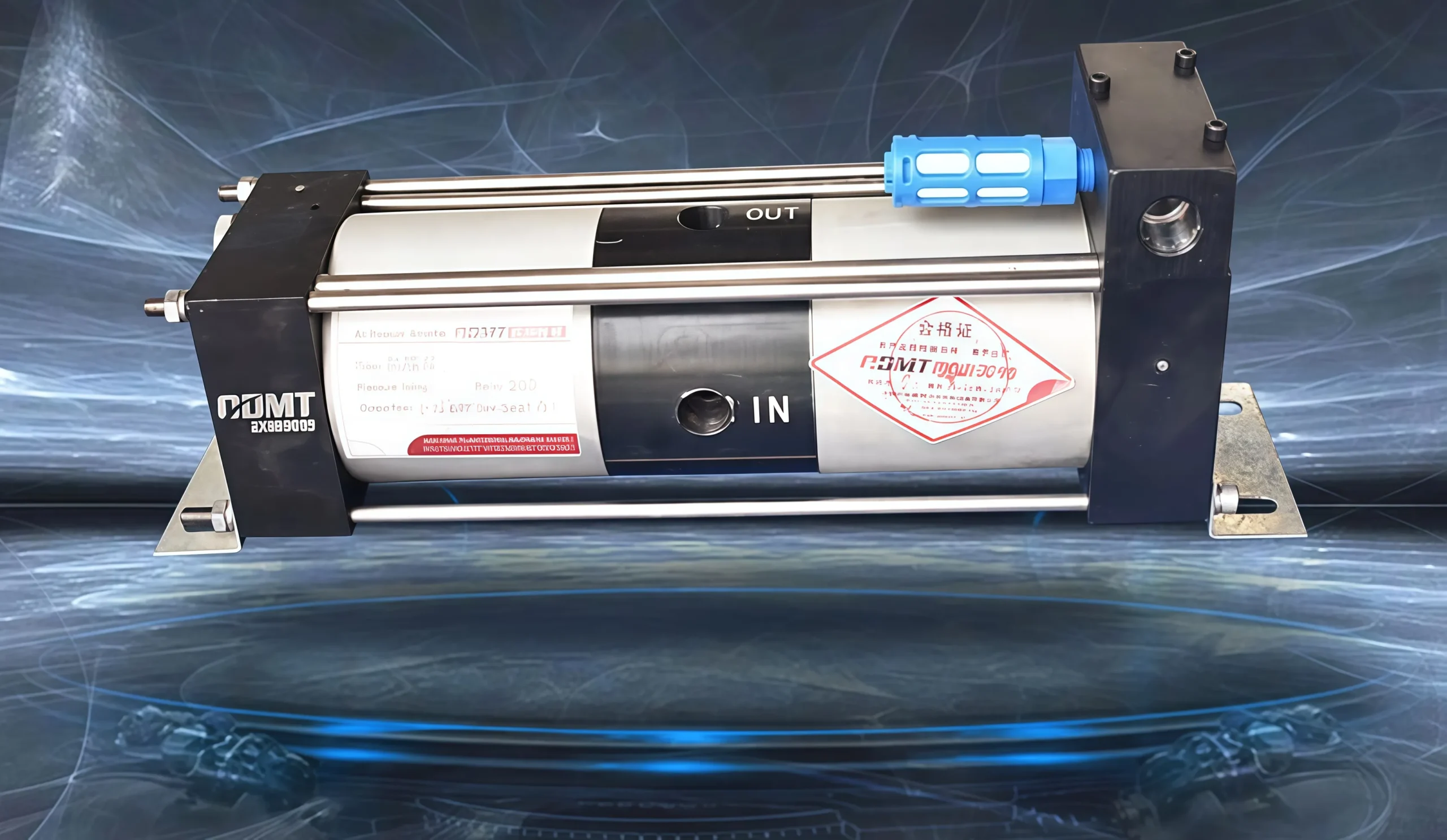

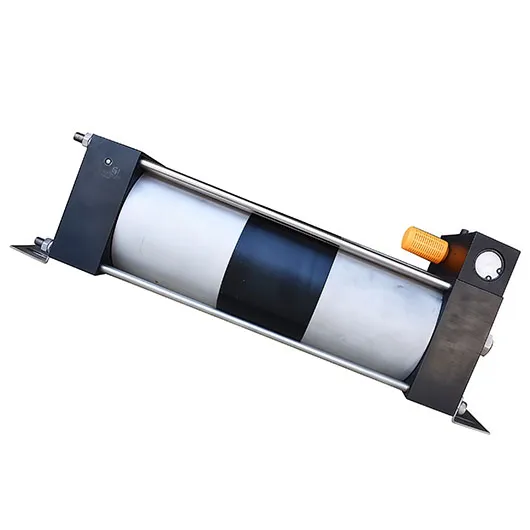

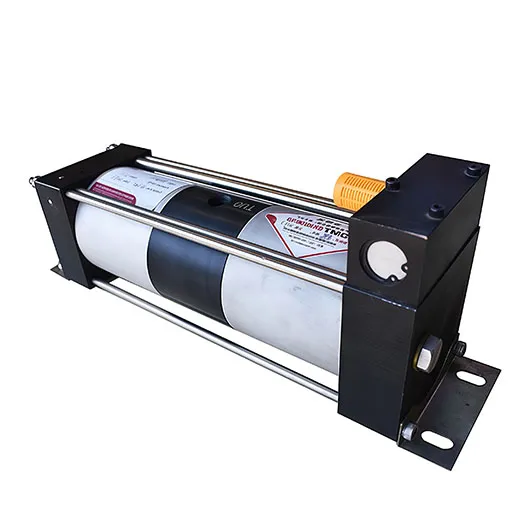

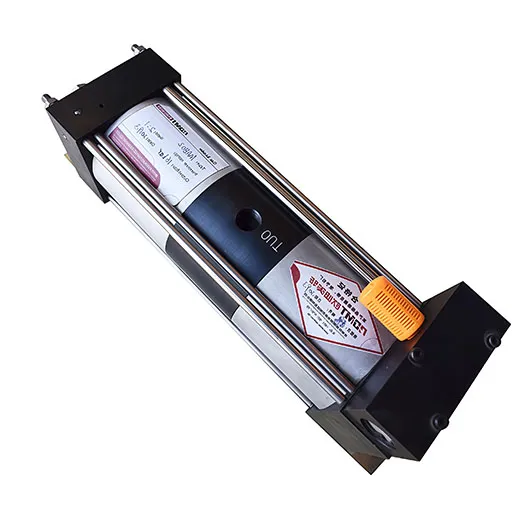

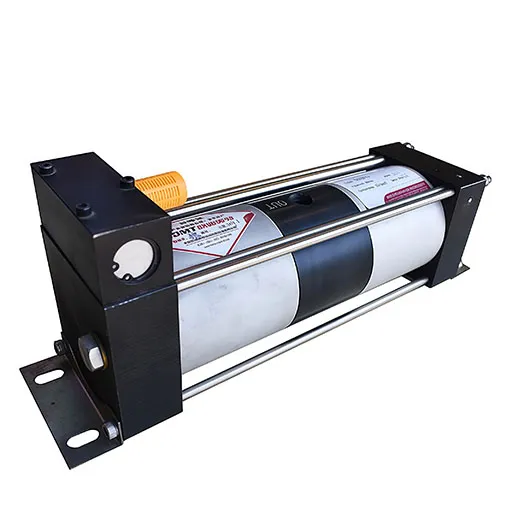

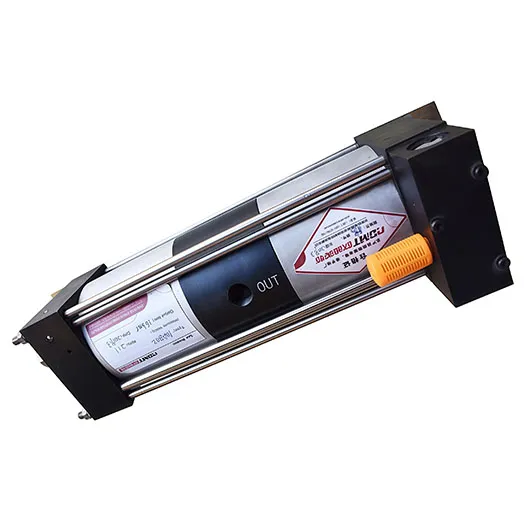

The MAB02 Pneumatic Air Pressure Amplifier adopts a single gas-controlled unbalanced gas distribution valve, enabling automatic reciprocating movement without electrical components.
The entire structure is manufactured from aluminum alloy and stainless steel, ensuring excellent corrosion resistance, mechanical strength, and durability in industrial environments.
High-quality imported sealing components are used throughout the system to guarantee stable pressure output and extended service life.
For optimal durability, the recommended driving air pressure is ≤ 8 bar.
With a 100 mm double driving piston, the MAB02 provides efficient air amplification while maintaining smooth operation and controlled noise levels, making it suitable for continuous pressurization systems.
| Type |
MAB02 |
| Pressure ratio |
2:1 |
| Driving air pressure |
1–8 bar |
| Drive port |
G3/8 |
| Air inlet |
ZG3/8 |
| Air outlet |
ZG3/8 |
| Maximum output air pressure |
16 bar |
| Maximum output air flow |
580 L/min |
| Minimum air inlet pressure |
2 bar |
| Maximum air inlet pressure |
16 bar |
| Applicable medium |
Clean compressed air |
| Maximum noise level |
79 dB |
| Maximum operating temperature |
60°C |
| Driving piston diameter |
100 mm |
| Net weight |
4.2 kg |

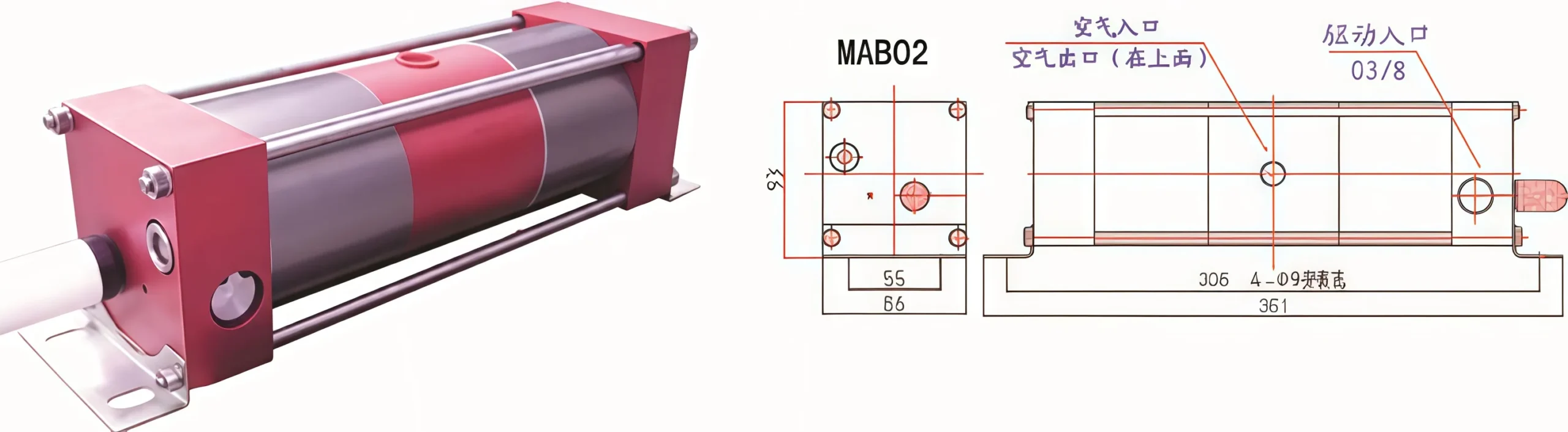

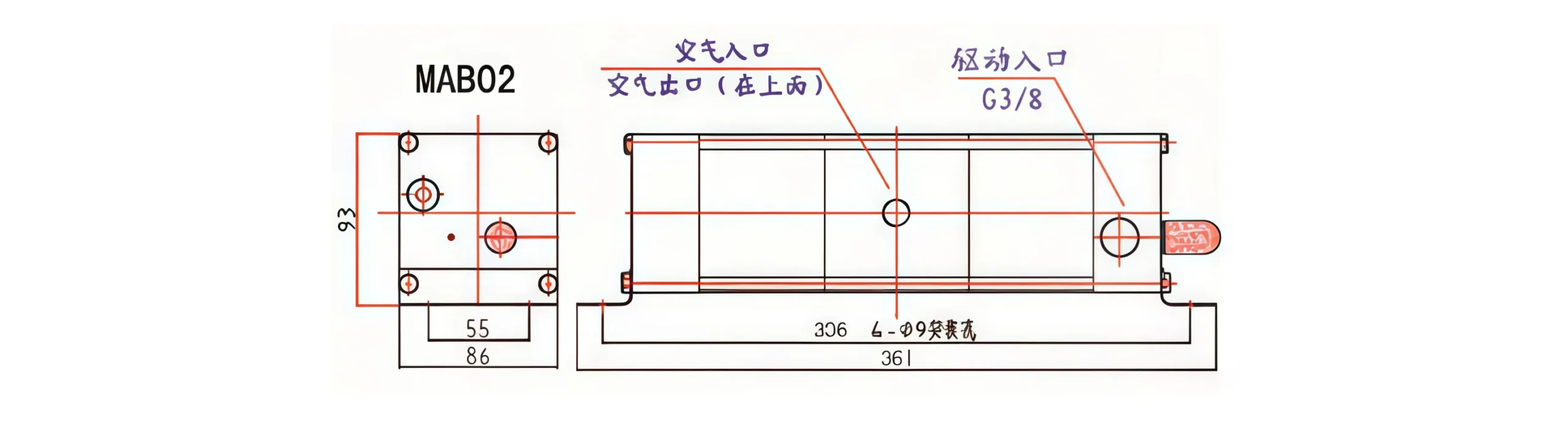

| Dimensions |
346 × 86 × 93 mm |
Driving air source: clean compressed air;
Type: Air booster pump;
Driving compressed air pressure: 2-8bar;
Maximum output air flow: 580Ln / min;
Maximum output air pressure: 16bar;
Applicable medium: clean air;
Minimum air inlet pressure: 2bar;
Maximum air inlet pressure: 16bar;
Maximum noise index: 79db;
Maximum operating temperature: 60 ° C;
Drive air inlet size: G3 / 8 “;
Air suction port size: G3 / 8 “;
High-pressure air outlet size: G3 / 8 “;
Equipment net weight: 4.2kg.
Dimensions: 346mm * 86mm * 93mm

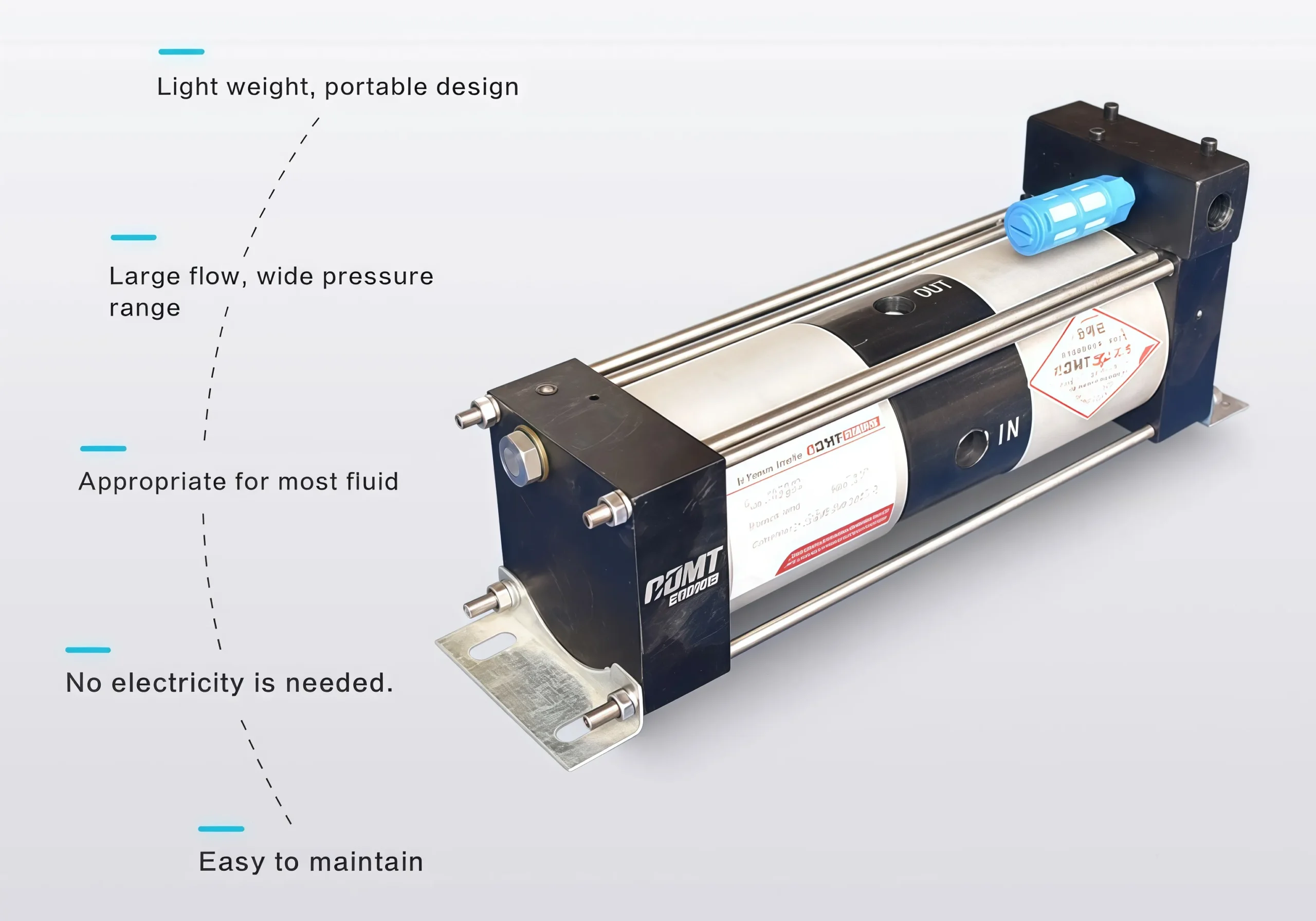

Product Features & Functions：
- Pneumatic-driven air pressure amplification without electricity
- Automatic reciprocating operation via unbalanced gas distribution valve
- Double driving piston structure for stable pressure boosting
- Compact and lightweight design for easy installation
- Continuous operation capability under set pressure conditions
- No additional energy consumption once target pressure is reached
Product Advantages：
- Explosion-proof operation – ideal for hazardous or flammable environments
- Energy-efficient – uses existing compressed air without extra power input
- Stable pressure output with high-quality sealing system
- Low maintenance requirement due to simplified mechanical structure
- Wide application compatibility for various industrial air systems
Our Manufacturing Advantages：
- Precision machining of aluminum alloy and stainless steel components
- Strict quality control throughout production and assembly
- Use of internationally recognized sealing materials
- Factory-direct supply with stable quality consistency
- Support for OEM customization and technical integration
Typical Applications：
- Air pressure boosting in workshop compressed air systems
- Safety valve calibration and performance verification
- Pneumatic testing systems and air pressure test rigs
- Explosion-proof industrial environments
Equipment requiring stable high-pressure air supply
Operation & Service Notes：
- Recommended driving air pressure: ≤ 8 bar
- Ensure clean and dry compressed air for optimal performance
- Suitable for single air source pressurization systems
- Easy installation with standard G-thread connections
