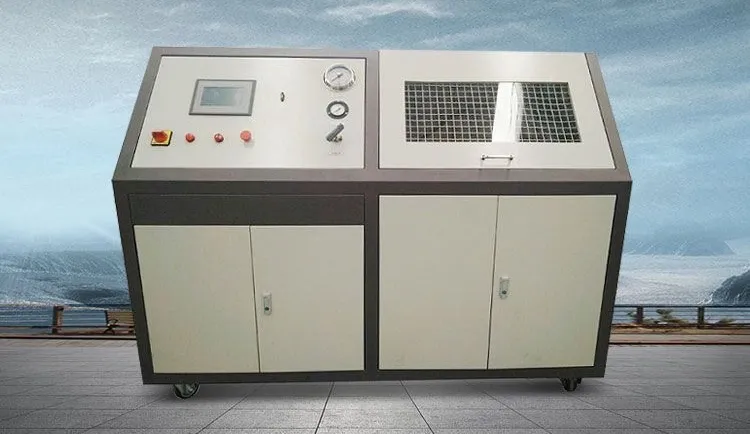

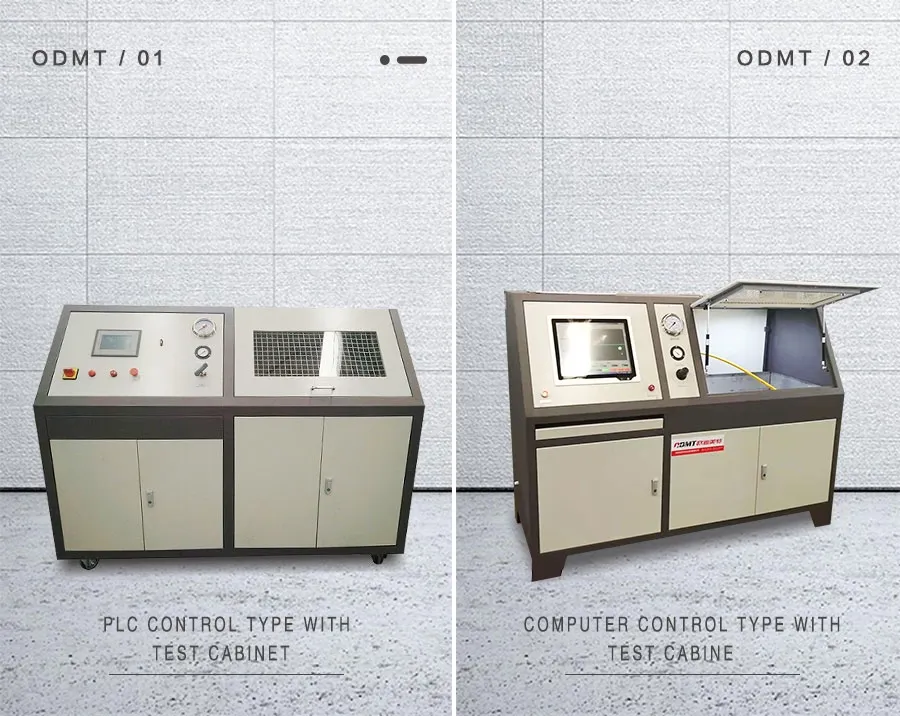

Pressure Burst Test Bench

product introduction

Pressure Burst Test Bench is a professional testing system designed for static pressure resistance and burst pressure testing of pressure components.
Powered by compressed air and combined with a pneumatic booster system, it provides stable, controllable high-pressure liquid output for safety verification and performance validation of pressure-related products.

This system is especially suitable for high-pressure and ultra-high-pressure testing of valves, pipes, joints, hoses, and pressure vessels, ensuring compliance with international and domestic pressure test standards.

Get a Quote

Product Description

By using compressed air as the driving power, the Pressure Burst Test Bench converts low-pressure air input into proportional high-pressure liquid output through a pneumatic booster pump.
By adjusting the inlet air pressure, users can accurately control the output liquid pressure. When the air pressure and liquid pressure reach equilibrium, the booster pump automatically stops pressurization, maintaining a stable preset pressure.

The system features explosion-proof design, adjustable output pressure, compact structure, lightweight construction, simple operation, and reliable performance. It is widely used for pressure resistance and burst testing under high and ultra-high pressure conditions.

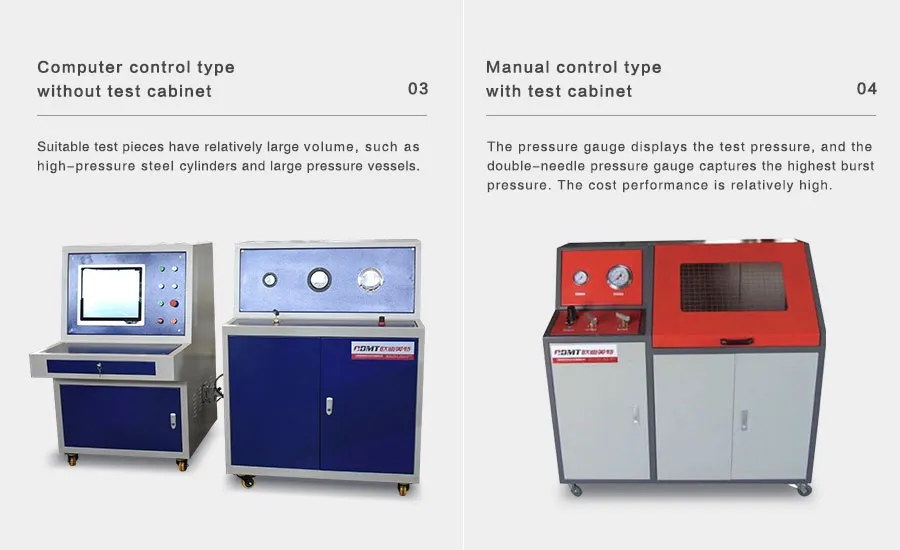

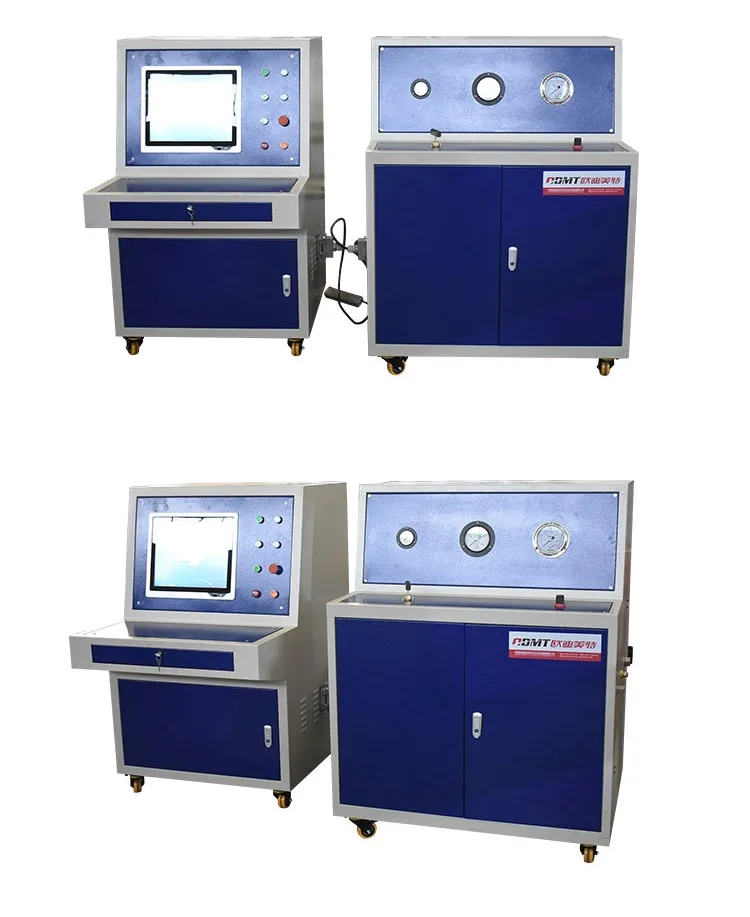

ODMT designs and manufactures pressure burst test benches with maximum pressure capability up to 600 MPa, offering both manual and automatic control modes to meet different testing requirements. The stable hydraulic control capability and safe structural design ensure high test accuracy and operational safety throughout the testing process.

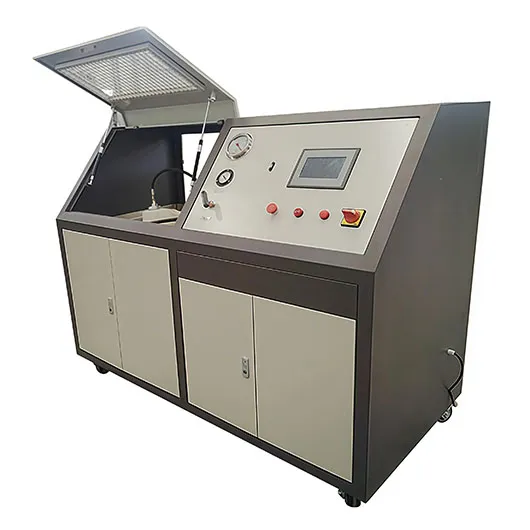

Pressure Burst Test Bench

Pressure range	Maximum pressure 600 MPa
Test station	1
Measurement accuracy	±0.5% FS (higher accuracy available on request)
Timing range	0 – 9999 h
Test medium	Water or hydraulic oil
Medium temperature	-40 ℃ to 150 ℃ ±3 ℃ (optional)
Drive air	≤ 7 bar
Power supply	380 V / 50 Hz

Product Features & Functions:

Proportional Pressure Control
Output liquid pressure is precisely proportional to inlet air pressure, ensuring stable and repeatable testing conditions.
Automatic Pressure Holding
The booster pump stops automatically once the preset pressure is reached, maintaining stable pressure during the holding phase.
High-Pressure Capability
Designed for static pressure and burst testing up to ultra-high pressure levels (up to 600 MPa).
Explosion-Proof Structure
Safe structural design ensures reliable operation during high-pressure testing.
Flexible Control Modes
Supports manual or automatic control modes to adapt to different testing scenarios.
Wide Test Media Compatibility
Compatible with water and hydraulic oil as test media.

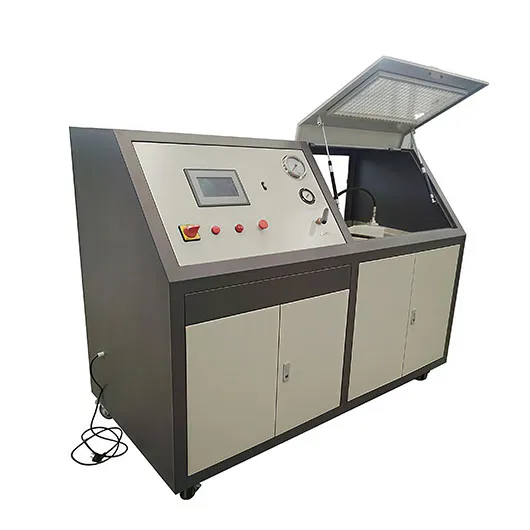

Pressure Burst Test Bench

Product Advantages:

Stable pressure output with minimal fluctuation
Accurate pressure control and timing control
Compact system design with high pressure-to-size ratio
Reliable long-term operation for repetitive testing
Simple operation and easy maintenance
Suitable for both laboratory and industrial environments

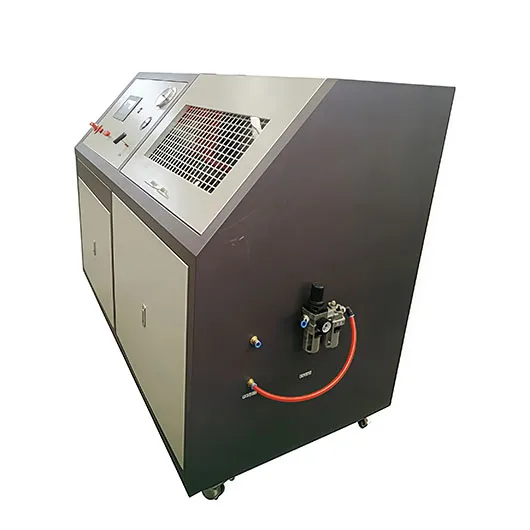

Pressure Burst Test Bench

Our Company Advantages:

Professional High-Pressure System Design
ODMT specializes in high-pressure testing and pressurization systems with extensive engineering experience.
Customized Solutions
Test benches can be tailored to specific pressure ranges, control modes, and application requirements.
Strict Quality Control
All systems are manufactured with reliable components and undergo thorough testing before delivery.
Technical Support & After-Sales Service
Professional technical guidance, commissioning support, and long-term service assistance.

Application Areas:

Valves and valve assemblies
High-pressure pipes and joints
Metal hoses and flexible hoses
Pressure vessels and cylinders
Hydraulic and fluid control components

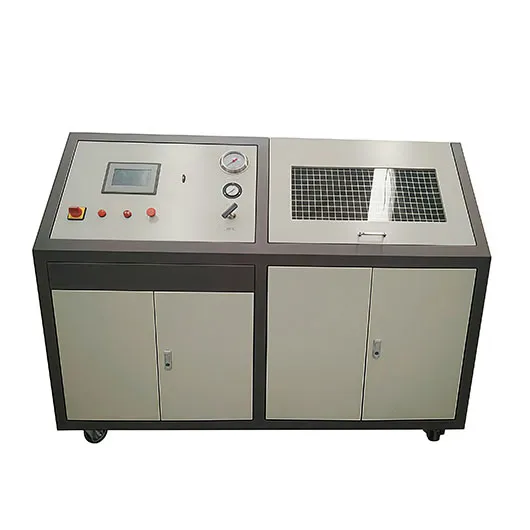

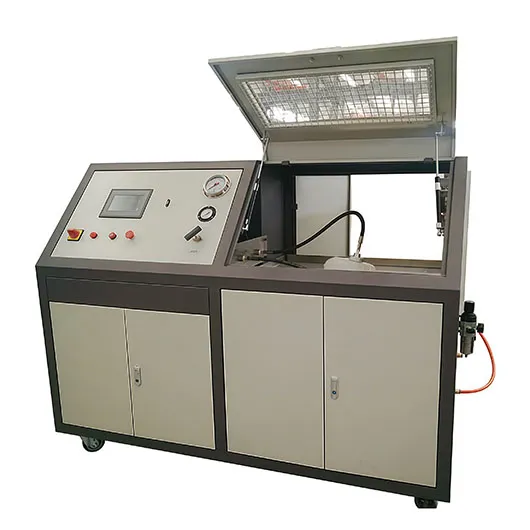

Pressure Burst Test Bench

Testing Standards & Compliance:

The Pressure Burst Test Bench is designed to comply with general and special international and domestic standards for pressure component testing.
It supports pressure resistance tests and burst pressure tests required for safety validation, product certification, and quality inspection across multiple industries.
