product introduction

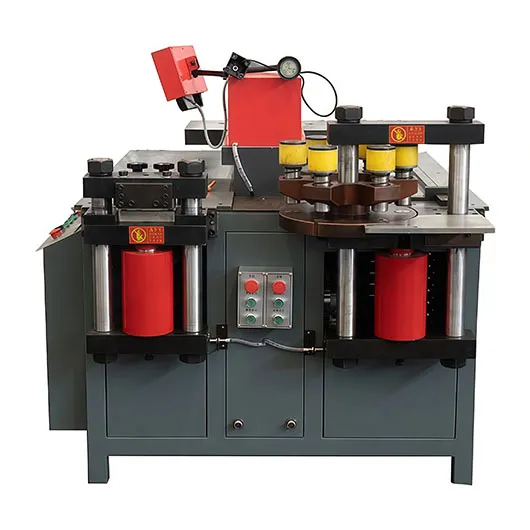

CNC Busbar Processing Machine is designed for efficient and precise processing of copper and aluminum busbars.
This machine integrates punching, shearing, and bending functions into one system, significantly improving productivity in power transmission and distribution manufacturing.

It is widely used in the production of power distribution cabinets, switchgear, and electrical equipment, where high accuracy and stable performance are required.

Product Description

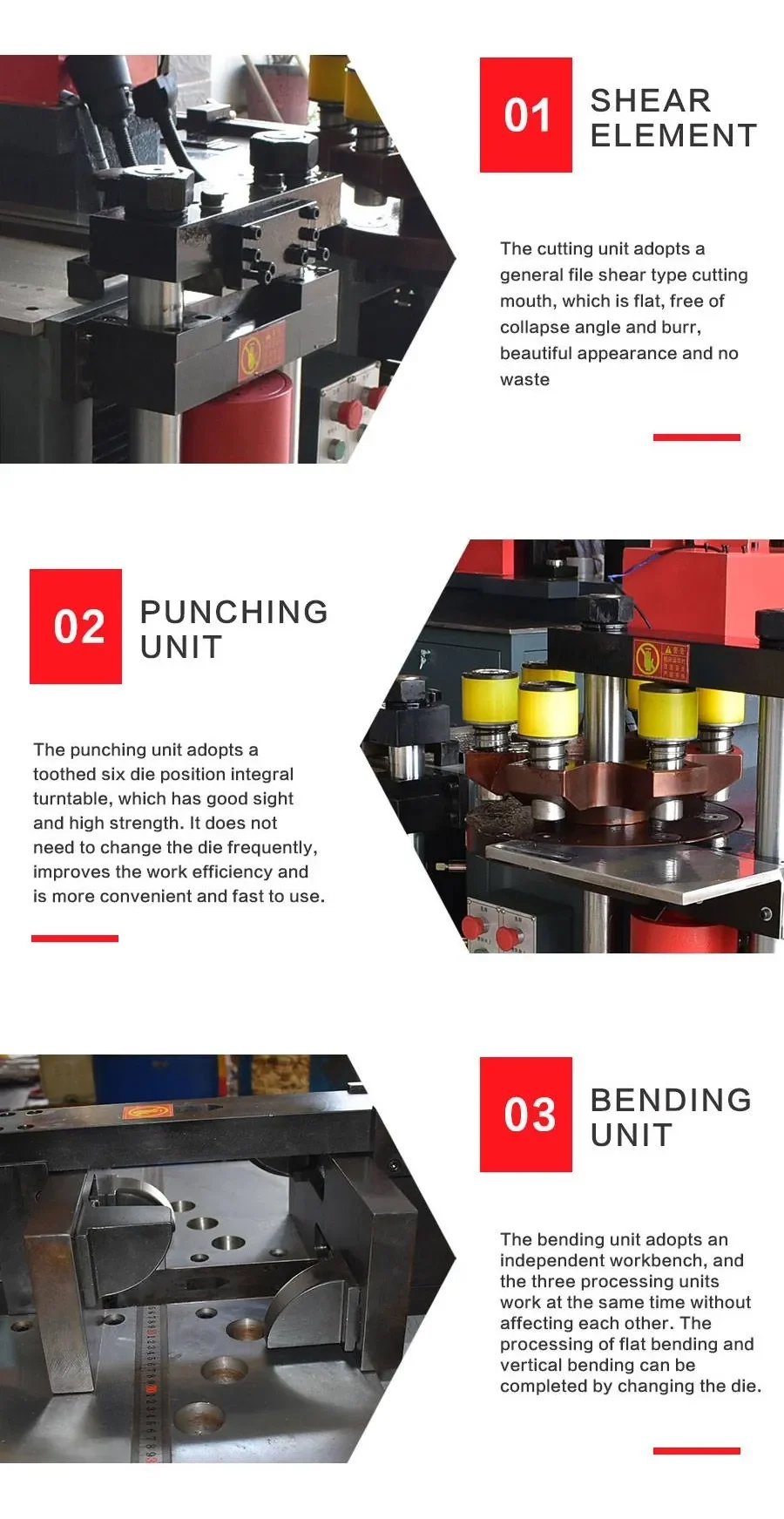

This series of CNC busbar processing machines features three independent processing units: punching, shearing, and bending, which can be adjusted easily to shorten processing time and improve production efficiency.

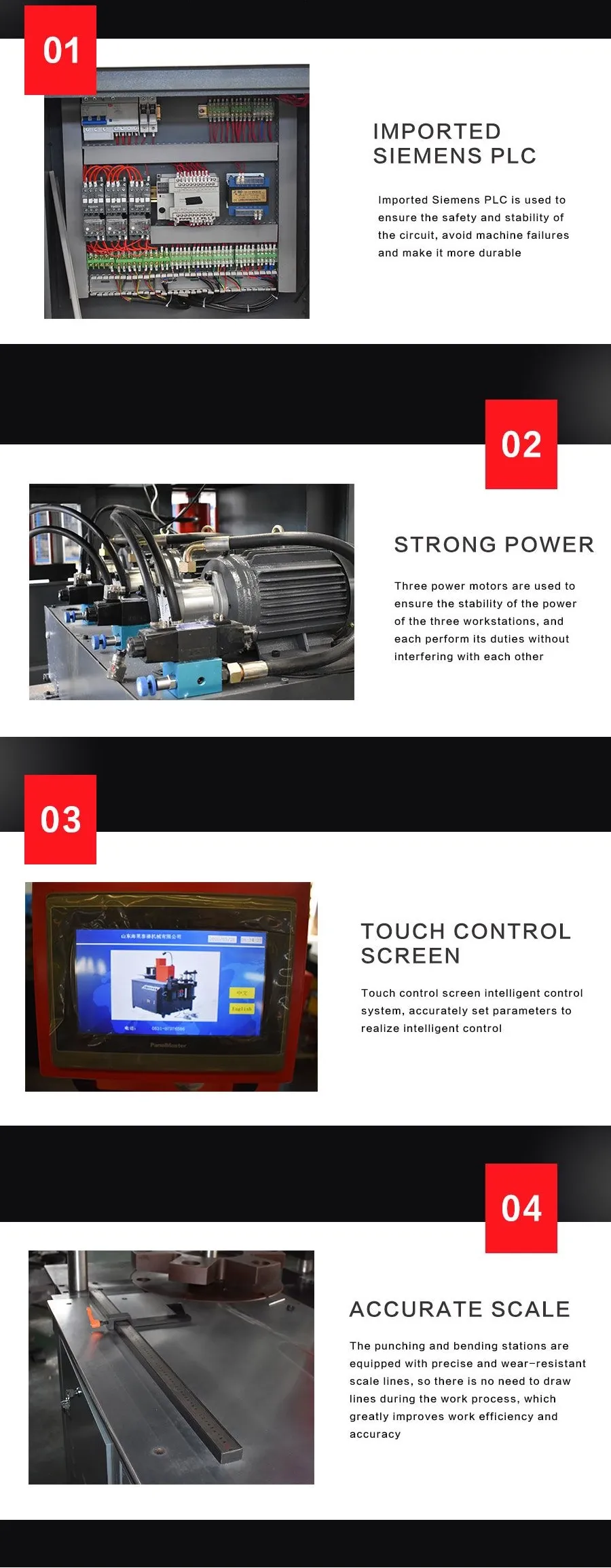

The bending unit adopts an imported PLC control system, ensuring stable operation and high bending accuracy.

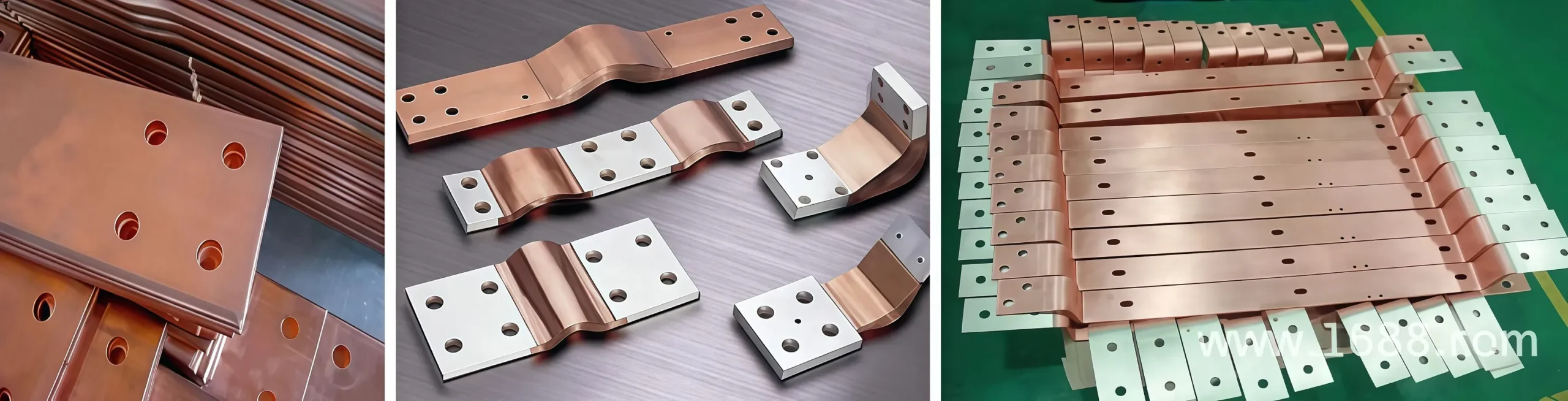

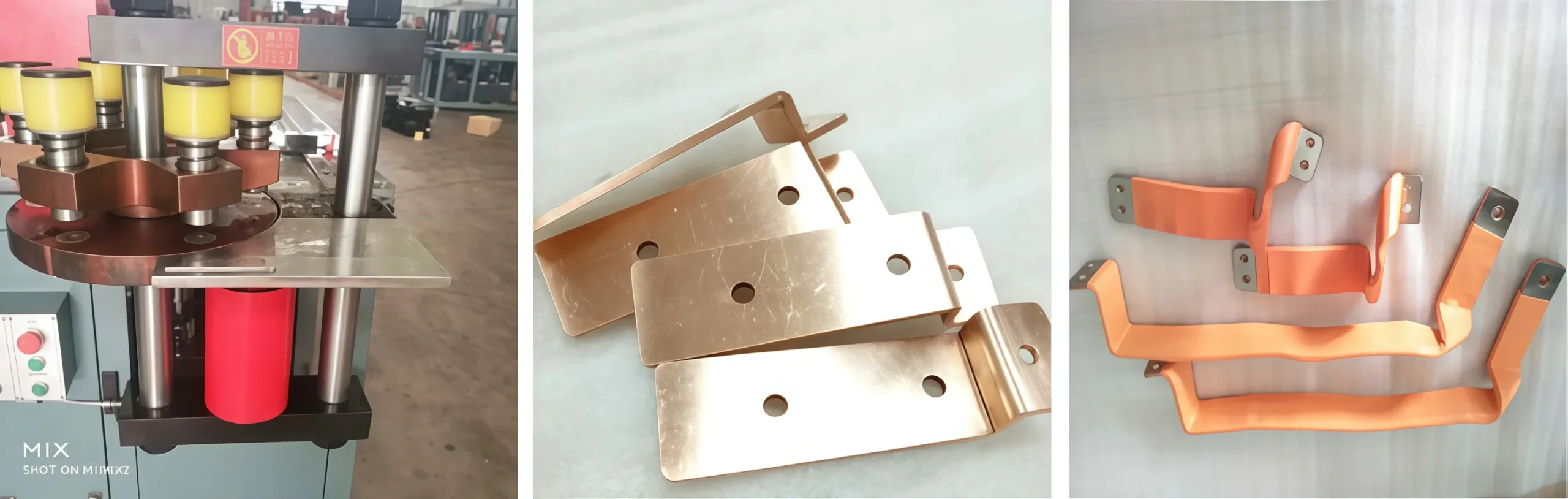

By selecting different working units and molds, the machine can perform various operations on copper and aluminum busbars, including:Shearing，Punching (round holes and oblong holes)，Horizontal (flat) bending，Vertical bending，Knurling and special forming.

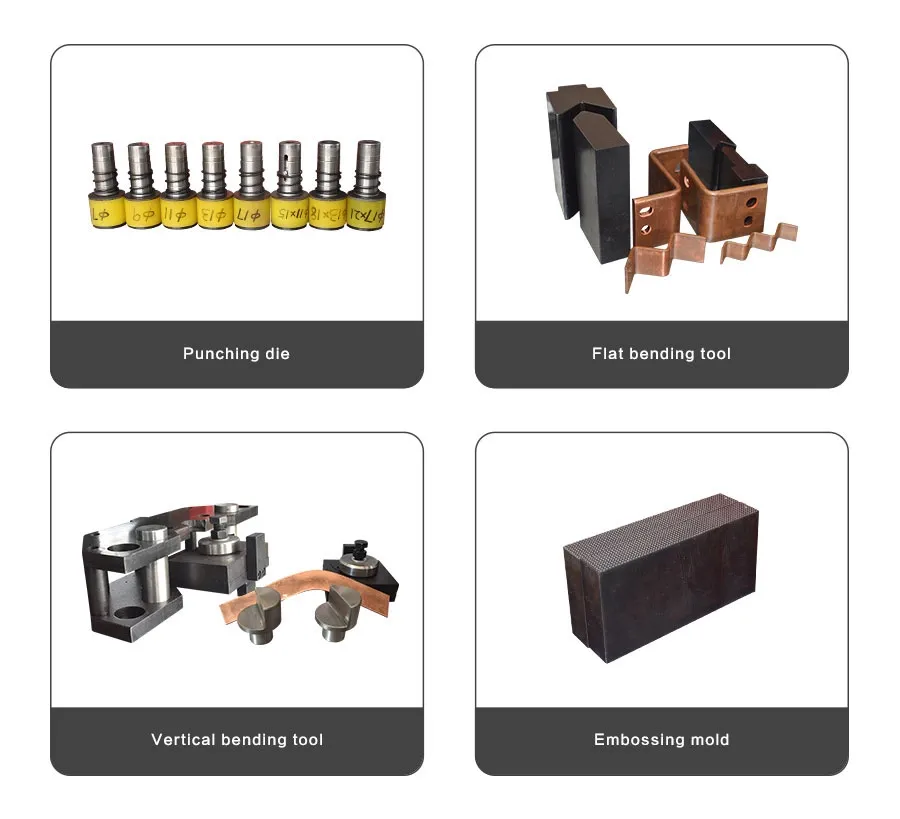

By changing molds, the machine can also complete special processes such as flat pressing, embossing, cable connector processing, cutting, flattening, pushing, and bending.

CNC Busbar Processing Machine

CNC Busbar Processing Machine

Item	MX-303SK	MX-503SK
Max punching strength (kN)	300	500
Punching diameter range (mm)	Φ4.3–Φ25	Φ4.3–Φ34
Max punching thickness (mm)	12	16
Max punching width (mm)	150	250
Max shearing thickness (mm)	12	16
Max shearing width (mm)	150	250
Max horizontal bending width (mm)	150	250
Max horizontal bending thickness (mm)	12	16
Max vertical bending width (mm)	100 (10mm thickness)	120 (10mm thickness)
Min bending angle	90°	90°
Machine dimensions (mm)	1500×1300×1200	1800×1500×1300
Main motor power (kW)	3 × 4kW	3 × 5.5kW
Machine weight (kg)	1250	1750
Bending precision	±1°	±1°
Repeat bending precision	±0.3°	±0.3°

CNC Busbar Processing Machine

CNC Busbar Processing Machine

Product Features & Functions:

Integrated punching, shearing, and bending units
Supports round and oblong hole punching
Capable of horizontal and vertical bending
Quick mold replacement for multiple processing needs
Imported PLC control system for stable and precise bending
Multiple working stations can operate simultaneously

Product Advantages:

High processing efficiency compared with traditional machines
Flat and clean shearing surfaces without burrs or deformation
High mold concentricity improves accuracy and extends mold life
Reduced labor intensity through rotary mold design
Easy operation and fast setup for different processing tasks

CNC Busbar Processing Machine

CNC Busbar Processing Machine

Our Company Advantages:

Professional manufacturer of CNC busbar processing machines
Mature production technology and strict quality control
Stable machine performance and reliable mechanical structure
Support for different models and processing requirements
Responsive technical support and after-sales service

Typical Applications:

Power transmission and distribution systems
Electrical cabinet and switchgear manufacturing
Copper and aluminum busbar fabrication workshops
Electrical equipment production lines

CNC Busbar Processing Machine

CNC Busbar Processing Machine

Optional Configurations & Customization:

Customized punching molds for special busbar profiles
Special bending molds for non-standard shapes
Model selection based on busbar thickness and width requirements
