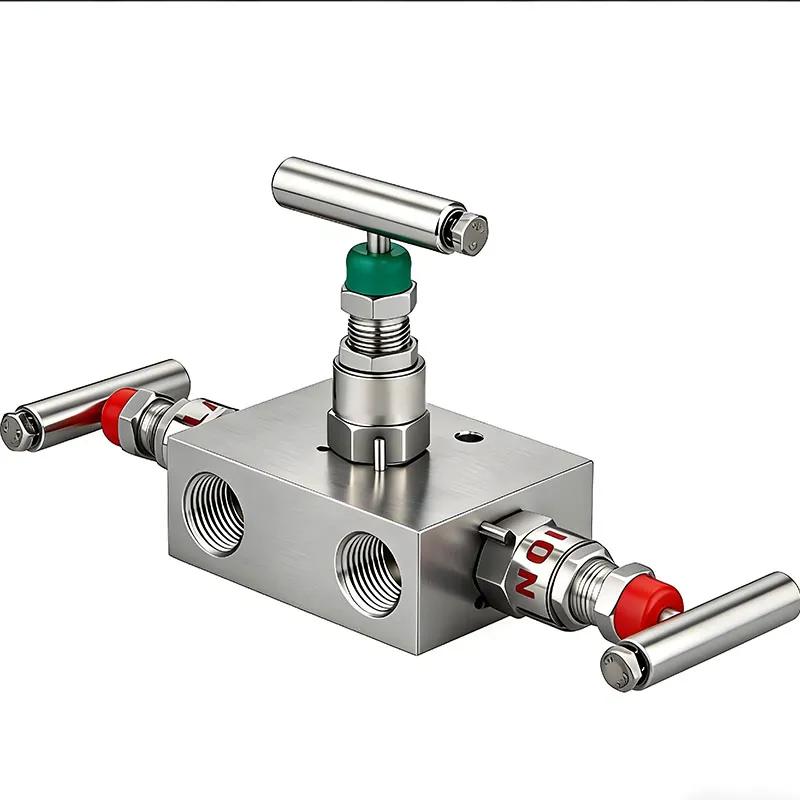

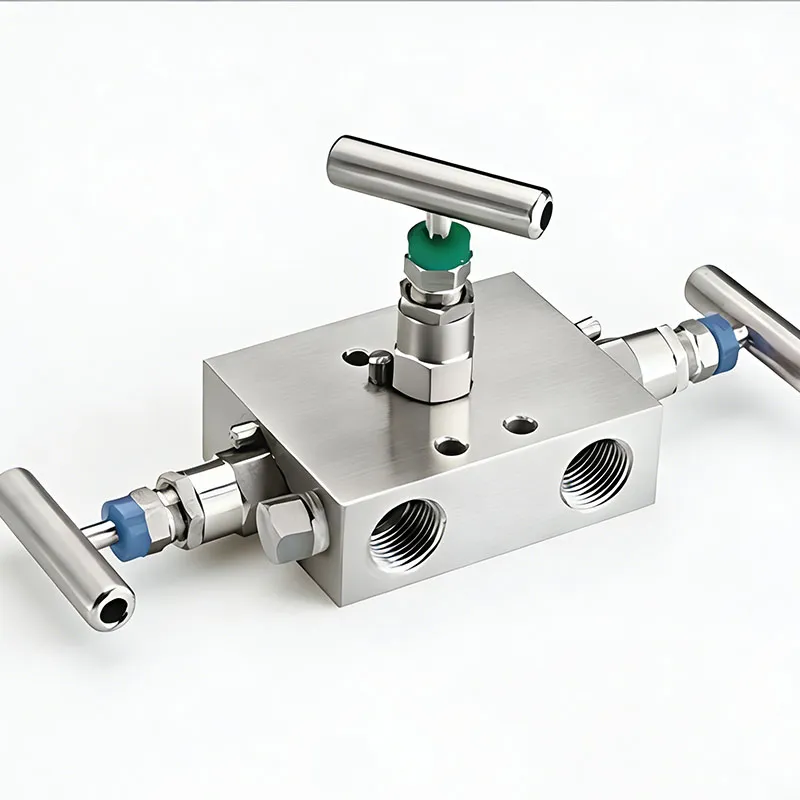

This remote-mount 3-valve manifold provides:
- Process isolation
- Pressure equalization
- Safe venting
for differential pressure transmitters and gauge installations.
The screw-locked handle ensures stability under vibration, and the stem lubrication is isolated from the process medium, preventing contamination and extending service life.

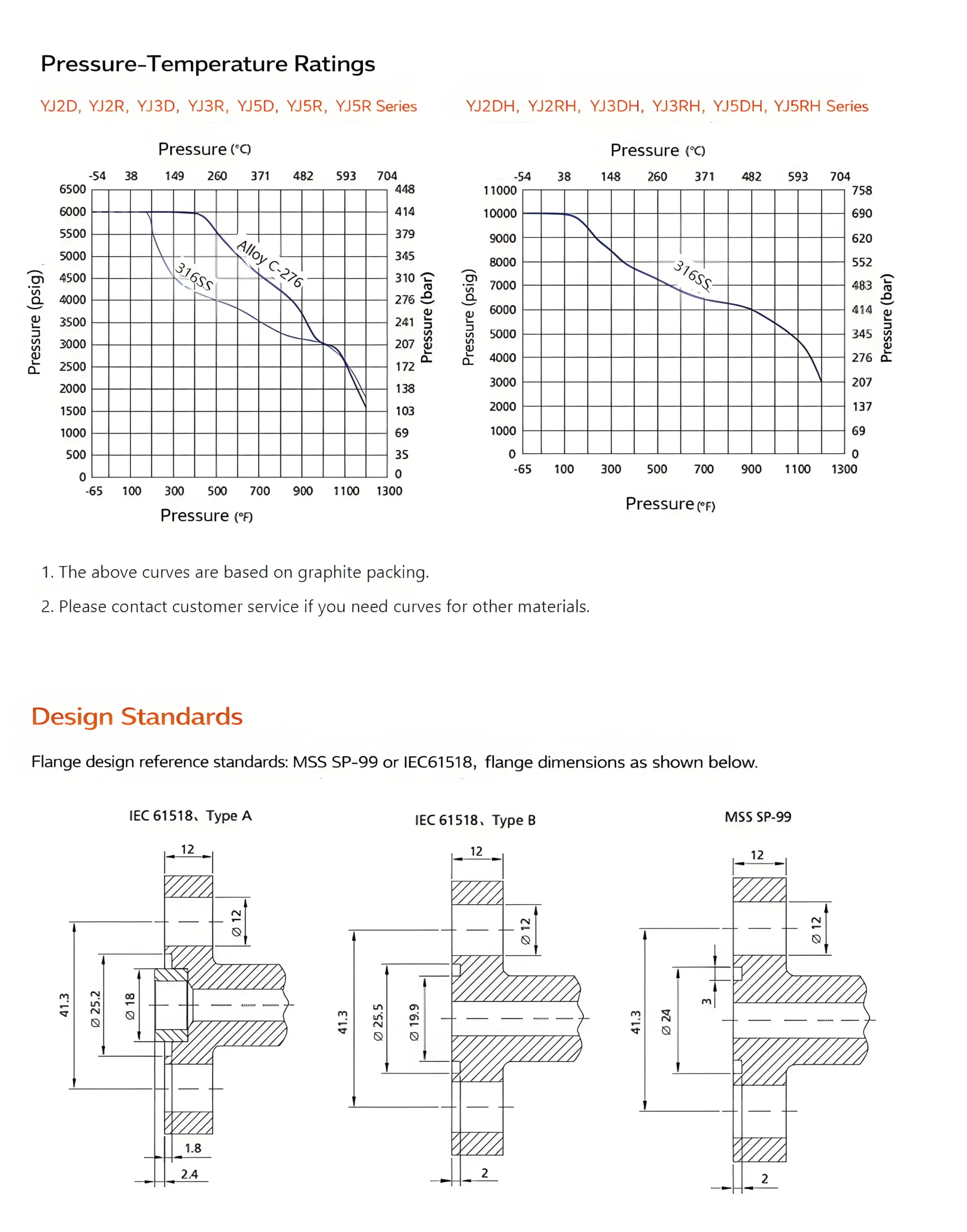

Designed for high-pressure industrial instrumentation systems, the manifold supports threaded process connections and multiple configuration options suitable for various installation layouts.
| No. |
Component |
316 Stainless Steel (Material Grade / ASTM Spec.) |
Alloy C-276 (Material Grade / ASTM Spec.) |
| 1 |
Handle |
Aluminum Alloy |
Aluminum Alloy |
| 2 |
Set Screw |
304 Stainless Steel |
304 Stainless Steel |
| 3 |
Packing Gland |
304 Stainless Steel / A479 |
304 Stainless Steel / A479 |
| 4 |
Upper Valve Stem |
316 Stainless Steel / A479 |
304 Stainless Steel / A479 |
| 5 |
Lock Nut |
Stainless Steel |
Stainless Steel |
| 6 |
Bonnet |
316 Stainless Steel / A479 |
Alloy C-276 / B574 |
| 7 |
Packing Gland Ring |
316 Stainless Steel / A479 |
316 Stainless Steel / A479 |
| 8 |
Packing |
PTFE or Graphite |
PTFE or Graphite |
| 9 |
Groove Pin |
Stainless Steel |
Stainless Steel |
| 10 |
Lower Valve Stem |
Hardened 316 Stainless Steel / A479 |
Alloy C-276 / B574 |
| 11 |
Valve Body |
316 Stainless Steel / A479; 316 Stainless Steel / A182 |
Alloy C-276 / B564 |
| — |
Lubricant |
Molybdenum Disulfide-Based |
Molybdenum Disulfide-Based |
Functions and Characteristics
- Designed for differential pressure measurement systems
- Back-seated valve design improves maintenance safety
- Two-piece non-rotating stem structure reduces packing and seat wear
- Screw-locked handle maintains stable positioning under vibration
- Stem lubrication isolated from process media, preventing contamination
- Full pressure sealing test performed before shipment
Product Advantages
Reliable Differential Pressure Control
Integrated isolation, equalization, and venting functions simplify transmitter installation and ensure accurate measurement.
Extended Service Life
The non-rotating lower stem and isolated lubrication design significantly reduce wear, leakage risk, and maintenance frequency.
Safe Maintenance Operation
Back-seating structure enables secure calibration and servicing without compromising system integrity.
Industrial-Grade Pressure Integrity
Each manifold undergoes pressure sealing verification, ensuring dependable performance in high-pressure environments.
Our Company Advantages
- 14+ years specialized in pressure testing and pneumatic boosting equipment R&D and manufacturing
- Annual production capacity exceeding 1000+ equipment sets
- Trusted by 8000+ global customers
- National High-Tech Enterprise with 28+ patents
- Engineering team with 10+ years industry experience
- Member of China Special Equipment Industry Association
- Member of National Instrumentation Standardization Committee
- 10+ years export experience in European and US markets
- ISO 9001 certified quality management system
- CE certified products for international compliance
- Focused on mid-to-high-end industrial instrumentation market

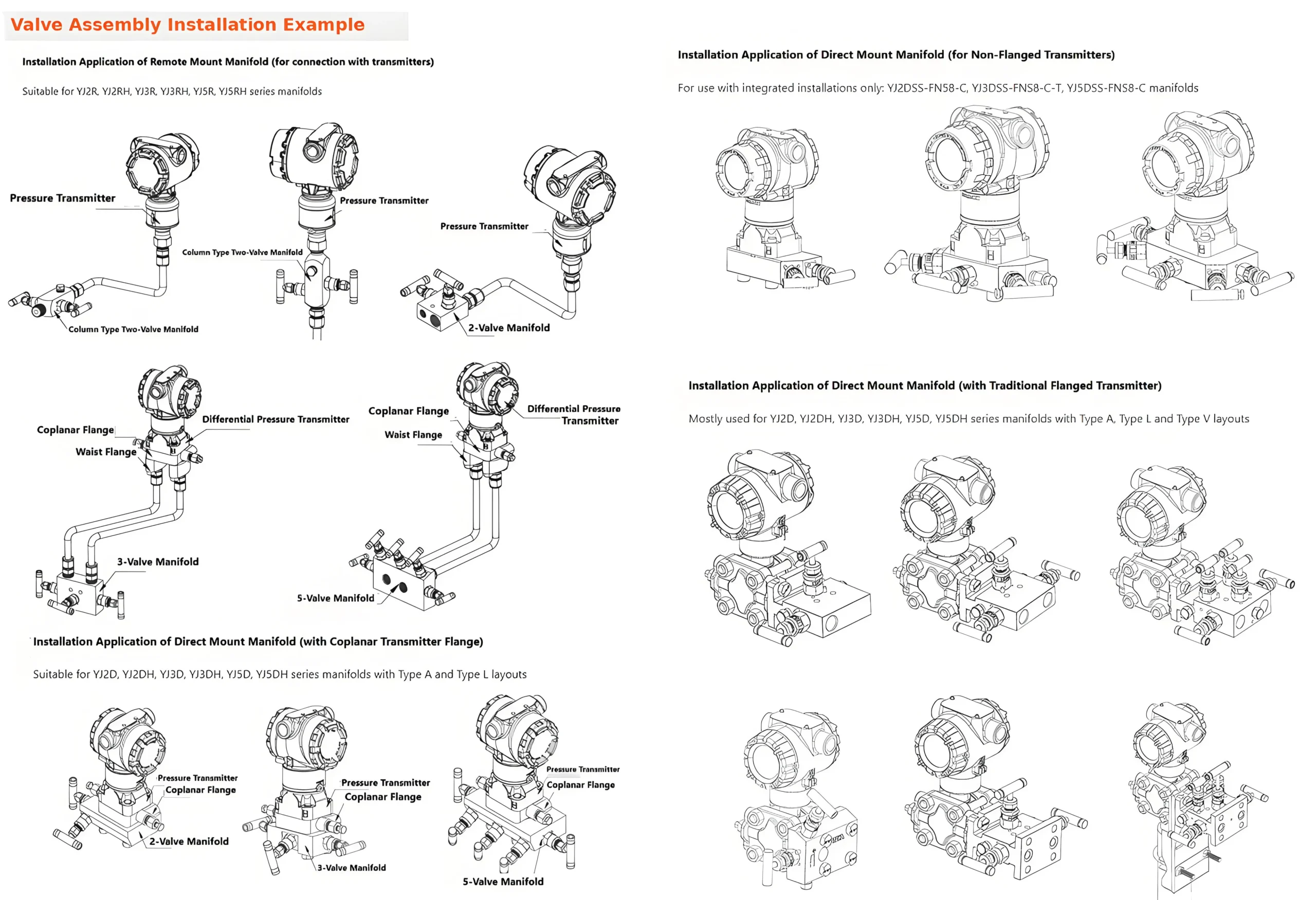

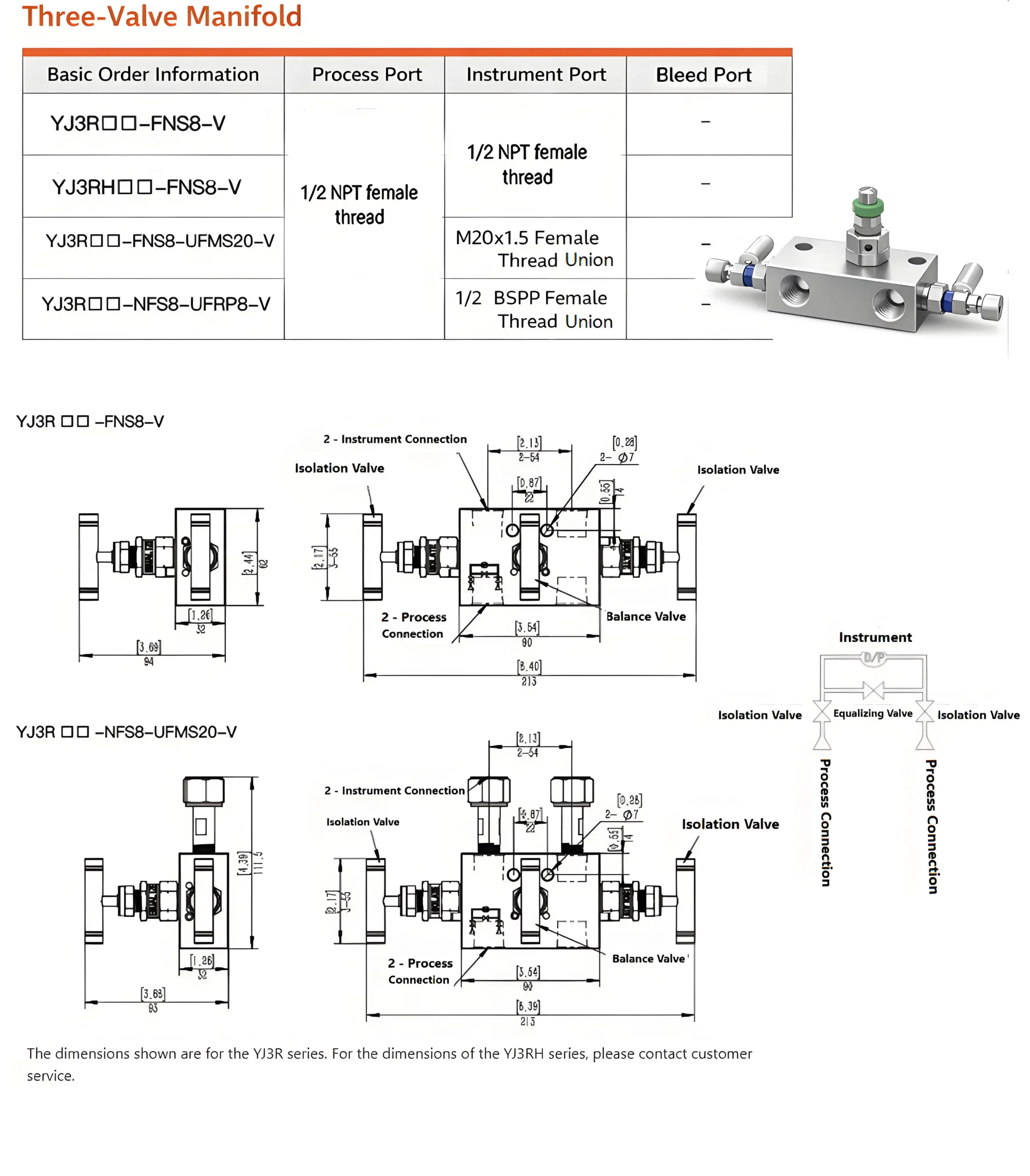

Installation and Application Configuration
The remote-mount 3-valve manifold is suitable for:
- Differential pressure transmitters
- Pressure measurement pipelines
- Industrial instrumentation calibration systems
Multiple connection adapters and mounting layouts support flexible integration into process control environments requiring safe isolation and equalization control.
