GAB05 Air Booster Pump

GAB02/05 Air Booster Pump
GAB02/05 Air Booster Pump

ürün tanıtımı

The Air Booster Pump is designed to work in environments where the original compressed air system is unable to meet the required pressure. This pump can increase the air pressure of the working system by 2 to 5 times, making it ideal for situations that need a boost in air pressure. The pump works by using compressed air from the existing system, and it is capable of operating continuously for extended periods of time without needing external power.

Pump housing is made from durable aluminum alloy or stainless steel, ensuring a robust structure. Additionally, all seals are imported for enhanced performance. These pumps are typically used in small household electrical appliances, bottle blowing in the injection molding industry, CNC machine tools, and more, serving functions such as air source boosting and voltage stabilization.

Teklif Al

Ürün Tanımı

The Air Booster Pump is a piston-type pump that uses compressed air to increase the air pressure in a system. Its operation principle involves compressing air, which is then used to amplify the pressure through the pump. This allows it to meet the needs of systems where air pressure needs to be amplified for various processes, such as in household appliances, injection molding, and CNC machinery.

The pump is simple to maintain and easy to operate, with minimal upkeep required. It works efficiently over long durations without failure, making it ideal for consistent use in both industrial and small-scale operations. This pump is known for its durable design, featuring high-quality materials that ensure longevity and reliability.

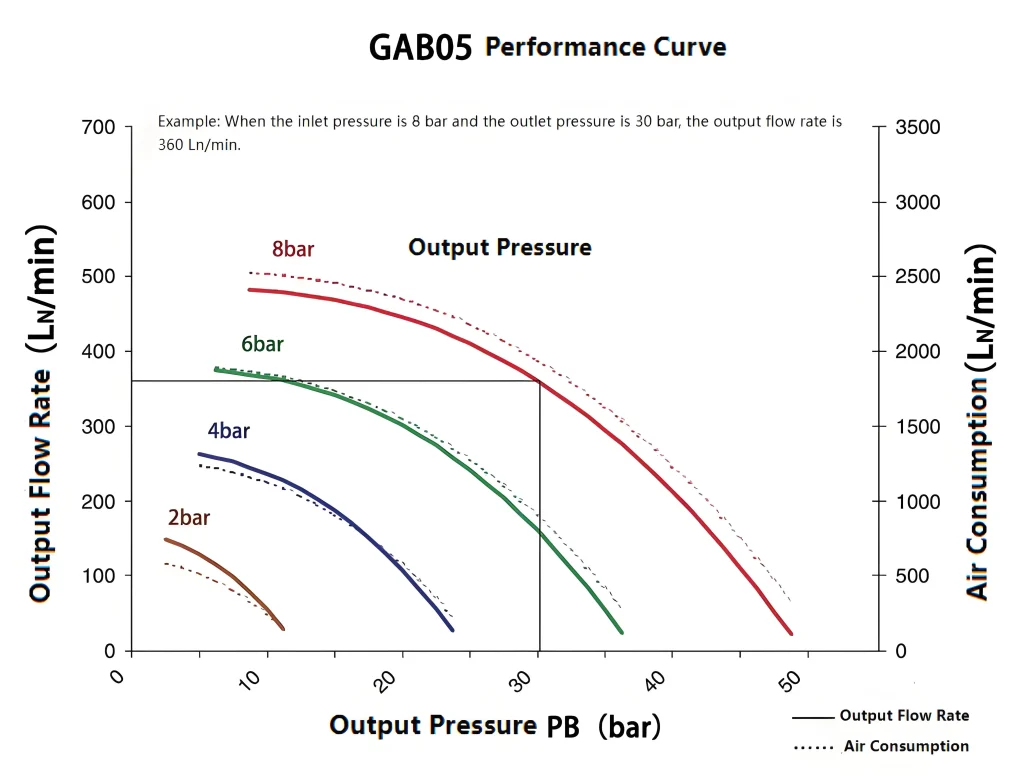

GAB 05 Air Booster Pump

Product Model GAB02 GAB05
Pressure Ratio 2:1 5:1
Minimum Gas Inlet Pressure PA bar 1 1
Maximum Gas Inlet Pressure PA bar 8 50
Gas Outlet Pressure PB bar 2PL 5PL
Maximum Gas Outlet Pressure PB bar 16 40
Air Drive Pressure PL bar 1-8 1-8
Drive Air Interface Size ZGI 1/2″ ZGI 1/2″
Medium Inlet Size ZGI 1/2″ ZGI 1/2″
Medium Outlet Size ZGI 1/2″ ZGI 1/2″
Booster Pump Material Aluminum Alloy / Stainless Steel Aluminum Alloy / Stainless Steel
Maximum Operating Frequency: times/min 60 60
Pump Stop Pressure PB 2PL PA+4PL
Maximum Operating Temperature °C 60 60
Net Weight kg 19 21
Standard Seals PTFE, FKM, NBR PTFE, FKM, NBR

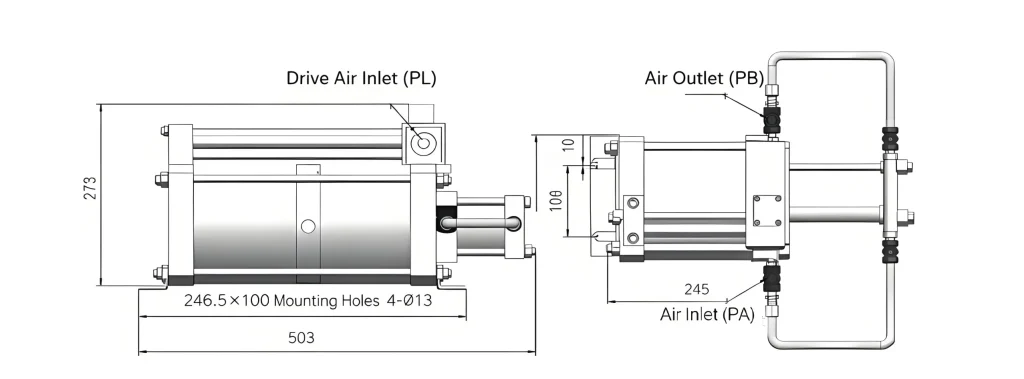

Length mm 457 503
Width mm 172 460
Height mm 273 273

Features and Functions

  • High Efficiency: The air booster pump is designed to increase the pressure of a working system from 2 to 5 times the original pressure, making it ideal for boosting air pressure in industrial and household applications.
  • Durable Construction: The housing of the pump is made from high-quality aluminum alloy or stainless steel, offering robust protection against wear and tear.
  • Simple Maintenance: The pump is designed to require minimal maintenance, providing ease of use and long-term reliability.
  • Continuous Operation: With an operating time that can stretch over extended periods, the air booster pump is perfect for applications that require consistent performance.
  • Versatility: The pump works well with various applications, such as air source boosting, machine tool purging, voltage stabilization, and many more.



Product Advantages

  • Long Life: The high-quality materials used in construction ensure that the pump lasts for a long time, even in demanding environments.
  • Cost-Effective: The pump is designed to be energy-efficient, providing a cost-effective solution for users who need air pressure amplification.
  • Easy to Use: With straightforward installation and simple operation, the pump is user-friendly and convenient for both industrial and domestic applications.
  • High Performance: Its ability to increase air pressure effectively allows it to be used in a wide range of industries, including injection molding, machine tool operations, and others.

If you’d like to learn more about other models, please contact our customer service team.



Our Company Strength

Vurgulamak gerekir ki, basınç testi ekipmanları ve akış kontrol test sistemlerinin tasarım ve üretimine odaklanıyoruz, hem standart modelleri hem de proje bazlı özelleştirme desteklemekteyiz.

  • Basınç testi ekipmanları ve pnömatik destek sistemlerine yönelik 16+ yıl odaklanma
  • Yıllık üretim kapasitesi: 1000+ ekipman seti
  • 8000+ müşteri hizmeti
  • ISO9001 tabanlı kalite yönetimi uygulanması ve stabil üretim kontrolü
  • Test masası yapılandırması, aparat eşleştirme ve teknik destek için güçlü mühendislik ekibi
  • Uluslararası alıcılarla teknik iletişim ve dokümantasyon desteği sunan ihracat deneyimi



Additional Sections

Applications

  • Suitable for a variety of industries such as injection molding, household appliances, laser cutting, CNC machinery, and more.
  • Used in industrial systems, machine tool maintenance, and various air boosting needs.
  • Widely applicable for cleaning, purging, and testing operations in diverse work environments.

Support and Service

  • We offer extensive support for installation, operation, and maintenance of the air booster pump.
  • Our customer service team is ready to assist with any queries, providing fast and reliable solutions.
