Marine PV Pressure Vacuum Valve Test Bench

product introduction

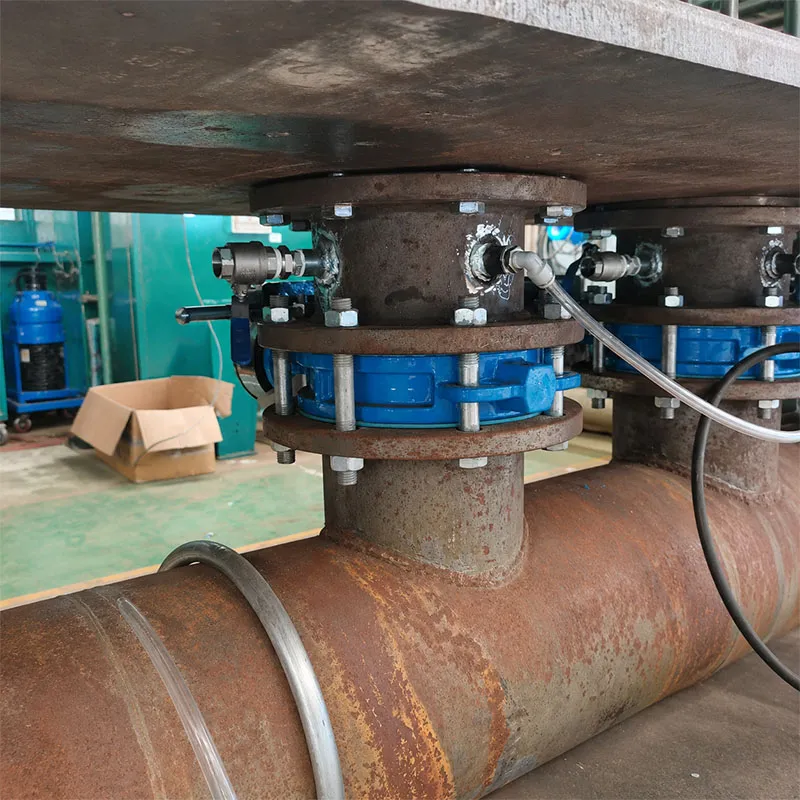

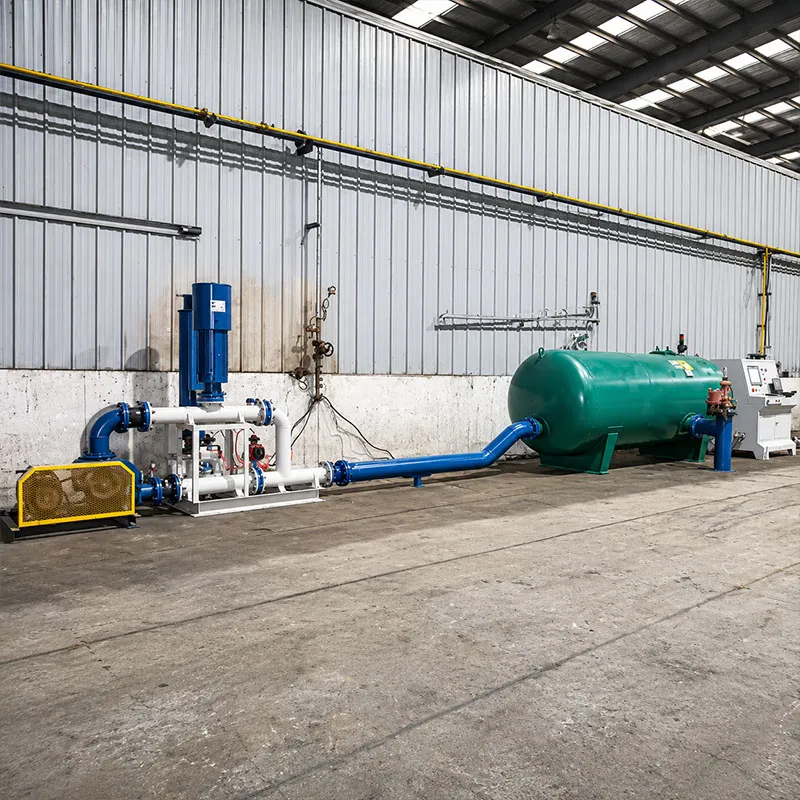

The Marine PV Pressure Vacuum Valve Test Bench is designed for the opening pressure testing of shipboard PV breathing valves used on storage tanks and marine cargo systems. The system is specially developed for DN50 to DN300 PV valves and uses air as the test medium. With a computer-based control system and data acquisition software, it is suitable for professional valve testing, inspection, and verification work. The model of this equipment is MST300-G-CD.

Get a Quote

Product Description

The Intelligent Automatic Pressure Oil Injection Machine is designed for automatic filling of pressure gauges using silicone oil or glycerin.

The equipment adopts Siemens PLC intelligent control and supports automatic metering and automatic filling. It can be configured with 4 stations or 2 stations.

The system includes an electronic scale, oil storage tank, heating device, oil pump, metering pump, induction device, oil filling station, and PLC control system. It can set flow rate, flow velocity, and filling volume, and supports automatic filling and stopping at each station.

Marine PV breathing valves play an important safety role in regulating internal tank pressure, especially in oil tankers and cargo tank systems. Valve failure may lead to equipment damage, unsafe pressure conditions, environmental risks, and operational losses. For this reason, regular testing is important for marine safety, compliance, and reliable operation.

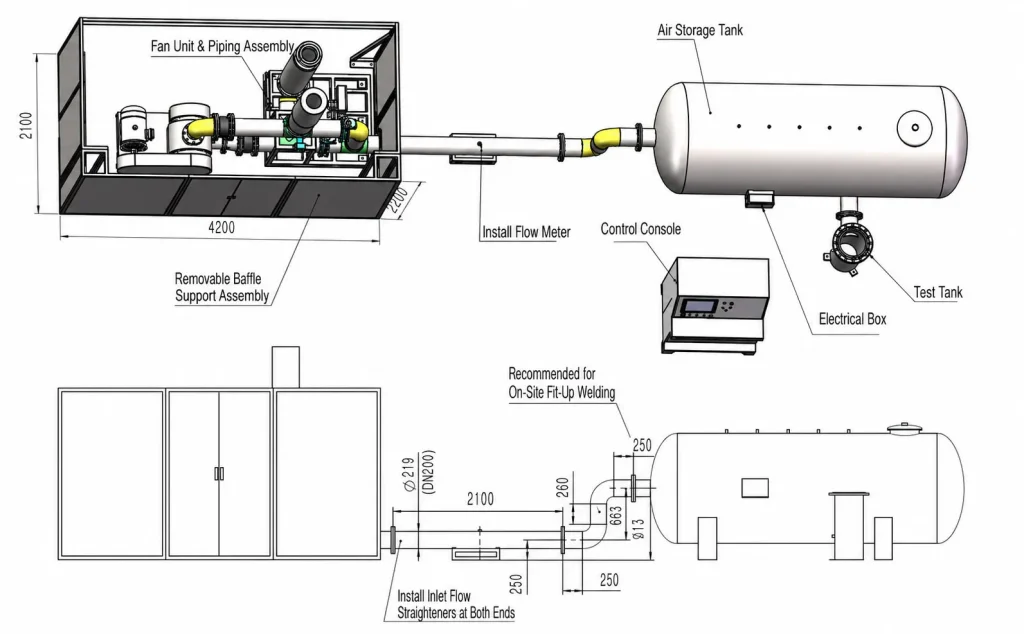

This PV valve test bench is a gas testing system developed according to SY/T 0511.1-2010, based on actual customer production and inspection requirements. It is used for the opening pressure detection of PV breathing valves for tank accessories. The system supports valve sizes from DN50 to DN300, with a pressure measurement range of -30 to 30 kPa and a maximum air flow of 13 m³/min. The control system uses a computer + acquisition card + control software configuration, helping users complete stable and organized testing procedures.

Item	Specification
Product Name	Marine PV Pressure Vacuum Valve Test Bench
Model	MST300-G-CD
Product Type	Gas Testing Equipment
Application	PV Pressure Vacuum Valve Testing for Tank Accessories
Test Item	Opening Pressure Test
Applicable Valve Size	DN50–DN300
Pressure Measurement Range	-30 to 30 kPa
Maximum Air Flow	13 m³/Min
Power Supply	AC380V 18KW
Control System	Computer + Acquisition Card + Control Software
Test Medium	Air

Features and Functions

Designed for marine PV pressure vacuum valve testing applications
Used for opening pressure detection of PV breathing valves
Suitable for valve sizes from DN50 to DN300
Pressure measurement range: -30 to 30 kPa
Maximum air flow: 13 m³/min
Test medium: air
Power supply: AC380V, 18KW
Control system: computer + acquisition card + control software
Developed according to SY/T 0511.1-2010 standard
Suitable for customer production, inspection, and test requirements

Product Advantages

Designed for Marine PV Valve Testing
Built specifically for the testing of shipboard PV breathing valves used in pressure control applications.
Suitable for Multiple Valve Sizes
Supports PV valve testing from DN50 to DN300, helping users handle a practical size range in one system.
Computer-Based Test Control
The combination of computer, acquisition card, and software helps provide a more organized and efficient testing process.
Gas Testing Configuration
Uses air as the test medium and provides a maximum air flow of 13 m³/min, suitable for this type of valve testing task.
Supports Safety and Compliance Needs
Regular testing of PV breathing valves is important for ship safety, environmental compliance, and reliable operation, which makes this equipment valuable for inspection and verification work.

Application Scenarios

Marine Tank Accessory Inspection

Suitable for the testing of PV breathing valves used in marine tank systems and related storage tank accessories.

Shipyard and Marine Equipment Workshops

Can be used in workshop environments where PV breathing valves require inspection, verification, or commissioning before service.

Factory Testing and Customer Inspection

Suitable for manufacturers or inspection departments that need to perform opening pressure testing on PV valves according to production or verification requirements
