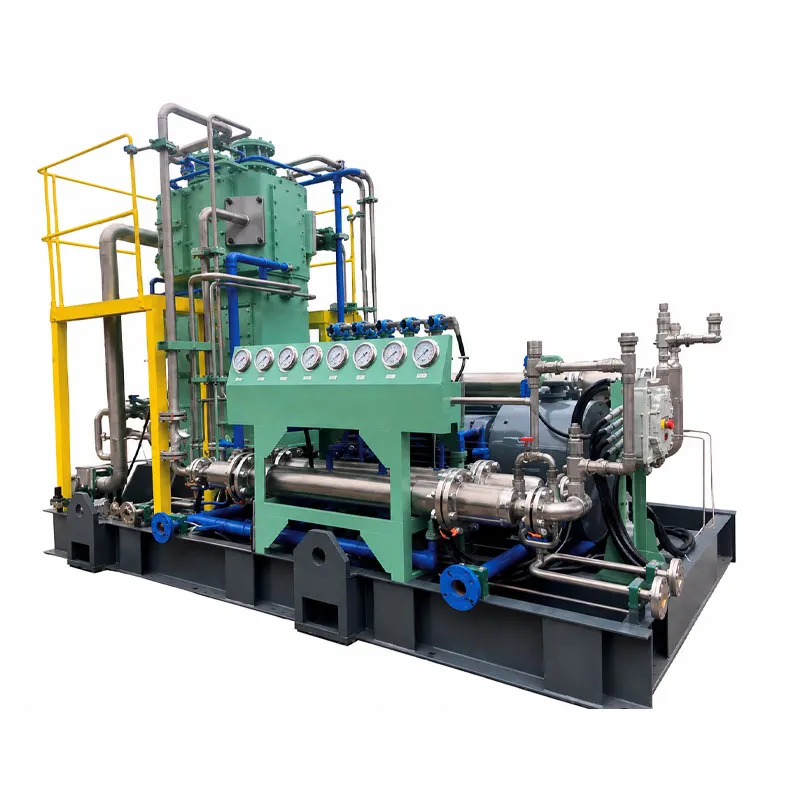

H2-Booster-Kompressor

Funktionen und Merkmale

• Hydrogen Gas Pressurization Function
  Used to increase H2 pressure after gas separation, purification, or gas source recovery equipment.
• Oil-Free / Oilless Compression Structure
  Designed with an oil-free compression structure for hydrogen gas handling applications.
• Luftgekühlt oder wassergekühlt
  Available in air-cooled or water-cooled configuration according to different operating conditions.
• Defined Operating Parameters
  Power range ≤110 kW, speed range 200–600 r/min, intake pressure ≤8.2 MPa, exhaust pressure ≤15 MPa, and compression stage 1–4.
• Multi-Stage Compression Configuration
  The compressor can be configured with 1–4 compression stages based on inlet pressure and required outlet pressure.
• Industrial Hydrogen Application Scope
  Applicable to hydrogen purification, gas source recovery, chemical engineering, food-related processing, medicine-related applications, and industrial gas pressurization.

Produktvorteile

1. Oil-Free Hydrogen Compression

The oilless design is suitable for hydrogen gas boosting applications where oil contamination control is important for process stability and gas handling.

2. Suitable for Gas Separation and Recovery

The compressor can be used after gas separation, purification, or gas source recovery equipment to increase hydrogen pressure for downstream industrial use.

3. Air-Cooled or Water-Cooled Options

Both air-cooled and water-cooled types are available, helping buyers select a configuration that matches their plant layout, cooling resources, and operating environment.

4. High-Pressure Boosting Capability

With intake pressure ≤8.2 MPa and exhaust pressure ≤15 MPa, the compressor supports high-pressure hydrogen gas pressurization within the provided operating range.

5. 1–4 Stage Compression Configuration

The compression stage can be configured from 1 to 4 stages according to inlet pressure, outlet pressure, and pressure ratio requirements.

6. Project-Based System Configuration

The compressor can be configured based on hydrogen flow, cooling method, pressure target, installation condition, and process requirements for B2B industrial projects.
