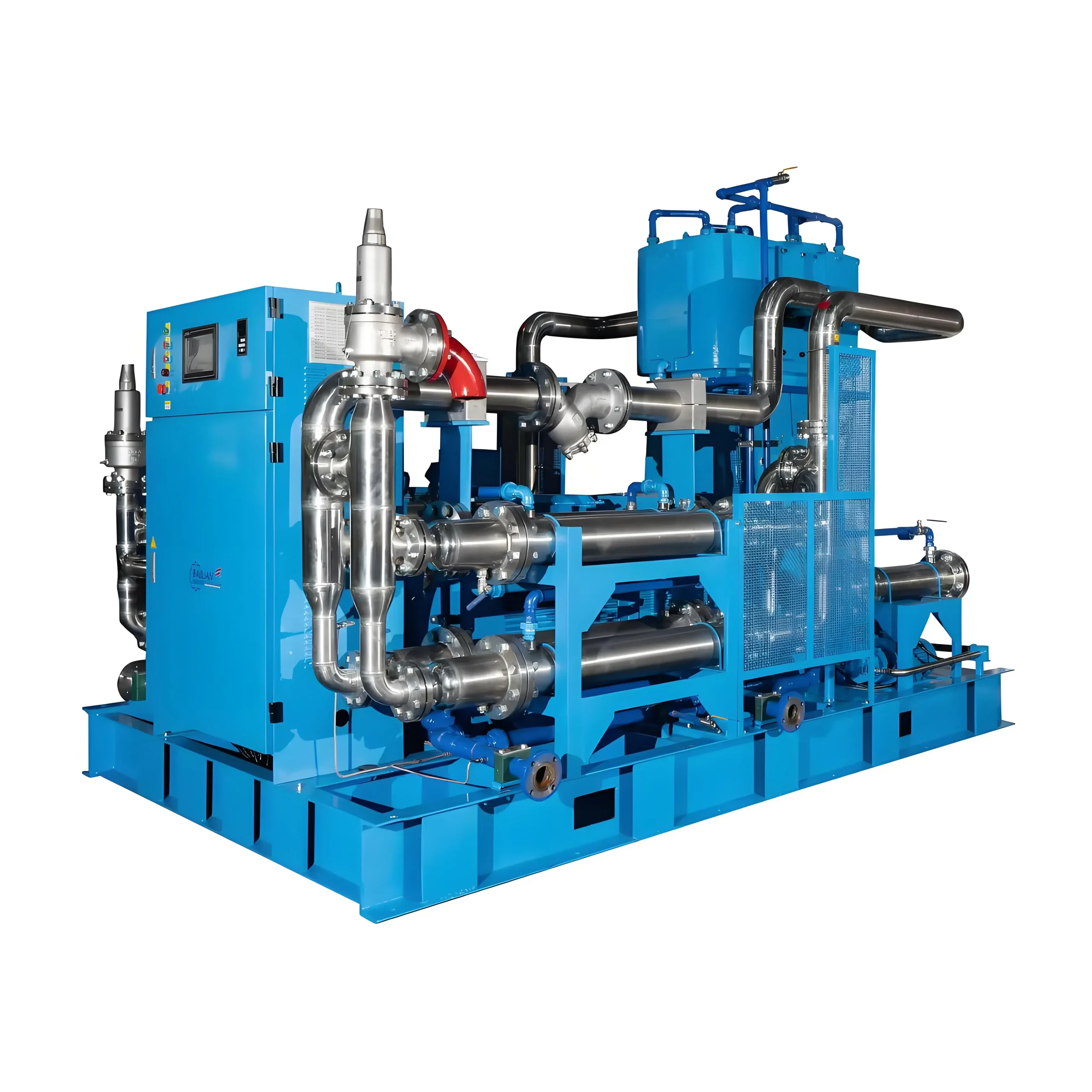

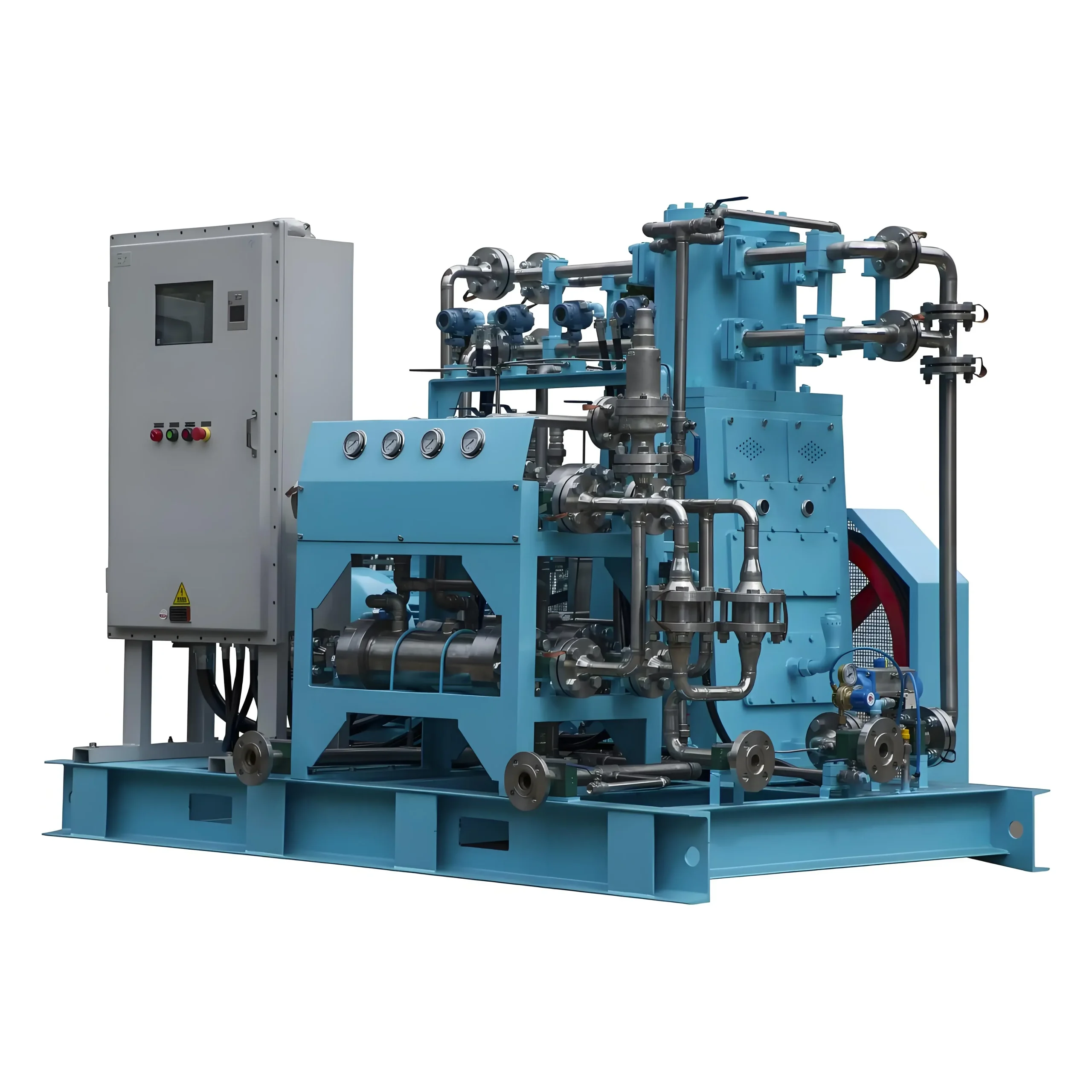

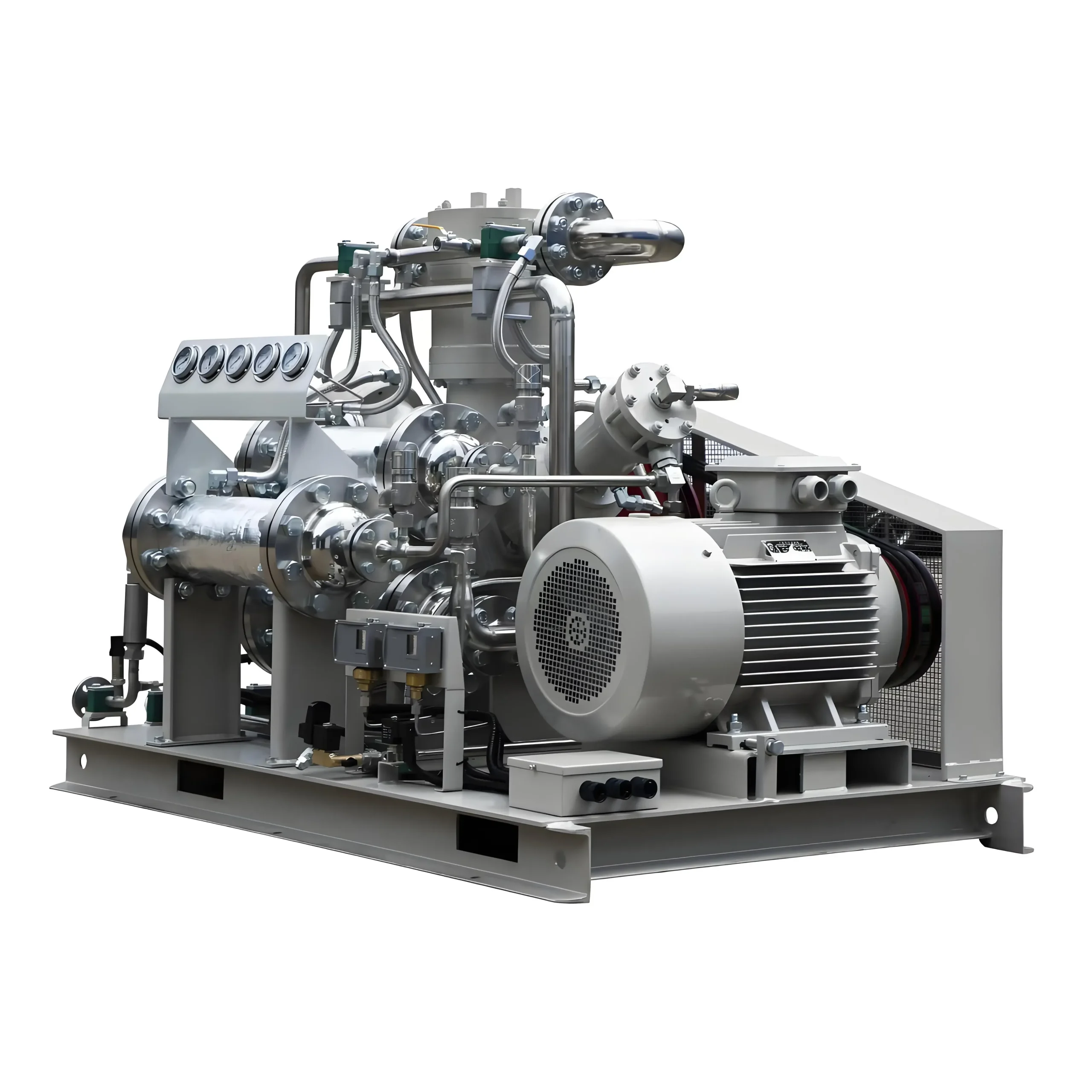

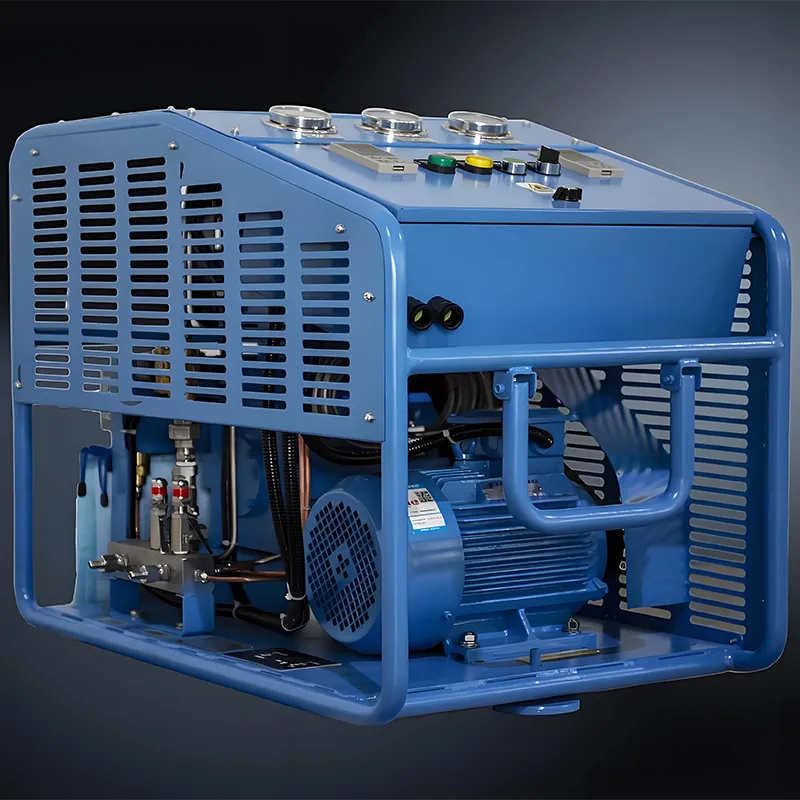

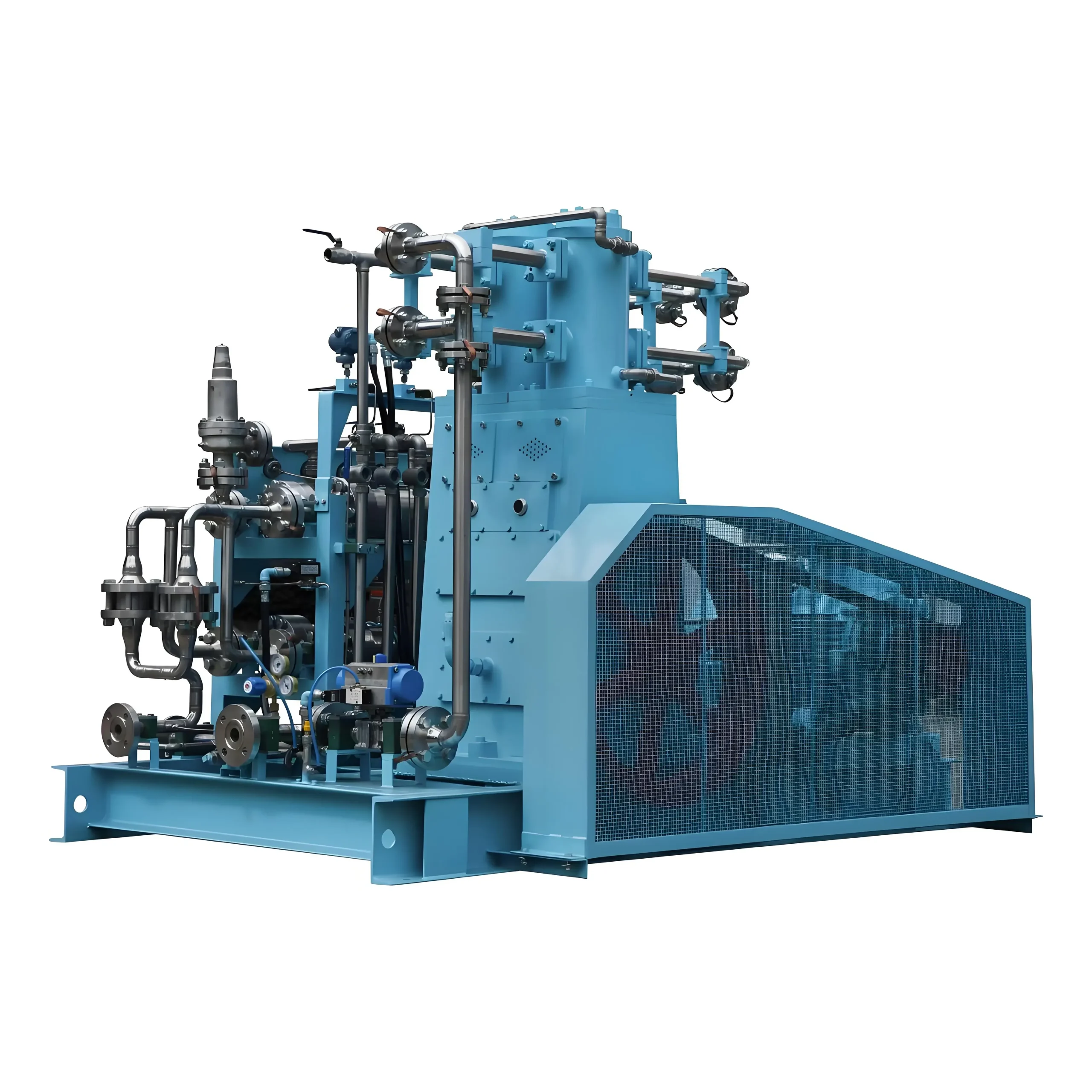

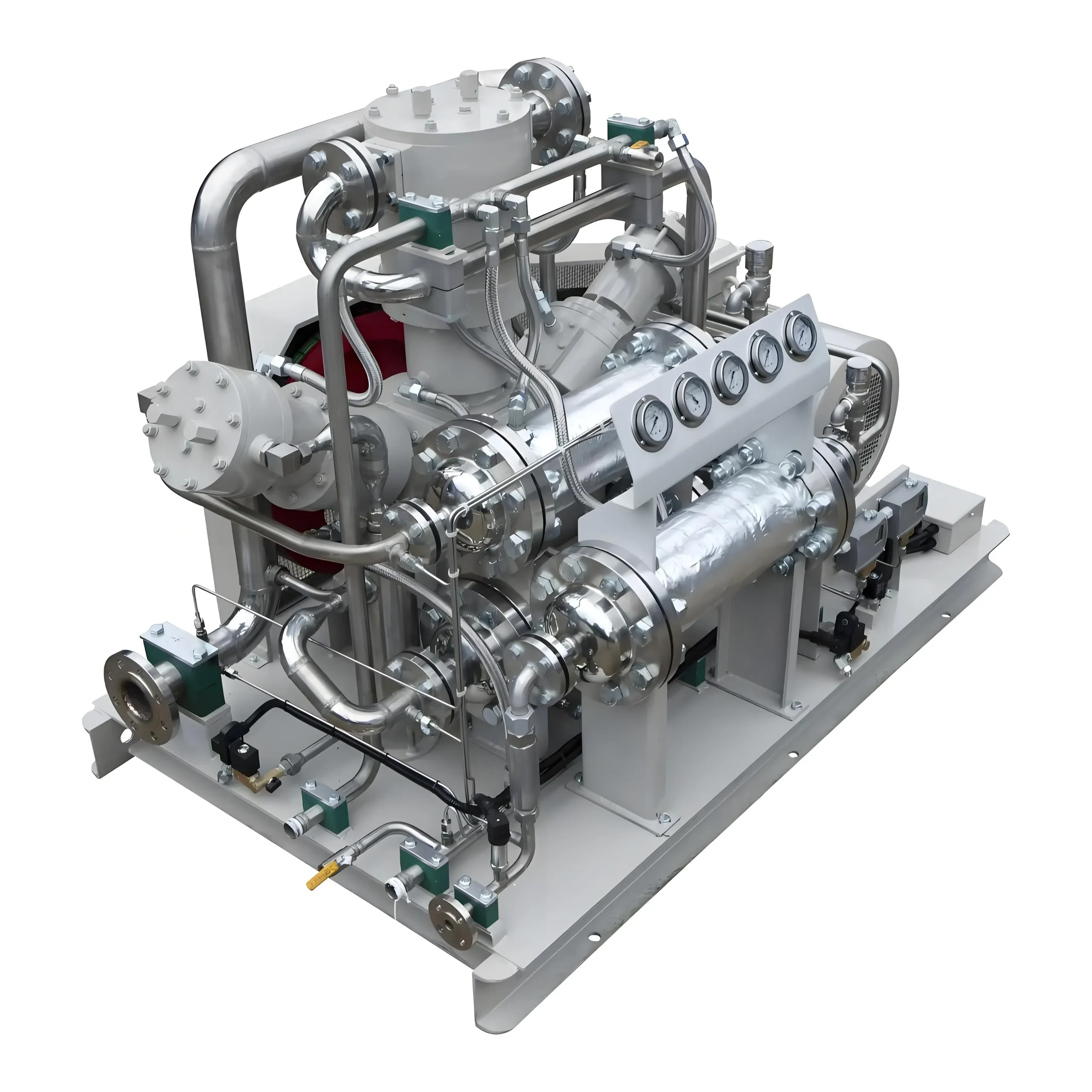

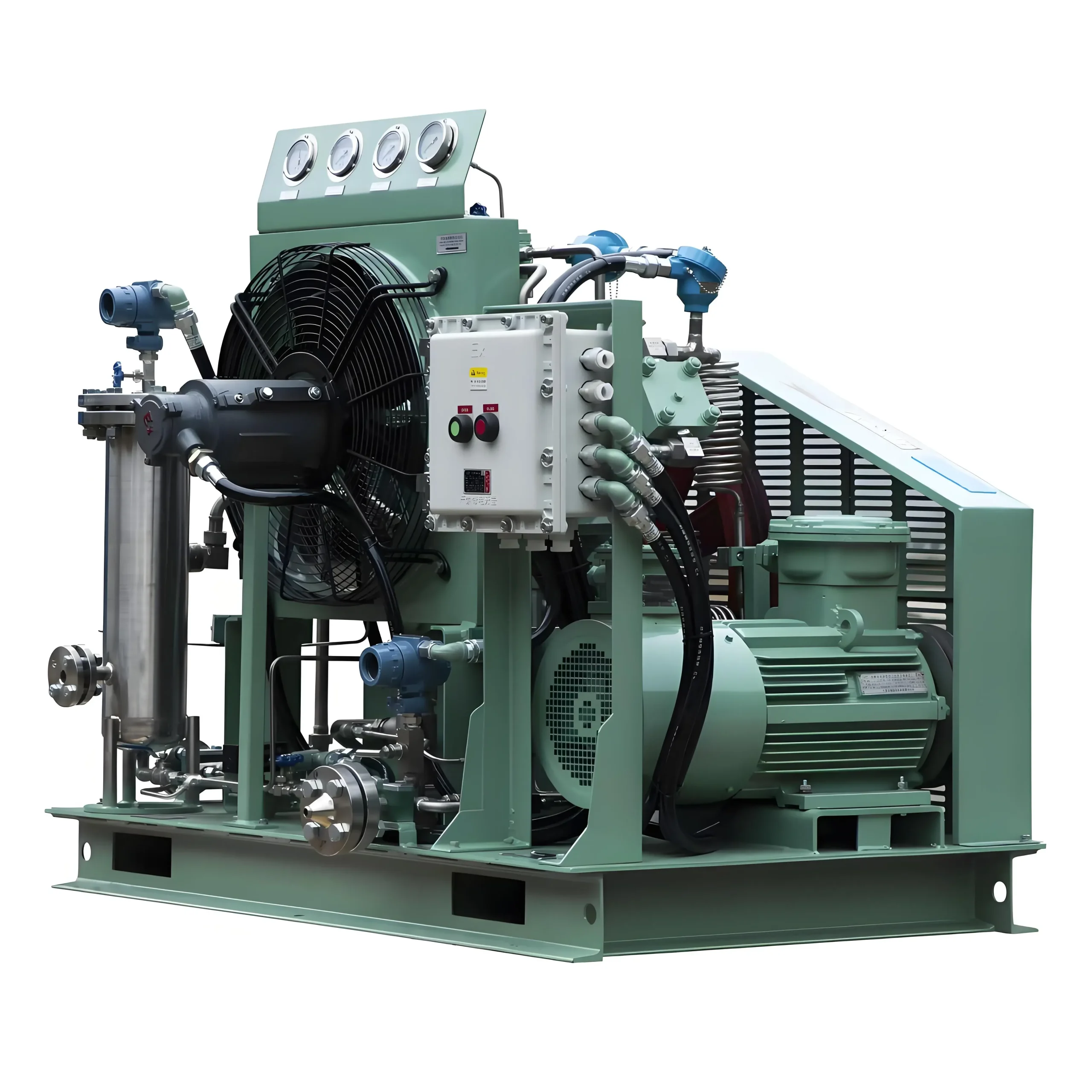

The Oilless High Pressure O2 Compressor is developed for oxygen compression applications where equipment safety, stable performance, and clean gas handling are critical. The compressor adopts an oilless design concept and is configured for high-pressure oxygen boosting with controlled compression stages.
The series uses a low-speed, heavy-load design to help extend the service life of easily worn parts while reducing noise and vibration during operation. Its smaller pressure ratio design helps control suction pressure, discharge pressure, and exhaust temperature at each stage. If abnormal temperature conditions occur, the machine is designed to shut down for safer operation.
The system also uses large-diameter, low-flow-rate pipeline valve design to support smoother gas flow and enhance the safety and stability of the oxygen compression process. Model selection can be customized according to inlet pressure, final discharge pressure, capacity, cooling method, and site installation requirements.
| Parameter | GOW-(1-3)/(3-4)-150 | GOW-(4-12)/ (3-4)-(150-200) | GOW-(16-60)/ (3-4)-(150-200) |
| Suction Pressure (MPa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Discharge Pressure (MPa) | 15 | 15-20 | 15-20 |
| Capacity (Nm³/h) | 1-3 | 4-12 | 16-60 |
| Pressure Stage | 2 | 4 | 4 |
| Power (kW) | 1.5-3 | 3-7.5 | 11-18.5 |
| Kühlverfahren | Air Cooling | Air Cooling | Air / Water Cooling |
| Dimensions (mm) | 700 × 650 × 650 | 1000 × 750 × 1150 | 1650 × 950 × 1470 |
| Weight (kg) | 140 | 320 | 960 |
| Parameter | GOW-(60-150)/(3-4)-(150-300) | GOWD-(5-15)/(3-4)-(150-350) |
| Suction Pressure (MPa) | 0.3-0.4 | 0.3-0.4 |
| Discharge Pressure (MPa) | 15-30 | 15-35 |
| Capacity (Nm³/h) | 60-150 | 5-15 |
| Pressure Stage | 4 | 4 |
| Power (kW) | 22-45 | 4-7.5 |
| Kühlverfahren | Air / Water Cooling | Air Cooling |
| Dimensions (mm) | 2100 × 1100 × 1600 | 1050 × 750 × 1020 |
| Weight (kg) | 2000 | 450 |
Funktionen und Merkmale:
- Supports Oil-Free Oxygen Compression For Clean And Stable High-Pressure O2 Supply
- Boosts Oxygen From 0.3–0.4MPa Suction Pressure To 15–35MPa Discharge Pressure
- Multi-Stage Compression Design With 2-Stage And 4-Stage Options For Stable Pressure Output
- Low-Speed And Heavy-Load Structure Helps Reduce Noise, Vibration, And Wear Of Key Parts
- Small Pressure Ratio Design Supports Better Control Of Each Compression Stage
- Suction Pressure, Discharge Pressure, And Exhaust Temperature Are Controlled During Operation
- Automatic Shutdown Protection Helps Improve Safety When Abnormal Temperature Occurs
- Large-Diameter And Low-Flow-Rate Pipeline Valve Design Enhances Gas Flow Stability And Operational Safety
- Air Cooling And Air/Water Cooling Options Are Available According To Different Models
- Multiple Model Configurations Cover Different Capacity, Power, Dimension, And Installation Requirements
Produktvorteile
1. Oil-Free Design for Oxygen Compression
The oilless structure is suitable for oxygen applications where gas cleanliness and system safety are important. It helps reduce the risk of oil contamination in the oxygen compression process.
2. High Pressure Output Up to 35 MPa
The provided model range covers discharge pressure from 15 MPa to 35 MPa, allowing buyers to select a high pressure oxygen compressor based on their required final pressure.
3. Multi-Stage Compression for Stable Operation
The series includes 2-stage and 4-stage compression options. Multi-stage compression helps manage pressure rise step by step, supporting smoother high-pressure oxygen boosting.
4. Low-Speed Heavy-Duty Design
The compressor is designed with low-speed and heavy-load operation in mind. This helps reduce vibration and noise while supporting longer service life for wearing parts.
5. Controlled Pressure and Temperature Safety Logic
The compressor design considers suction pressure, discharge pressure, and exhaust temperature at each stage. Abnormal temperature shutdown protection helps improve operational safety.
6. Flexible Cooling and Model Selection
Air-cooled and air/water-cooled options are available depending on model configuration. Buyers can choose suitable models according to capacity, power, cooling conditions, and installation space.
Unsere Unternehmensvorteile
Highlight konzentriert sich auf das Design und die Herstellung von Druckprüfgeräten und Systemen zur Fluidkontrolle, unterstützt sowohl Standardmodelle als auch projektbasierte Anpassungen.
- Über 16 Jahre Erfahrungen mit Druckprüfgeräten und pneumatischen Hebesystemen
- Jährliche Produktionskapazität: 1000+ Geräte
- Über 8000 Kunden bedient
- Implementierung eines auf ISO9001 basierenden Qualitätsmanagementsystems und stabile Fertigungskontrolle
- Starkes Ingenieurteam für die Konfiguration von Testbänken, Anpassung von Vorrichtungen und technischen Support
- Erfahrung im Export zur Unterstützung internationaler Käufer mit technischer Kommunikation und Dokumentation
