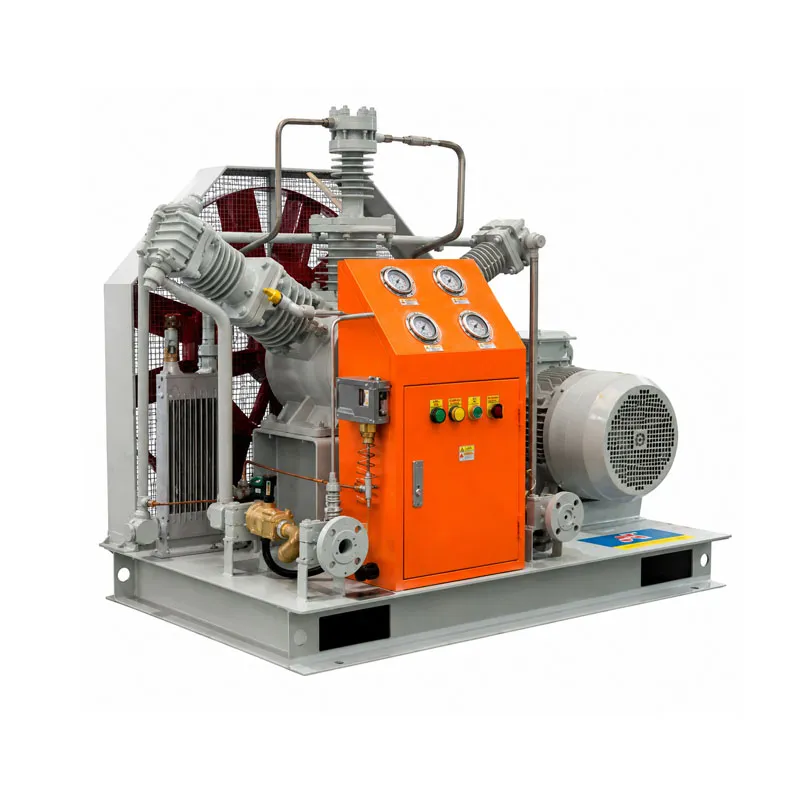

N2 Booster Compressor

Functions And Characteristics

• Nitrogen Gas Pressurization
  Designed to boost N2 pressure after nitrogen generation, gas separation, or upstream gas supply equipment for downstream industrial process use.
• Air-Cooled or Water-Cooled Type
  Available with air-cooled or water-cooled configuration to match different site conditions and operating requirements.
• Wide Flow and Pressure Range
  Supports a flow range of 3–1000 Nm³/h, intake pressure ≤2.5 MPa, and exhaust pressure ≤35 MPa for industrial nitrogen boosting applications.
• 1–4 Stage Compression Design
  Configurable compression stages help meet different inlet pressure, outlet pressure, and pressure ratio requirements.
• Compact Skid-Mounted Structure
  Integrated with compressor unit, motor, control cabinet, pressure gauges, piping, and base frame for easier installation and system coordination.
• Customizable for Industrial Applications
  Suitable for gas separation, chemical engineering, food-related processing, and industrial nitrogen supply systems, with configuration based on actual working conditions.

Produktvorteile

1. Designed for Nitrogen Gas Pressurization

The product is focused on N2 boosting applications, making it suitable for buyers who need a dedicated nitrogen booster compressor for gas separation, chemical engineering, food-related processing, and industrial gas supply systems.

2. Configurable Cooling Method

Air-cooled and water-cooled options are available according to the provided specification. This helps buyers choose a configuration that better matches their site conditions and cooling resources.

3. Wide Flow and Pressure Coverage

With a provided flow range of 3–1000 Nm³/h and exhaust pressure up to 35 MPa, the compressor can support different nitrogen boosting requirements across multiple industrial processes.

4. Multi-Stage Compression Design

The 1–4 stage compression range allows the system to be configured according to inlet pressure, target outlet pressure, and pressure ratio requirements.

5. Compact Skid-Mounted Package

The visible product structure includes a base frame, compressor unit, motor, control cabinet, pressure gauges, and pipeline arrangement. This integrated layout helps simplify installation planning and equipment coordination.

6. Custom Engineering Support

Highlight can provide gas boosting and pressure system configuration support based on actual working conditions, including nitrogen source pressure, required outlet pressure, flow rate, cooling method, and control preferences.

Unsere Unternehmensvorteile

Highlight konzentriert sich auf das Design und die Herstellung von Druckprüfgeräten und Systemen zur Fluidkontrolle, unterstützt sowohl Standardmodelle als auch projektbasierte Anpassungen.

• Über 16 Jahre Erfahrungen mit Druckprüfgeräten und pneumatischen Hebesystemen
• Jährliche Produktionskapazität: 1000+ Geräte
• Über 8000 Kunden bedient
• Implementierung eines auf ISO9001 basierenden Qualitätsmanagementsystems und stabile Fertigungskontrolle
• Starkes Ingenieurteam für die Konfiguration von Testbänken, Anpassung von Vorrichtungen und technischen Support
• Erfahrung im Export zur Unterstützung internationaler Käufer mit technischer Kommunikation und Dokumentation
