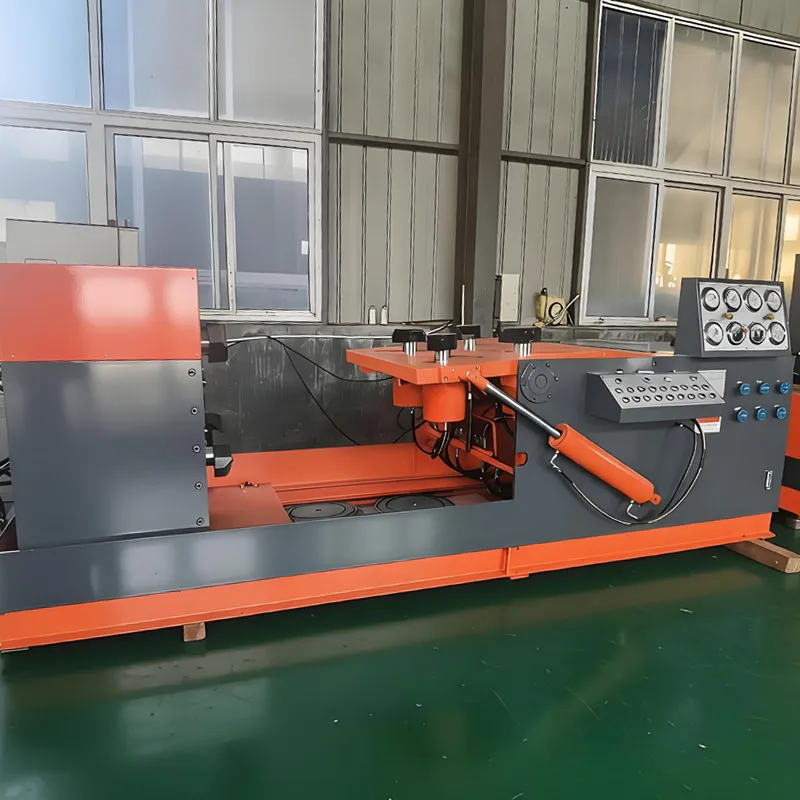

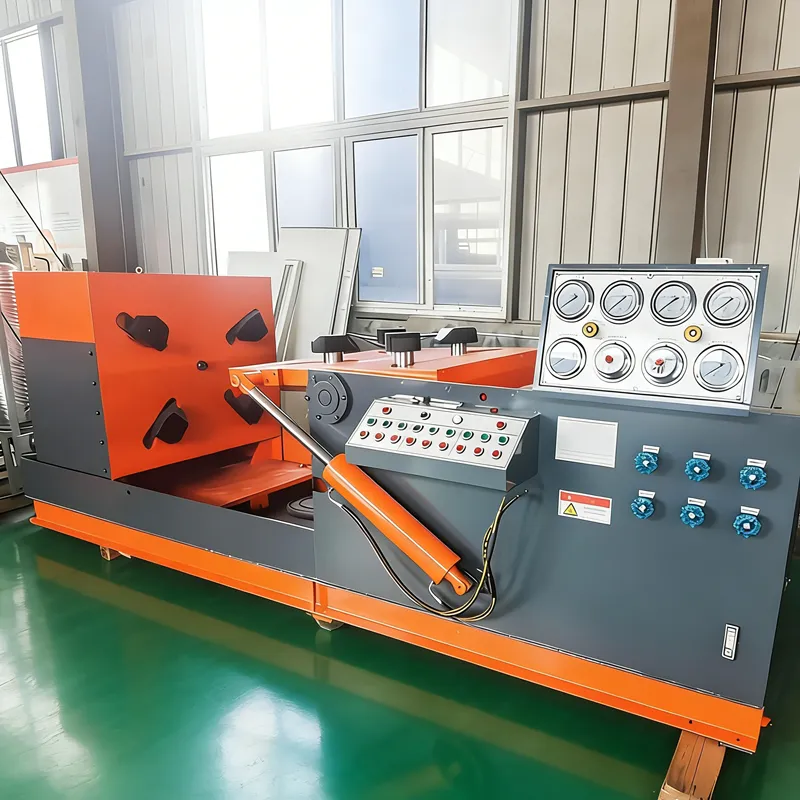

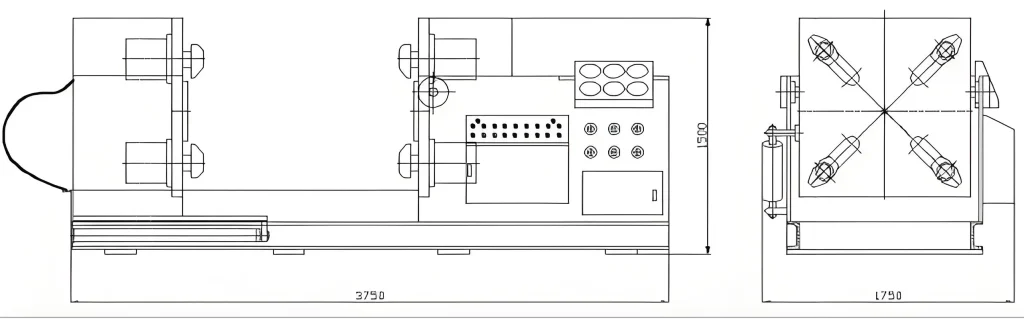

The MHV-HB600/24-S integrates hydraulic clamping, electrical control, and high/low pressure water supply into a single test station. The horizontal layout simplifies loading and positioning of large flange valves, while the claw clamp mechanism presses and fixes the valve at the flange end face to maintain stable sealing conditions during testing.
To improve operating convenience for large valves, the worktable design supports 90° rotation and left–right movement, making it easier to access sealing interfaces and adapt to different valve face-to-face lengths. The overall structure is engineered to meet workshop hydrostatic test and sealing test procedures for DN250–DN600 valves.
| Categoría | Artículo | Especificación |
| General | Tipo de producto | Banco de pruebas de válvulas de pinza horizontal |
| General | Modelo | MHV-HB600/24-S |
| General | Gama de tamaños de válvula | DN250–DN600 (250–600 mm) |
| Pressure Capability | Max Test Pressure Range | Up to 24.0 MPa (depends on valve size & nominal pressure class) |
| Medio de Prueba | Medio de prueba hidrostática | Agua |
| Low-Pressure Test | Condición de estanqueidad a baja presión | 4–7 bar (as specified in the technical notes) |
| Sellado | Sellado de válvulas y placas ciegas | Junta tórica de estanqueidad |
| Mechanical Range | Valve Face-to-Face Length | 610–1067 mm |
| Mechanical Range | Diámetro exterior de la brida | 460–840 mm |
| Mechanical Range | Gama de espesores de brida | 26–70 mm |
| Movimiento | Rotación de la mesa de trabajo | 90° rotation |
| Movimiento | Worktable Width/Spacing Range | 450–1500 mm |
| Sujeción | Clamp Cylinders (Left/Right) | 4 × Ø180 mm |
| Sujeción | Fuerza de sujeción máxima | 200 tons |
| Tamaño de la válvula | Rango de presión nominal | Rango de presión de prueba |
| DN250 | 1,6–16,0 MPa | 1,6–24,0 MPa |
| DN300 | 1,6-10,0 MPa | 1,6-15,0 MPa |
| DN350 | 1,6–6,4 MPa | 1,6-9,6 MPa |
| DN400 | 1,6-4,0 MPa | 1.6–6.0 MPa |
| DN450 | 1,6-4,0 MPa | 1.6–6.0 MPa |
| DN500 | 1,6–2,5 MPa | 1,6–3,75 MPa |
| DN600 | 1,6–2,5 MPa | 1,6–3,75 MPa |
Características y funciones del producto
- Heavy-duty horizontal claw clamp structure for DN250–DN600 flange valves
- End-face O-ring sealing between valve and blind plate, suitable for standard workshop sealing requirements
- Supports hydrostatic strength testing and high-pressure sealing testing workflows
- Supports 4–7 bar low-pressure tightness test condition as required in the procedure
- 90° rotatable worktable for better access during sealing and tightness inspection
- Left–right worktable movement to adapt to different valve lengths without re-fixturing
- High clamping capacity (200 tons) for stable holding during large-valve pressure tests

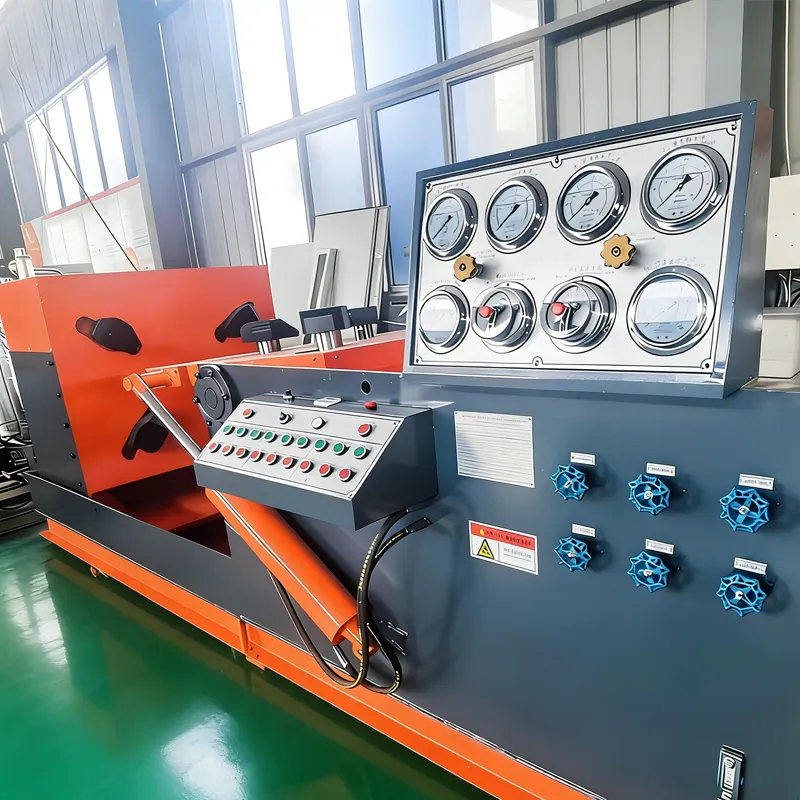

- Integrated station structure combining hydraulic system, control cabinet, and test circuits
Ventajas del producto
- Stronger clamping and wider mechanical range for large valve bodies (DN250–DN600)
- Stable hydrostatic test workflow with size-matched pressure capability
- Improved operability through rotation and movement functions, reducing handling difficulty for large valves
- Broad flange compatibility across multiple flange OD and thickness ranges
- Workshop-ready design for repeatable valve pressure testing, sealing verification, and inspection preparation
La fuerza de nuestra empresa
Highlight is a professional manufacturer focused on pressure testing equipment and fluid control testing systems, supporting both standard production models and project-based configurations.
- 16+ years of experience in pressure testing and boosting equipment
- Capacidad de producción anual: más de 1.000 equipos
- Más de 8000 clientes atendidos
- Engineering team with extensive experience in test bench configuration and system integration
- Stable manufacturing process and quality control for long-term industrial use
- Export support experience for international buyers (documentation, configuration communication, and technical assistance)

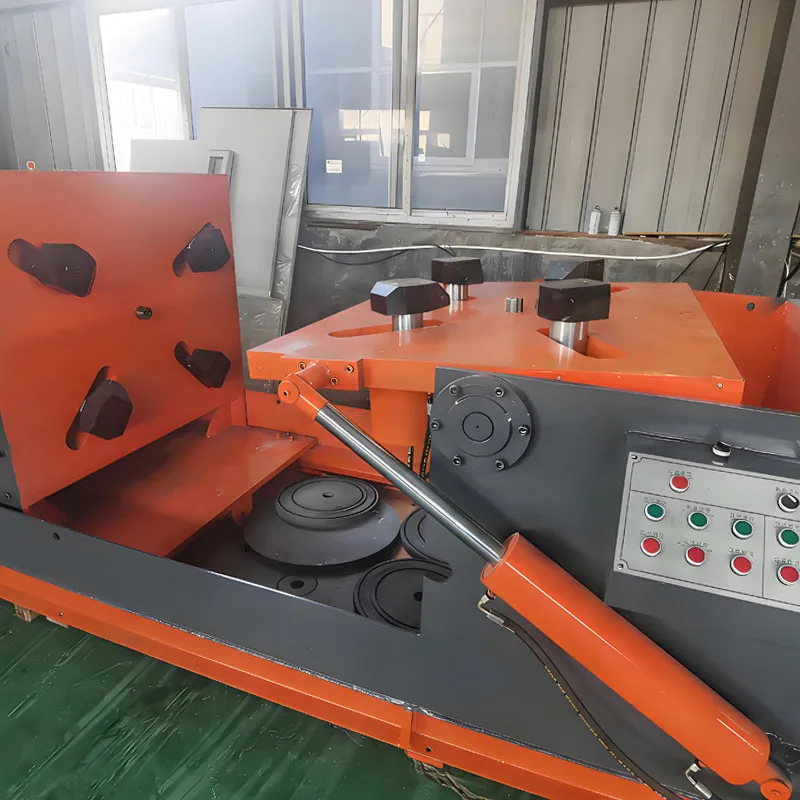

Clamping and Worktable Design Logic
To improve repeatability and handling efficiency for large valves, the MHV-HB600/24-S applies a combined mechanical structure:
- Claw clamp pressing on flange end face: ensures stable positioning during pressure buildup and reduces movement risk under test pressure.
- High-capacity hydraulic clamping system (200 tons): designed for large-size valves and higher holding requirements.
- 90° rotatable worktable: improves accessibility for sealing inspection, tool positioning, and valve handling.
- Wide mechanical adaptability: supports valve length 610–1067 mm, flange OD 460–840 mm, and flange thickness 26–70 mm, covering typical DN250–DN600 flange valve formats.
