The MHV-HD300/37.5-S integrates hydraulic system, electrical control system, high/low pressure water supply system, and test fixtures into one horizontal test station. The bench adopts a horizontal top-press structure, where the top-press cylinder applies stable clamping force directly onto the test fixture, ensuring reliable positioning and sealing conditions during pressurization.
The system uses end-face O-ring sealing between the valve and blind plate to meet standard sealing requirements. Test pressure is generated through a combined pressure supply approach: the low-pressure water pump provides initial pressurization, and the high-pressure water circuit works with a pneumatic drive source (4–7 bar) to reach the required high-pressure testing range.
| Categoría | Artículo | Especificación |
| General | Tipo de producto | Banco de pruebas horizontal con válvula de presión superior |
| General | Modelo | MHV-HD300/37.5-S |
| General | Gama de tamaños de válvula | DN50–DN300 (50–300 mm) |
| Sellado | Sellado de válvulas y placas ciegas | Junta tórica de estanqueidad |
| Medio de Prueba | Medio de prueba hidrostática | Agua |
| Medio de Prueba | Low-Pressure Gas Tightness Condition | 4-7 bar (aire o nitrógeno) |
| Elementos de prueba | Alcance de la prueba | Ensayo de resistencia de la carcasa a 1,5 veces el valor PN; ensayo de estanqueidad a alta presión a 1,1 veces el valor PN; ensayo de estanqueidad al gas a baja presión entre 4 y 7 bar |
| Mecánica | Longitud entre caras de la válvula sometida a ensayo | 230–762 mm |
| Mecánica | Rango de separación de los discos de sellado | 150–850 mm |
| Mecánica | Recorrido interior de la varilla de tracción | 650 mm |
| Cilindro | Cilindro de presión superior | Ø220 mm × 1 set |
| Sujeción | Fuerza de sujeción máxima | 110 tons |
Notes:

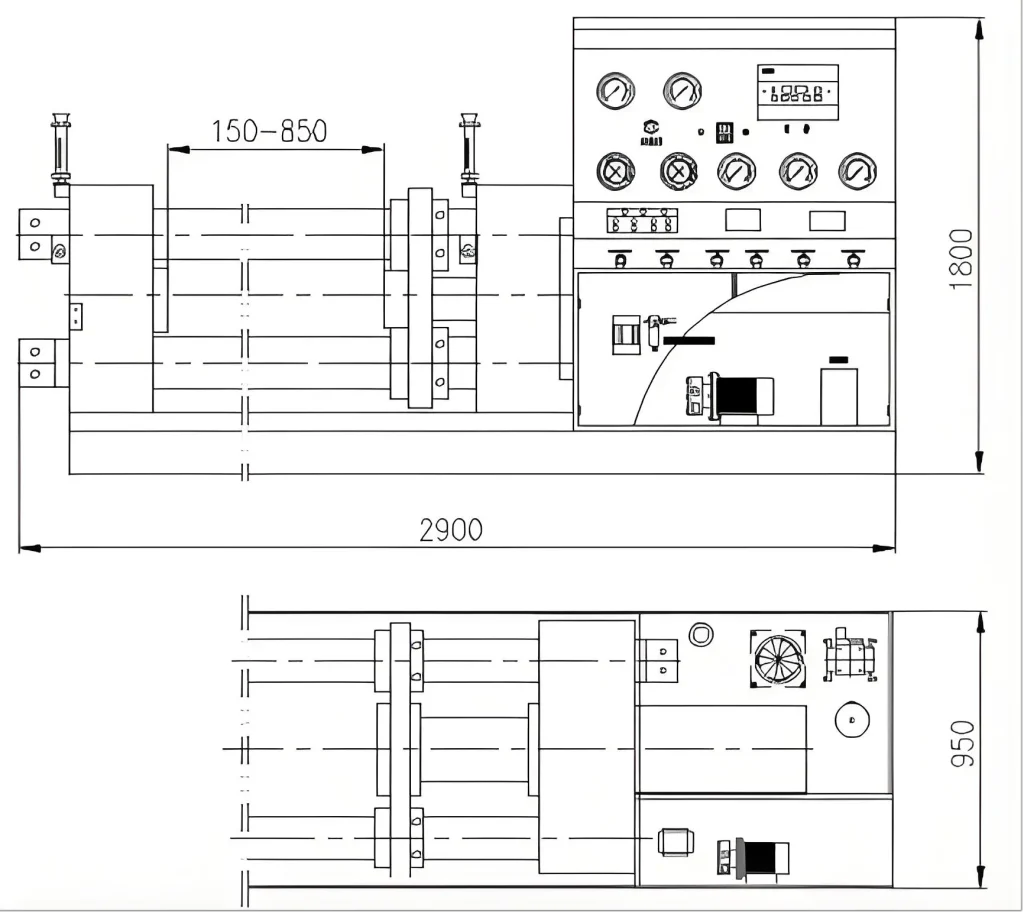

Size and layout values follow the provided layout/parameter pages; project-specific fixture details can be configured according to valve form and connection.
Pressure capability varies by valve size and nominal pressure rating—for details, please refer to the table below.
| Tamaño de la válvula | Rango de presión nominal | Rango de presión de prueba |
| DN50 | 1,6-25,0 MPa | 1,6-37,5 MPa |
| DN65 | 1,6-25,0 MPa | 1,6-37,5 MPa |
| DN80 | 1,6-25,0 MPa | 1,6-37,5 MPa |
| DN100 | 1,6-25,0 MPa | 1,6-37,5 MPa |
| DN150 | 1,6–16,0 MPa | 1,6–24,0 MPa |
| DN200 | 1,6-10,0 MPa | 1,6-15,0 MPa |
| DN250 | 1,6-10,0 MPa | 1,6-15,0 MPa |
| DN300 | 1,6–6,4 MPa | 1,6-9,6 MPa |
Características y funciones del producto
- Horizontal top-press clamping structure provides stable holding during pressure buildup and testing
- End-face O-ring sealing between valve and blind plate supports common workshop sealing requirements
Supports full inspection workflow:
- Ensayo hidrostático de resistencia de la carcasa (1,5× PN)
- Prueba de estanqueidad a alta presión (1,1× PN)
- Prueba de estanqueidad al gas a baja presión, entre 4 y 7 bar
- Wide mechanical adaptability for DN50–DN300 valves with face-to-face length coverage 230–762 mm
- Integrated station design combining hydraulic unit, electrical control cabinet, and test pressure circuits
- Designed for repeatable use in valve production inspection and maintenance verification environments
Ventajas del producto
- Higher clamping capacity (110 tons) improves safety and stability for DN50–DN300 pressure testing
- Clear test workflow coverage supports strength + sealing + tightness verification in one bench
- Practical sealing design (end-face O-ring) suitable for most workshop sealing test requirements
- Broad size compatibility reduces fixture change frequency across DN50–DN300 valve testing tasks
- Integrated system structure supports efficient daily QC operations and repeatable pressure test procedures
La fuerza de nuestra empresa
Highlight focuses on the design and manufacturing of pressure testing equipment and fluid control testing systems, supporting both standard models and project-based configurations.
- Más de 16 años centrados en equipos de pruebas de presión y sistemas de refuerzo neumático
- Capacidad de producción anual: más de 1.000 equipos
- Más de 8000 clientes atendidos
- Un sólido equipo de ingeniería para la configuración del banco de pruebas, la adaptación de los dispositivos y la asistencia técnica.
- Implantación de la gestión de calidad basada en ISO9001 y proceso de fabricación estable
- Export support experience for international buyers with technical communication and documentation
Water Circuit and Pressure Supply Logic
- Low-pressure water filling: The low-pressure pump is a self-priming, high-flow filling pump with a full-load pressure of 0–1.6 MPa.
- High-pressure boosting: The high-pressure pump is driven by a 4–7 bar pneumatic system, with a pressure range of 1.6–40.0 MPa.
- No auto-stop: After reaching the required test pressure, the system does not stop automatically.
- Circulation & protection: A bottom circulation tank is equipped; rust inhibitor (powder) can be added to reduce corrosion of the tested valve and pipelines.
- Hold-time alarm: When the set pressure-holding time is reached, an audible and visual alarm is triggered.
