MHV-VD100/64-S Banco de pruebas de válvulas de presión superior vertical con inclinación y pruebas sumergidas

Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas
Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas
Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas
Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas
Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas
Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas

introducción del producto

The MHV-VD100/64-S Vertical Top-Press Valve Test Bench is a dedicated valve pressure testing system designed for workshop and inspection use. It features a vertical top-press clamping structure and an integrated flip-type sedimentation water tank, enabling efficient hydrostatic testing and sealing verification with convenient water circulation and sediment removal.

This valve test bench is suitable for testing DN15–DN100 valves, supporting multiple pressure classes and stable testing performance for routine quality inspection and maintenance applications.



Solicitar presupuesto

Descripción del producto

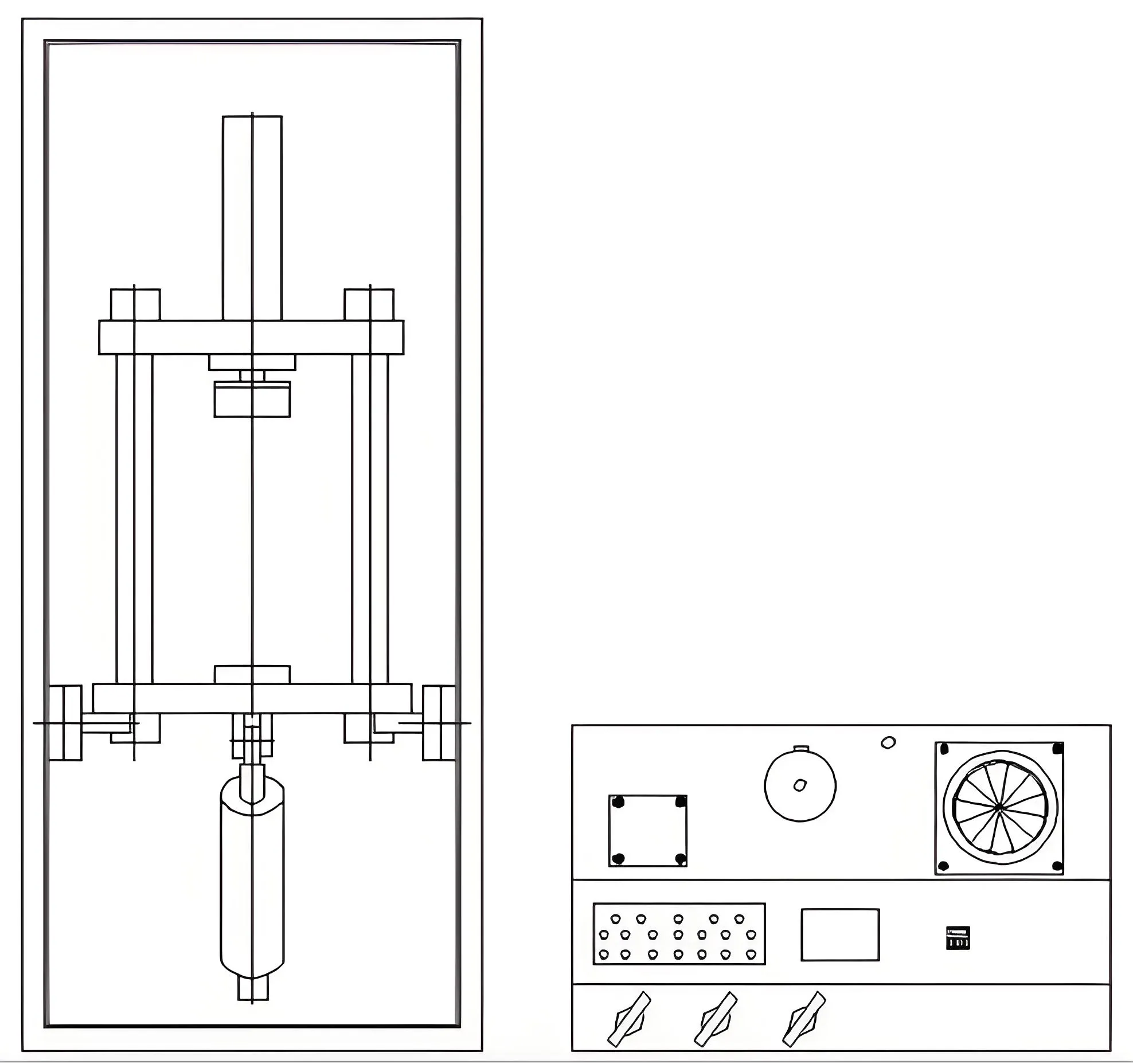

This system adopts a vertical top-press (top-loading) clamping design, which minimizes valve structure limitations and improves positioning efficiency. The bench integrates hydraulic power, electrical control, and high/low pressure test pressure supply, forming a complete valve test station.

A key feature of this model is the flip sedimentation tank, which supports water-based testing. Sediment settles in the tank, and the flip structure makes cleaning and maintenance easier—helping keep the test medium cleaner and improving long-term stability in continuous testing environments.

The test bench is designed as an integrated unit, supporting common valve sealing and strength test workflows while keeping operation clear and controllable.

Banco de Pruebas de Válvulas Vertical MHV-VD100/64-S con Pruebas Sumergidas e Inclinadas



Artículo Especificación
Nombre del producto Vertical Top-Press Valve Test Bench (Flip Sedimentation Tank Type)
Modelo MHV-VD100/64-S
Gama de tamaños de válvula 15–100 mm (DN15–DN100)
Presión máxima de ensayo 64 MPa
Medio de Prueba Water (with sedimentation tank & circulation concept)
Estructura Vertical top-press clamping

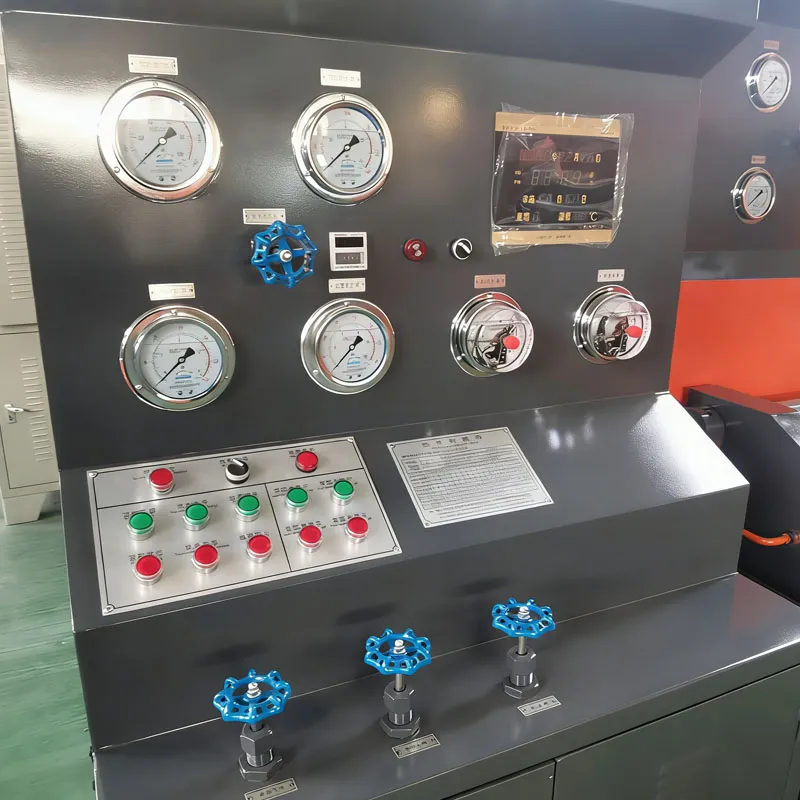

System Type Integrated valve testing station with hydraulic + electrical control



Tamaño de la válvula Rango de presión nominal Rango de presión de prueba
DN15–DN50 1.6 – 42.0 MPa 1.6 – 64.0 MPa
DN65 1.6 – 25.0 MPa 1.6 – 37.5 MPa
DN80 1.6 – 16.0 MPa 1.6 – 24.0 MPa
DN100 1.6 – 10.0 MPa 1.6 – 15.0 MPa

Características y funciones del producto

  • Vertical top-press clamping structure
    Supports valve testing with good adaptability and stable positioning.
  • Flip sedimentation water tank
    Designed for water testing workflows and easier sediment cleaning/maintenance.
  • High/low pressure test capability
    Supports different valve nominal pressure ranges and corresponding test pressure ranges for DN15–DN100.
  • Integrated station design
    Combines hydraulic unit, test circuit, and control system into a practical workshop solution.
  • Suitable for multiple valve sealing/strength requirements
    Designed to support common industrial valve inspection needs.



Ventajas del producto

  • Efficient valve positioning and clamping
    Vertical top-press layout improves handling convenience for DN15–DN100 valves.
  • Cleaner water test management
    Flip sedimentation tank design helps control sediment accumulation and simplifies cleaning.
  • Wide pressure class coverage within DN15–DN100
    Different valve sizes support different rated pressures and test pressure ranges (see table).
  • Workshop-friendly integrated system
    A practical solution for valve factories, maintenance stations, and inspection workflows requiring repeatable valve pressure testing.



La fuerza de nuestra empresa

Highlight is focused on pressure testing equipment and pneumatic boosting systems with long-term engineering experience and export capabilities. Our strength supports reliable delivery and long-term service for industrial buyers:

  • 16+ years focused on pressure testing and boosting equipment
  • Annual output capacity: 1000+ sets of equipment
  • Más de 8000 clientes atendidos
  • ISO9001 quality management implementation and CE compliance capability (company level)
  • Patents and engineering team with 10+ years average experience
  • Experienced in supporting international buyers with technical communication and system configuration support

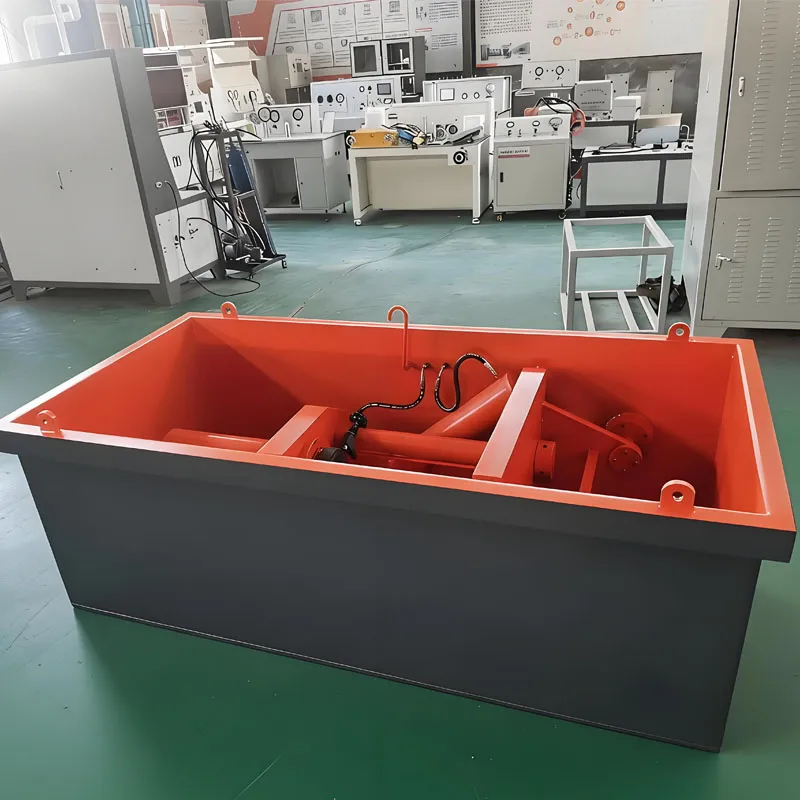

Water Tank Circulation and Maintenance Concept

This model is equipped with a flip-type sedimentation water tank, which is designed to support practical water testing workflows:

  • Sedimentation handling: During repeated water tests, impurities can settle in the tank. The sedimentation structure helps separate sediment from the circulation path.
  • Flip cleaning design: The flip structure makes cleaning and maintenance more convenient, reducing downtime and improving long-term usability.
  • Workshop suitability: This approach is particularly useful for valve factories or inspection stations performing frequent hydrostatic testing.
