Banco di prova per valvole di sicurezza containerizzate serie MAQ

Caratteristiche e funzioni del prodotto

The MAQ-300/40-70-4BN-C Containerized Safety Valve Test Bench is designed with the following functional characteristics based on the latest product data:

• Containerized integrated station for mobile deployment and centralized equipment arrangement
• Suitable for direct spring-loaded and pilot-operated safety valve testing
• Wide valve size range from DN15 to DN300
• Hydraulic automatic clamping structure for large-diameter valve testing
• DN125 hollow clamping cylinder with clamping oil pressure range of 0–25 MPa
• Maximum calibration pressure up to 40 MPa for gas and 70 MPa for liquid
• Maximum clamping force up to 275 kN
• Working media include clean air, nitrogen, and pure water
• Pneumatic boosting system raises 0.6–0.8 MPa inlet air to 40 MPa for testing use
• Built-in gas storage arrangement for practical calibration operation
• Equipped with threaded and flanged safety valve connection sets
• Precision pressure gauge arrangement for pressure identification and judgment
• Ergonomic operating layout for clamping, operation, observation, and recording work

These functions make the system suitable for both standard calibration work and more demanding large-size safety valve testing applications.

Vantaggi del prodotto

• Containerized all-in-one design makes transportation, installation, and field deployment more convenient
• Integrated gas source, calibration unit, and working area improve operational efficiency
• Wide application range from DN15 to DN300 supports both medium and large safety valves
• Gas and liquid testing capability allows broader calibration use across different working conditions
• High clamping force structure provides reliable holding capacity for large-diameter valves
• Hydraulic automatic clamping improves operating efficiency and clamping consistency
• Compatible with standard, non-standard, and imported API safety valves
• Centralized control console helps improve operation convenience and test management
• Reduced pressure loss design helps maintain smoother gas flow and more accurate testing data
• Modular design concept leaves room for future expansion based on project needs

I Vantaggi della Nostra Azienda

Highlight si concentra sul design e sulla produzione di attrezzature per prove di pressione e sistemi di controllo fluidi, supportando sia modelli standard che personalizzazioni basate su progetti.

• Oltre 16 anni focalizzati sulle attrezzature per prove di pressione e sistemi di potenziamento pneumatico
• Capacità produttiva annuale: oltre 1000 set di attrezzature
• Oltre 8000 clienti serviti
• Implementazione della gestione della qualità basata su ISO9001 e controllo di produzione stabile
• Forti team ingegneristici per la configurazione del banco di prova, abbinamento dei dispositivi e supporto tecnico
• Esperienza nell'esportazione che supporta acquirenti internazionali con comunicazione tecnica e documentazione

Standard Configuration

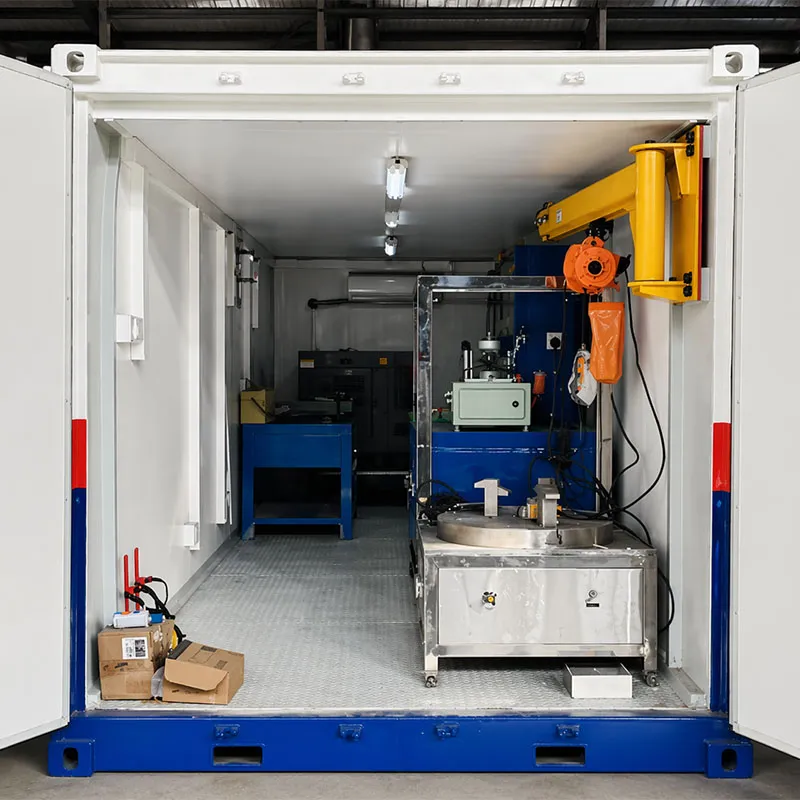

The standard configuration of the MAQ-300/40-70-4BN-C Containerized Safety Valve Test Bench includes the following main parts:

• Container
• Workbench with vise
• Cantilever jib crane
• Safety valve operating console
• Safety valve clamping bench
• DN300 safety valve clamping seat
• Integrated control console
• Nitrogen cylinder group
• Air compressor
• Air conditioner
• Precision pressure gauges
• Threaded safety valve connection sets
• Flanged safety valve connection sets

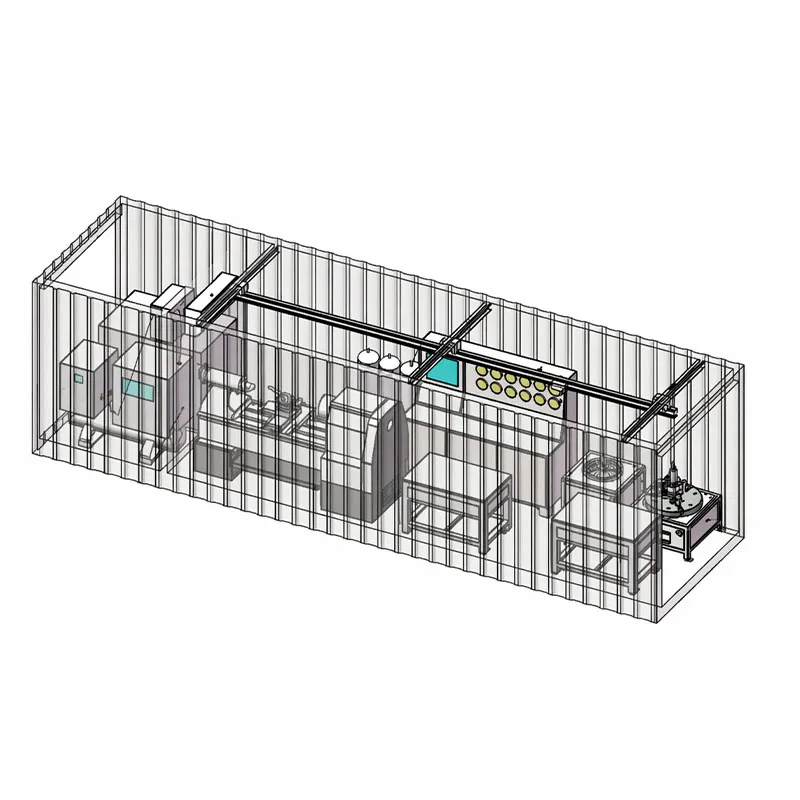

This configuration reflects the product’s containerized integrated design concept, where the calibration unit, gas source system, operating platform, and auxiliary devices are organized into one complete testing station.
